Roton 750-134 Continuous Hinge, Concealed Leaf 1 3/4" Interior Wood Door

ROTON 750-134 is a Standard Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves.  It is designed for medium frequency 1-3/4" solid core wood interior doors up to 100 lbs.  Available in a choice of lengths.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      HG750-134_002378
    • Market price:$210.08
      • save 35%
    • Starting price: Price: $136.55 per item

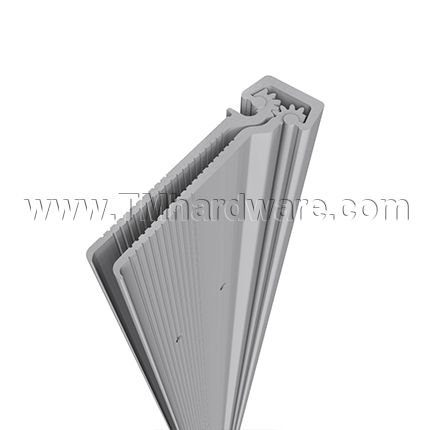

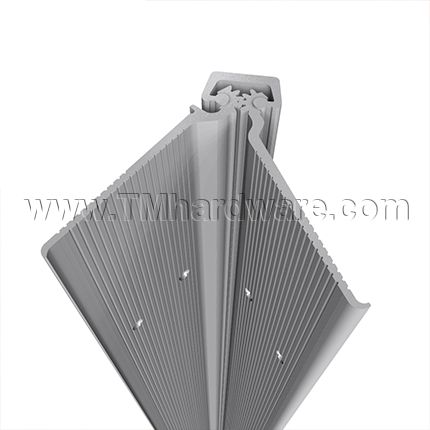

    Roton 750-134 continuous geared, standard-duty concealed leaf hinge by Hager companies.

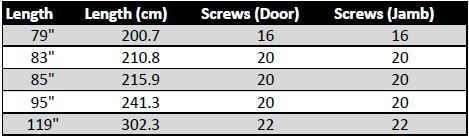

    Available in five sizes: (chart) For 119" Length, please contact us or call 845-388-1200 as Freight Shipping Charges may apply.

    Product Specs for Roton 750-134 Continuous Hinge

    Materials: Constructed from low temperature, corrosion resistant aluminum.

    Finish: Clear anodized aluminum

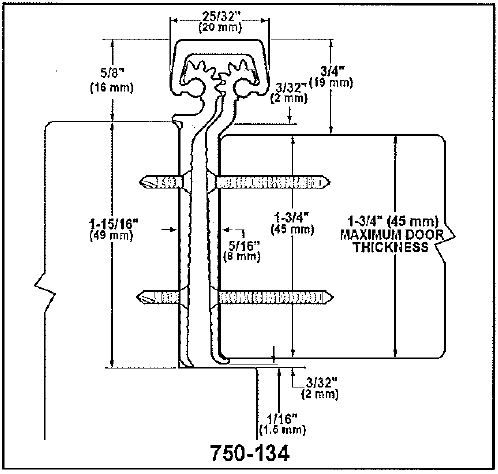

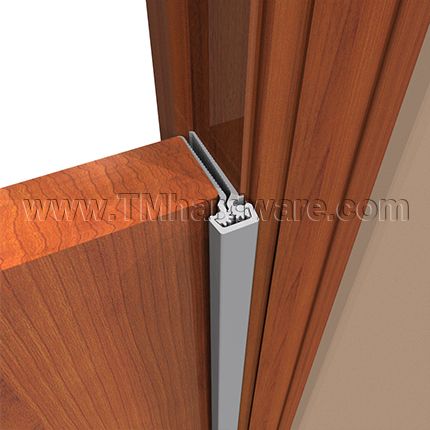

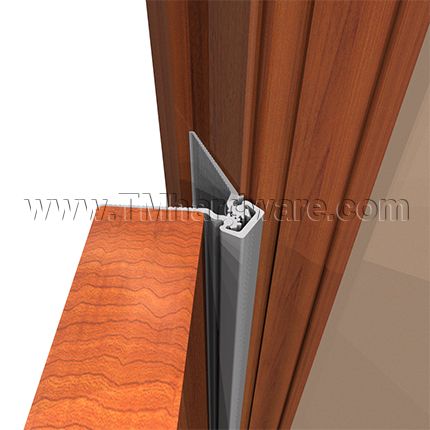

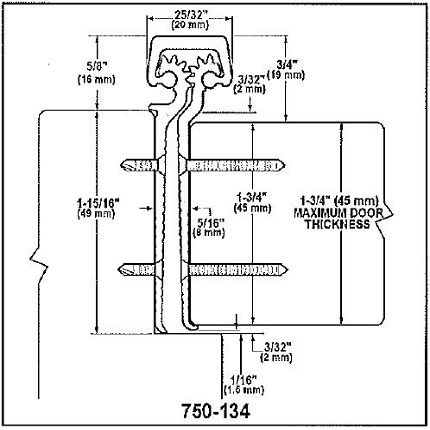

    Design: Concealed leaf with door edge protection lip.  Offset joint to clear casing.  Leaves are concealed between the rabbet of the frame and the hinge edge of the door (see Product Data Tab.)

    Clearance:  5/16" hinge side, plus standard lockside clearance.

    Fasteners:

    • #12-14 x 1 1/2" Flat Head Sheet Metal Screws for metal doors
    • #12-24 x 1-1/2" Flat Head Self-Drill Screws for metal doors

    Applications:  For sheet metal or wood applications.  1 3/4" interior wood door thickness.

    Installation:  Alignment ribs for easy installation and proper hinge location.  Installation screws provided (see Installation Tab)

    Additional Options:  Including specialty cover channels, top bearing, hospital tip and customize hole patterns may be ordered, for details and pricing please contact us or call our office at 845-388-1300.

    Priced per piece

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click here to view our Roton 750-138 Continuous Geared Concealed Leaf Hinge.

    This product has a lifetime warranty against defects in workmanship and material.
    Click here to view our Full Warranty Policy.

      • SKU
        HG750-134_002378
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      750-134
    • Door Type
      Metal Door (Standard), Wooden Door
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28)

    Installation:

    This model provides a 3/32" door inset. The 750-134 can be used with any standard frame without hinge preps and either with or without reinforcements depending on door weight. Clearance required between the hinge edge of the door and the frame rabbet is 5/16" minimum.

    Hinge Length:

    All ROTON Hinges are supplied approximately 1" to 1 5/16" shorter than the nominal door height to avoid threshold or carpet clearance problems. If the hinge must be trimmed shorter, first determine the correct hand of the door and the orientation of the hinge. Then mark and trim from the bottom of the hinge only-do not cut from the top end.

    General Fitting Procedure:

    For new construction with metal door frames: To accommodate the 5/16" hinge clearance required for these ROTON models, order the door undersize or the framed header oversized. See the clearance information above to attain the proper size. Mortar guards, either styrofoam or wood, are recommended for frames to prevent grout from interfering with the installation of the hinge fasteners.

    For new site hung wood doors: If necessary, scribe and cut from the latch edge of the door to leave sufficient hinge stile thickness for proper fastening. A minimum clearance of 5/16" is required between the hinge edge of the door and the frame rabbet. See the clearance information above to obtain the proper finished width of the door.

    For remodeling with existing wood or laminate doors: If necessary, scribe and cut from the hinge edge of the door and plane smooth. a minimum clearance of 5/16" is required between the hinge edge of the door and the frame rabbet. See the clearance information above to obtain the proper finished width of the door.

    Frame Preparation:

    1. With the hinge open, place the hinge frame leaf against the frame rabbet making certain that the alignment rib is flush against the frame face along its entire length. Position the top of the hinge 1/16" below  the header. Note: A 1/16" shim is recommended due to initial settling of the bearings.

    2. Mark and center punch the screw hole locations. Accurate locations is important for proper installation.

    3. For metal frames 12 gauge or less it is not necessary to pre-drill pilot holes is using the self-drilling screw provided. For metal frames thicker than 12 gauge drill and tap all mounting holes for #12-24 threads prior to installing the screws. For wood frames, pre-drill pilot holes using a #18 bit or optional #12 wood screws.

    4. Do not attach the hinge to the frame at this time.

    Door Preparation:

    1. With the hinge open, place the hinge door leaf against the edge of the door making certain that the door alignment rib is flush against the door face along its entire length. Position the top of the hinge flush with the top of the door.

    2. Mark and center punch the screw hole location. Accurate location is important for proper installation.

    3. For wood doors, pre-drill pilot holes using a #18 bit for the #12 wood screws provided.

    For hollow metal doors 12 gauge or less, it is not necessary to pre-drill pilot holes if using the optional self-drilling screws. For metal doors thicker than 12 gauge, drill and tap all mounting holes for #12-24 threads prior to installing the screws.

    4. Attach the hinge to the door. For wood doors, use the #12 wood screws provided. For metal doors, use the optional #12 self-drilling screws (recommended driver speed 1,900-2,500 RPM.)

    Hanging the Door:

    1. Position the door (with hinge attached) at 90 degrees to the frame. Attach the hinge to the frame rabbet. For metal frames, use the #12 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM). For wood frames, use optional #12 wood screws.

    2. Make a gentle trial swing. Carefully check the door for proper swing and clearance.

    Adjusting the Door:

    1. If lateral adjustment of the door is required due to excessive or uneven door/frame clearance, adjust by shimming where needed:

    a. For minor adjustments, an effective shimming material is 1 1/2" cloth duct tape. Apply the tape in stepped layers underneath the frame leaf where needed to build up to the desired thickness.

    b. To shift the entire door, a thin continuous aluminum strip may be used underneath the fram leaf (available in 1/16" and 1/8" thickness from HAGER).

    2. Retighten all screws. Carefully check the door for proper swing and clearance.
