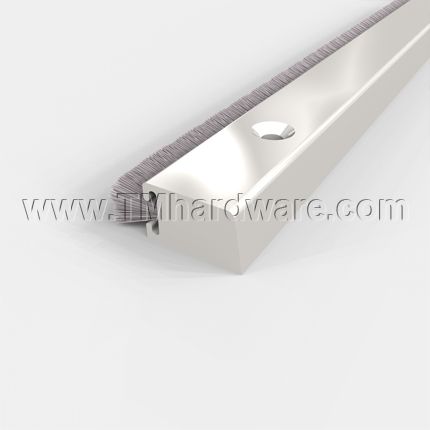

Pemko #184P Threshold Stop Strips, Aluminum with Pile Brush Seal, .875” W, .375” H

Stop Strips are often used with standard saddle thresholds or floor plates to provide a door stop and seal at the bottom of the door. These .875” wide Stop Strips are made of strong aluminum casing and a durable pile brush seal.  Fire and air infiltration rated. Length is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PK184AP
    Call for price!
    845-388-1300

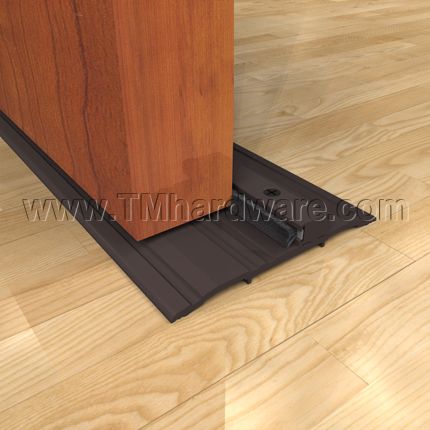

    Threshold Stop Strips can be installed on top of standard saddle thresholds and floor plates to improve the sealing efficiency of a door. The pile brush seal inhibits the infiltration of drafts, fire, sound, light, moisture, and insects under the door. These strips also provide door stop for the door to close against. In addition, installing these stop strips on a flat utility saddle is a cost effective way to create a rabbeted threshold / bumper threshold without replacing the original threshold. Fire and air infiltration rated.

    Key features of this product include:

    Dimensions: The aluminum casing measures .625” wide with the pile bush seal extending an additional .25”, totaling .875" wide (see product specs). The strip is .375” tall.

    Energy Conservation: A proper door seal prevents the passage of outside drafts beneath the door, which significantly reduces energy waste and lowers the cost of cooling and heating.

    Aluminum Finish: Available in aluminum mill finish and dark bronze anodized aluminum.

    Seal: The durable pile brush seal will conform to all surfaces, making it an excellent product to seal almost any opening using a minimal compression.

    • Fire-rated
    • Stop Strips improve weather seal
    • Strong Aluminum casing
    • Available in aluminum mill finish and dark bronze anodized aluminum
    • Durable pile brush seal
    • Length is custom cut to size

    Installation guide and screws provided. Screws are colored to blend unobtrusively with casing

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

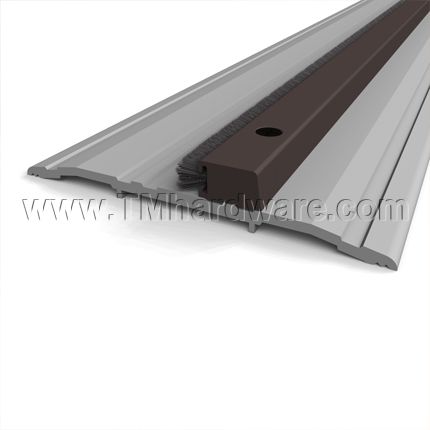

    For a utility threshold such as the one in the detailed images, see our Utility Threshold, 4" Aluminum or Bronze with .25" Height

      • SKU
        PK184AP
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      184_P
    • Dimensions
      • Overall Height
        .375" Height
      • Overall Width
        .625" Width
      • Threshold Length
        Custom Cut to Size
    • Product Design
      • Flat Saddle Design
        Smooth Top Design
      • Threshold Type
        Threshold Stop Strip
      • Seal Type
        Pile Brush Seal
      • Material
        Aluminum
    • Installation
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Fire Rated, ADA Compliant
      • Warranty
        5 Year Limited Warranty

    Click to Print

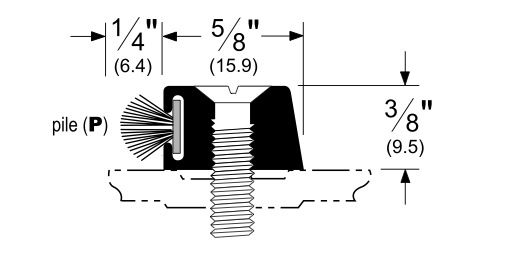

    P184P Product Specs:

    Click to Print

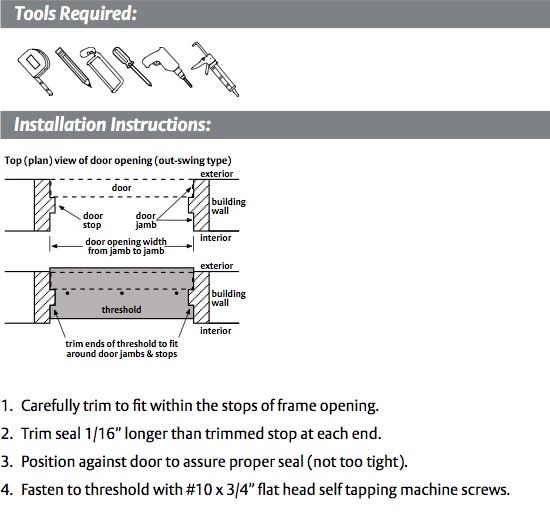

    P184P Installation Guide:

    Click to View Ratings Explained



    Finishes Comply with the Following ANSI / BHMA Codes:

    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
