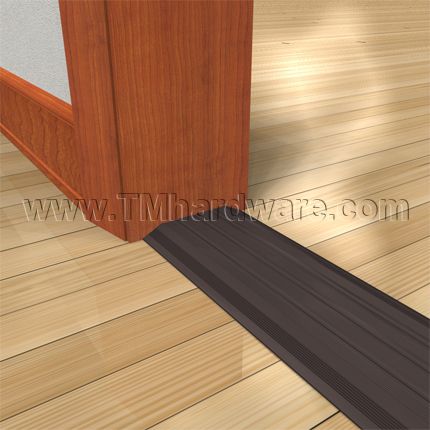

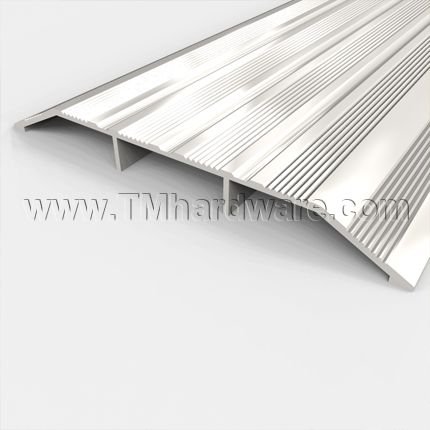

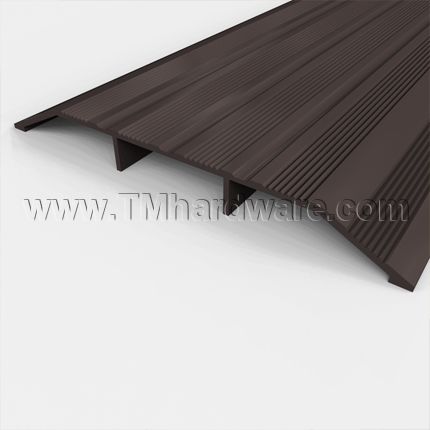

Pemko #1710 Utility Threshold, 5" Thin Aluminum, .5" Height
This ADA compliant 5" wide Saddle Threshold is extruded from high quality aluminum, providing long lasting superior performance. It has a height clearance of .5" which aids in insulating a room and creates a smooth transition between two floor surfaces. Available in two aluminum variations and length is custom cut to size.
PRICED PER FOOT.
Threshold is designed for applications with low to medium frequency usage.
Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)
Finishes: Available in various different finishes; choose for the dropdown options above.
Installation: Installation instructions and screws provided. Screws are colored to coordinate with door hardware. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Threshold is drilled along the center line
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For a thicker, more heavy duty model see our 5" Aluminum or Bronze Utility Threshold, .5" Height.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN1710

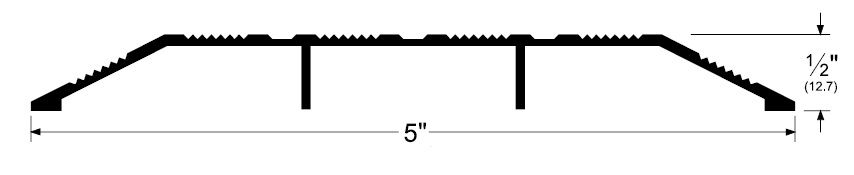

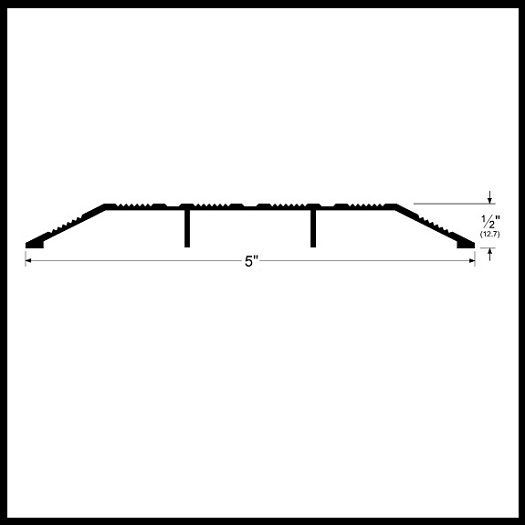

- Dimensions
-
Overall Height.5" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilled along the center line
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Oil Rubbed Bronze, Equiv. (10BE)
-
- Compliance Details
-
Compliance DetailsADA Compliant
-
Warranty5 Year Limited Warranty
-
