Pemko #254x5FG Utility Threshold, 9.125" Aluminum or Bronze with Thermal Break, .5” H
This ADA compliant Saddle Threshold is made of high quality extruded aluminum or bronze, and provides long lasting superior performance. It is 9.125” wide, and has a height clearance of .5". A thermal break in the center of the threshold inhibits the passage of heat or cold through the metal. Available in various different finishes. Length is custom cut to size.
PRICED PER FOOT
The threshold is fitted with a black rigid polypropylene break which reduces heat loss and prevents frost build up on the interior surface of the saddle.
Finishes: Various different finishes available; choose from the dropdown options above. (Oil Rubbed Bronze can also be purchased through our office for an additional 40% of standard bronze mill finish price)
A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color with time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.
Installation: Installation instructions and screws provided. Screws are colored to blend unobtrusively with door hardware. If the threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Threshold requires two rows of fasteners for installation. Drilling holes will be applied to the centerline of each saddle piece for easy installation.

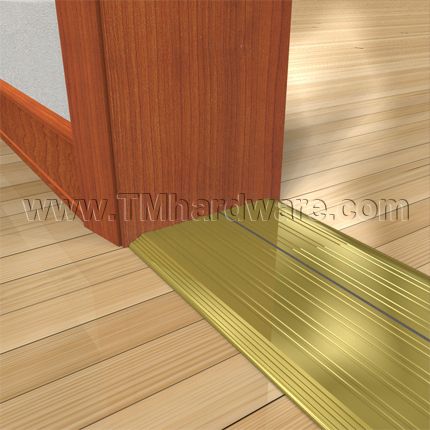

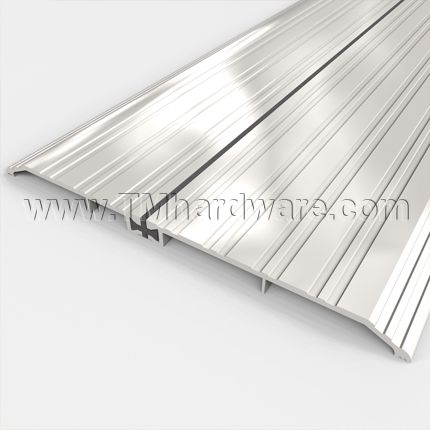

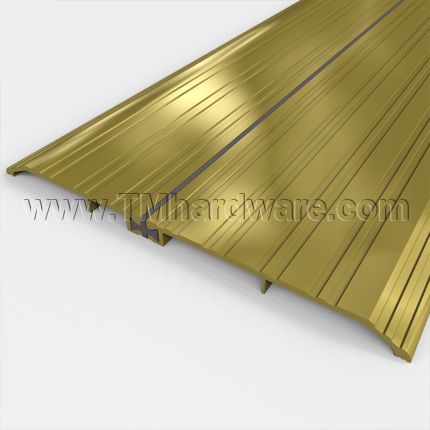

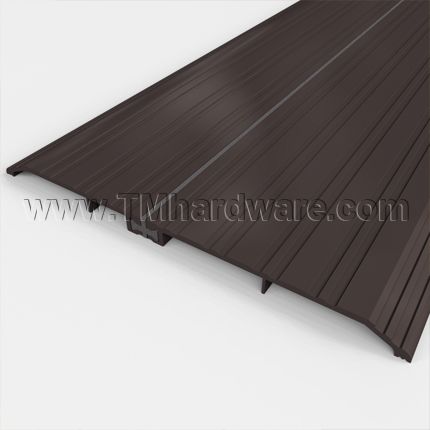

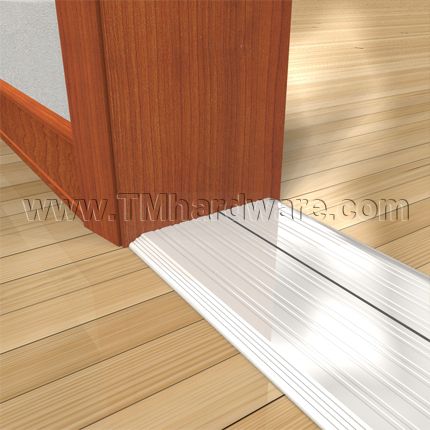

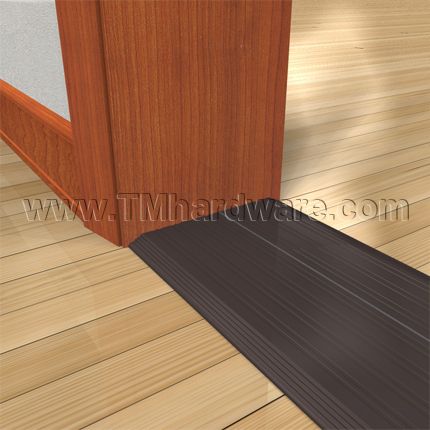

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For a threshold with a 7.125" width span, see our Utility Threshold, 7.125" W Bronze and Aluminum Anodized with .5" Height.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN254x5FG

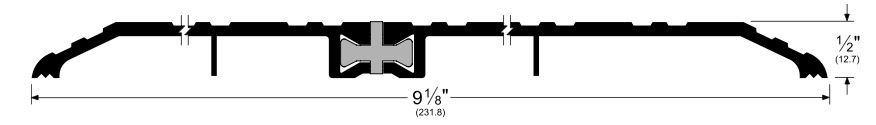

- Dimensions
-
Overall Height.5" Height
-
Overall Width9.125" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum, Brass
-
- Installation
-
Drilling HolesDrilled along the center line
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Bronze Mill Finish (Brass), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsFire Rated, BHMA Certified, ADA Compliant
-
Warranty5 Year Limited Warranty
-
