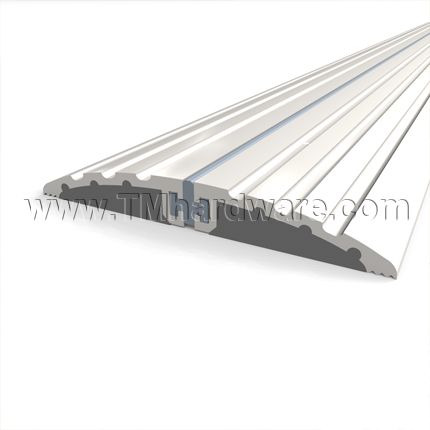

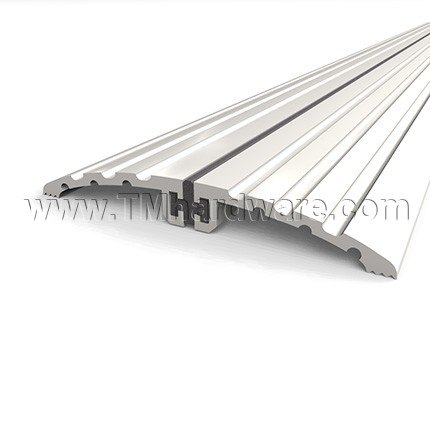

Zero #624 Utility Threshold, Aluminum 4" with Thermal Break, .5" (H)

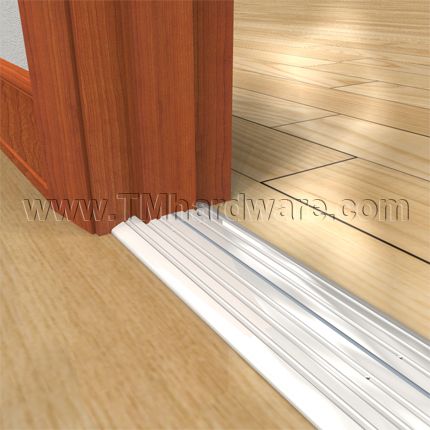

This Zero #624 doorway threshold is fitted with a PVC Thermal Break which reduces heat loss and prevents frost build up on the interior surface of the saddle. It is compatible with wheelchair use. Comes in a variety of finishes and is custom cut to size.
PRICED PER FOOT
This thermal Break Threshold is fitted with a PVC break which reduces heat loss and prevents frost build up on the interior surface of the saddle.
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: This product is drilled at standard factory locations.
Additional Options:
- Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
- Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerZero International
-
MPN624

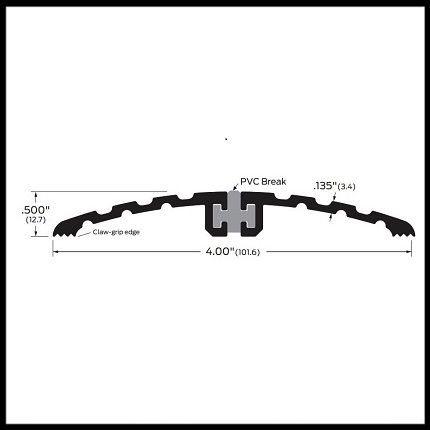

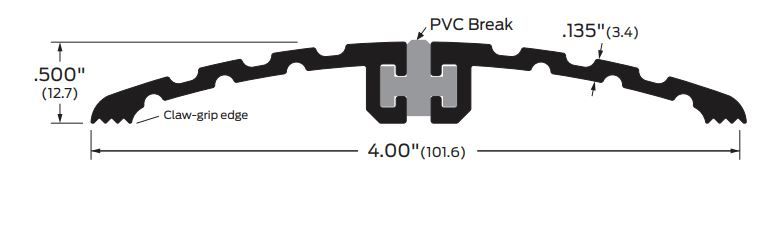

- Dimensions
-
Overall Height.5" Height
-
Overall Width4" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.135" Thick
-
- Product Design
-

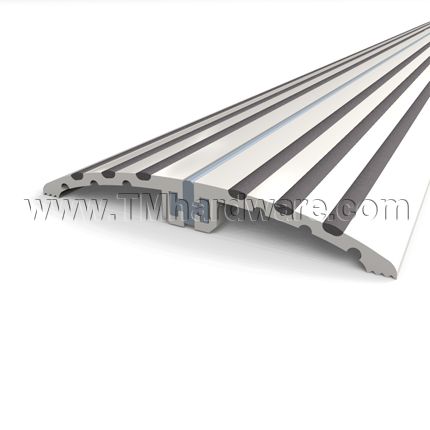

Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeThermal Break Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Flat Black (US19)
-
- Compliance Details
-
Compliance DetailsFire Rated, ADA Compliant, BHMA Certified
-
ANSI DesignationJ32139, J32239
-
Warranty1 Year Limited Warranty, 5 Year Limited Warranty
-
