Pemko #573x5FG Utility Threshold with Flexible Joint for Uneven Surfaces, 10.25" Aluminum, .25" Height

Pemko #573x5FG Utility Threshold with Flexible Joint for Uneven Surfaces, 10.25" Aluminum, .25" Height
Pemko Manufacturing

This commercial grade aluminum threshold with a flexible joint allows the threshold to flex up to 20° upward or downward, or to expand up to an additional .25". Ideal for uneven floor surfaces, or building components that expand or contact. Joint is made of thermoplastic elastomer that adds additional thermal barrier. Available in three finishes, including non-slip and is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PK573x5AFG
    • Market price:$131.84
      • save 10%
    • Starting price: Price: $118.66 per foot


    Design: Threshold is fitted with a flexible joint allows the threshold to flex up to 20° upward or downward, or to expand up to an additional .25" (1/4").

    Ideal Applications:

    • Uneven floor surfaces
    • Building components that expand or contract, i.e. expansion joints
    • Components that move slightly, i.e. a floating ramp

    Thermal Feature: Flexible joint is made from a thermoplastic elastomer which creates a thermal barrier and prevents heat from being transferred from one side of the threshold to another.

    Width: Ranges from 10" - 10.25" (10-1/4")

    Height: .25"

    Length: Custom cut to size up to 104". Larger sizes up to 185" can be purchased through our office.

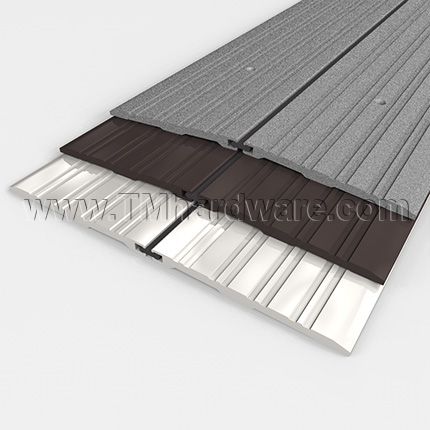

    Finishes: Available in Aluminum Mill Finish, Aluminum with PemKote Non Slip Finish, Dark Bronze Anodized Aluminum.

    PemKote™ Non-Slip surface is a rugged abrasive finish of nickel-aluminum composite. It is an aesthetically pleasing skid resistant coating with extremely high bond strength and excellent resistance to oxidation. It provides safety in environments used by youths and people with disabilities. It is particularly recommended for thresholds placed in exterior conditions where moisture may be present.

    Compliance Details: ADA Compliant, Non-Slip (only for PemKote). Pending UL Fire Rating and BHMA Certification.

    Installation: Installation Guide and screws provided. Screws are colored to coordinate with threshold finish. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a  year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See all our Thermal Break Thresholds.

      • SKU
        PK573x5AFG
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      573x5FG
    • Dimensions
      • Overall Height
        .25" Height
      • Overall Width
        10.125" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .375" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Flat Utility Threshold, Thermal Break Threshold
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Aluminum PemKote™, Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to View Ratings Explained

    Compliance Details for Pemko 573x5FG Aluminum Threshold with Flexible Joint

    Finishes Comply with the Following ANSI / BHMA Codes:

    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
