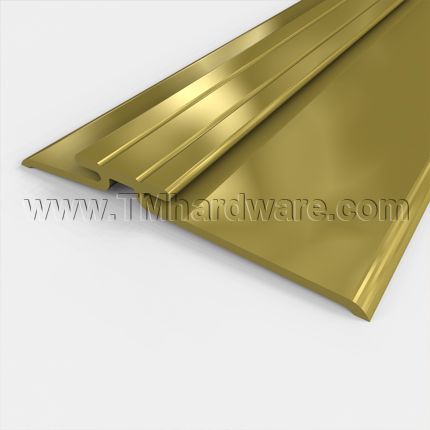

Pemko #114 Interlocking Threshold, 4.25" W Aluminum or Bronze, .5” H

This extra wide Residential Interlocking Threshold Set creates a barrier against water infiltration by latching with an Interlocking J Hook (provided) installed on the under- side of the door. Available aluminum mill finish, bronze mill finish, and two anodized finishes to complement room decor. Custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PK114A
    • Market price:$17.80
      • save 10%
    • Starting price: Price: $16.02 per foot


    This Interlocking Residential Threshold set  for inswing or outswing doors is designed to seal the air- gap beneath external doors.

    Width: 4.25" (4-1/4")

    Height: .5" (1/2")

    Length: Custom cut to size up to 104" (larger sizes can be purchased through our office)

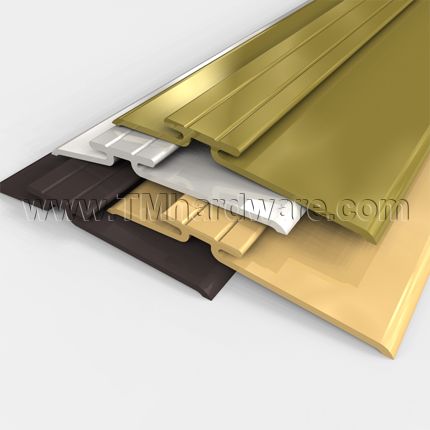

    Finishes: Available in three aluminum variations and bronze mill finish (Oil rubbed bronze can also be purchased for an additional 40% of standard bronze pricing)

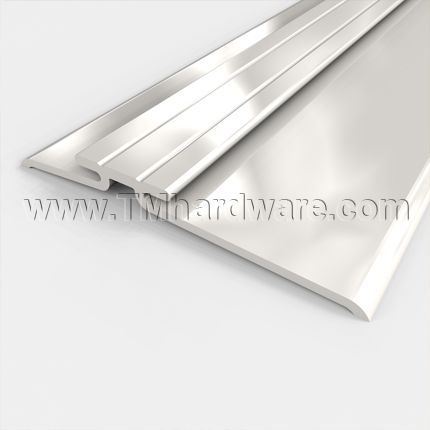

    A Note on FinishesAluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.

    Compliance Details: BHMA Certified

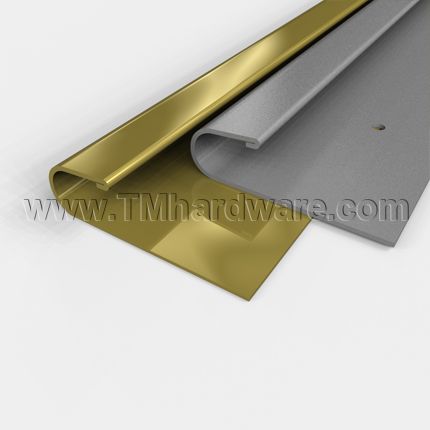

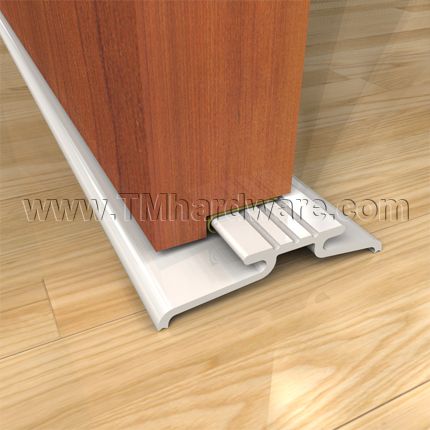

    Interlocking HookInterlocking J Hook is provided. Designed to be nailed to the underside of the door or installed in the rabbet of the door.

    Additional Interlocking Options: Also compatible with Surface Mounted Interlocking Angles and Under-side of Door Mount Interlocking Angles made by Pemko (Product number begins with a “P”.)

    InstallationInstallation guide and screws provided. Screws are colored to coordinate with casing. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold is supplied drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

     Need an interlocking threshold with a water return design? Check out our Residential Threshold, 4.8" Interlocking Aluminum or Bronze with Water Return, 1" H.

      • SKU
        PK114A
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      114
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        4.25" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Heigth
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Interlocking Threshold
      • Material
        Aluminum, Bronze
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish

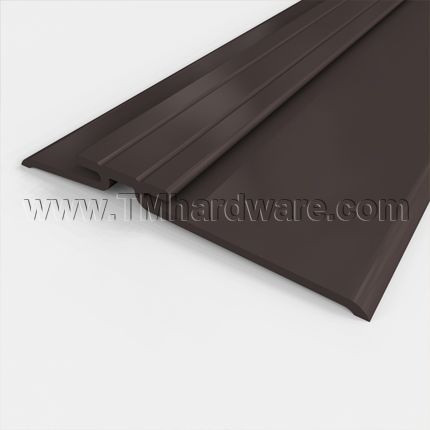

        Mill Finish Aluminum (US27), Bronze Mill Finish (Brass), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to Print

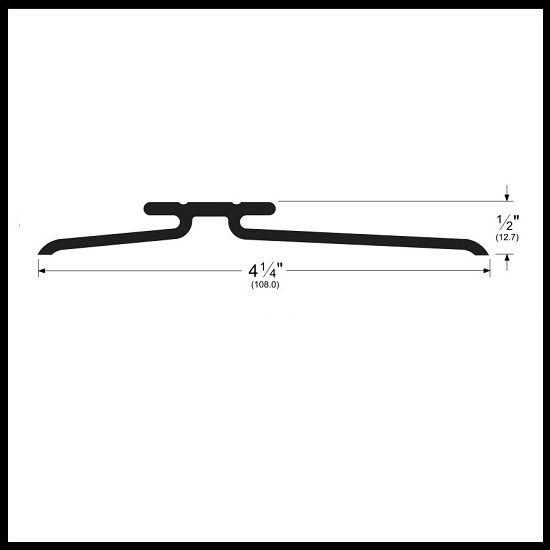

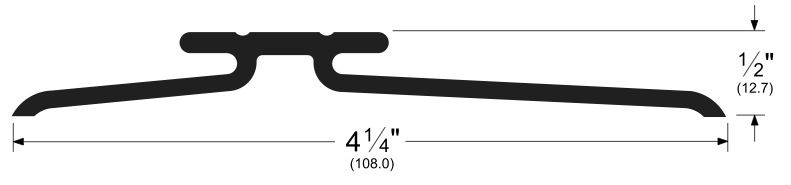

    P114 Product Specs:



      Interlocking Threshold                                                             J-Hook

    Click to Print

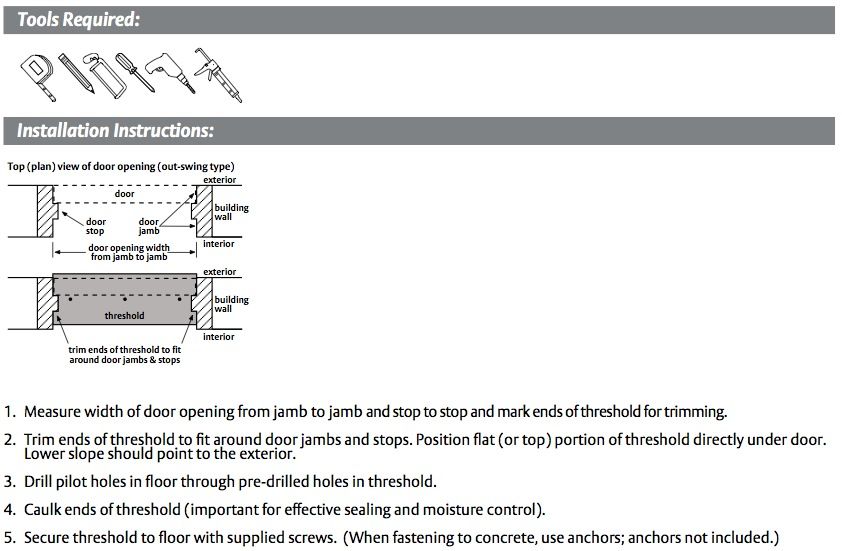

    P114 Installation Guide:

    Click to View Ratings Explained



    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719
    • Bronze Mill Finish (Brass) - US4 / 720
    • Dark Bronze Anodized Aluminum - US10B / 710

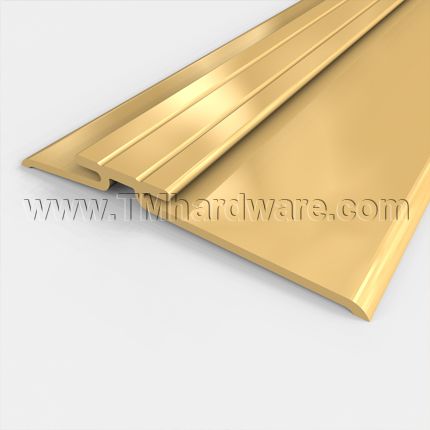

    • Gold Anodized Aluminum - US4 / 688
