Accentra 4602LN Privacy Lever, Grade 2 - Custom Options

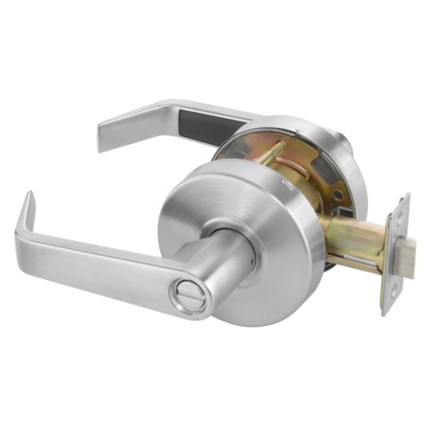

Accentra 4602LN Privacy Lock, Augusta Lever, Satin Chrome 626
Accentra

Accentra (Formerly Yale) 4602LN Cylindrical Privacy Lever for Bathrooms and Bedrooms is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economic price. The 4602LN is certified to ANSI/BHMA Grade 2 standards and is UL-Fire Rated.

Large selection of finishes and trims available.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      5 lbs
    • SKU
      YL-AU-4602LN-626
    • Market price:$158.73
      • save 35%
    • Starting price: Price: $103.17 per item


    Accentra 4602LN Cylindrical Privacy Lever for Bathrooms and Bedrooms are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economic price.

    See Accentra 4600 Series Grade 2 Locks Full Catalog.

    4602LN Function - Privacy, Bedroom or Bathroom Locks:

    • Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
    • Button automatically releases when inside lever is turned or door is closed.
    • Emergency release in outside lever.
    • Inside lever always active.

    Benefits:

    • Versatile: Field reversible and other product options available to suit all applications.
    • Economical: Priced affordably for projects of all budgets
    • Secure: Quality security from a trusted brand for over 170 years.
    • Strong and Reliable: ANSI / BHMA Grade 2 certified for long life

    Features:

    • Handing: Field reversible for ease of ordering and installation
    • Trims: selection of trims available, select above
    • Finish: selection of finishes available, select above
    • ADA Compliance: for ease of accessibility

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Additional functions are available, see our Yale  Grade 2 Augusta Lever - Custom Options

      • Weight
        5 lbs
      • SKU
        YL-AU-4602LN-626
    • QuickShip
      Yes
    • Manufacturer
      Accentra
    • MPN
      AU-4602LN; MO-4602LN; PB-4602LN; TB-4602LN
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, zinc plated, dichromated
      • Collection / Series
        Accentra 4600 Series
      • Rosette Shape
        Round
      • Lock Type
        Lever
      • Lever / Knob Style

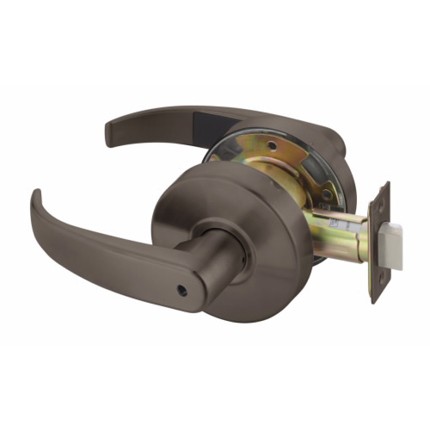

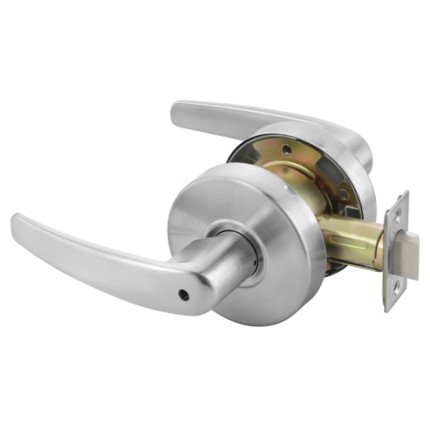

        Augusta Lever (AU), Monroe Lever (MO), Pacific Beach Lever (PB), Reflection Lever (TB)
    • Specifications
      • Backset
        2-3/4" Backset, 2-3/8" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ANSI 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Door Thickness
        1-3/8" - 1-3/4" Thick, Adjustable
      • Handing
        Reversible
      • Function
        Privacy
      • Mount Type
        Cylindrical
      • Grade
        Grade 2
      • Cross Bore
        2-1/8" Cross Bore
      • Locking Mechanism
        Push Button
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), Black Suede Powder Coat
    • Compliance Details
      • Compliance Details
        ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.115 Door Prep
      • Warranty
        3 Year Warranty

    Product Templates for Yale 4602LN Passage Lock

    Click to Print 4601LN Installation Guide
