Accentra 5402CK Privacy Knob, Carolina Knob, Grade 1 - Custom Options

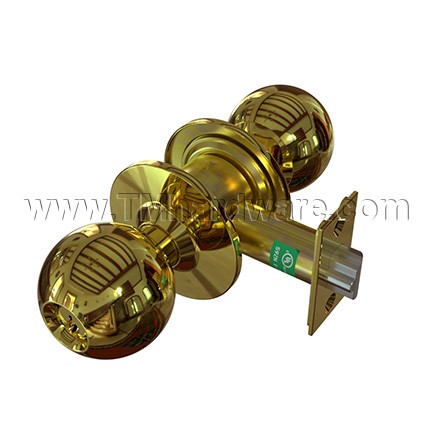

Accentra 5402CK Commercial Locks Polished Brass (US3) Finished
Accentra

Designed for industrial, commercial and institutional markets  use, the Accentra (Formerly Yale) 5402CK Cylindrical Grade 1 Privacy knob is an ideal choice for doors requiring latching without keyway. The 5402CK is certified to ANSI/BHMA Grade 1 standards and is 3 hour UL Fire Rated.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      6 lbs
    • SKU
      YL-CA-5402CK-605
    • Market price:$699.27
      • save 35%
    • Starting price: Price: $454.53 per item


    Designed for industrial, commercial and institutional markets  use, the Accentra 5402CK Cylindrical Grade 1 Privacy knob is an ideal choice for doors requiring latching without keyway. The 5402CK is certified to ANSI/BHMA Grade 1 standards and is 3 hour UL Fire Rated.

    Click here to See Accentra 5400 Grade 1 Catalog.

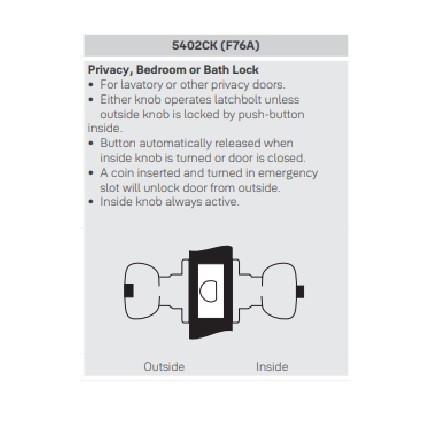

    5402CK Function - Privacy, Bedroom or Bath Lock:

    • For lavatory or other privacy doors
    • Either knob operates latchbolt unless outside knob is locked by push-button inside.
    • Button automatically released when inside knob is turned or door is closed.
    • A coin inserted and turned in emergency slot will unlock door from outside.
    • Inside knob always active.

    Features:

    • Handing: Field reversible for ease of ordering and installation
    • Finish: selection of finishes available, select above

    Specifications:

    • Backset: 2-3/4" Standard
    • Door Thickness: Adjustable from 1-3/8" to 2"
    • Handing: Non Handed
    • Latchbolt: 1/2" Throw
    • Strike: 1-1/4" curved lip for 1-3/4"

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 10years guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See also our Accentra 5401CK Passage or Closet Door Knob, Grade 1 - Custom Options

      • Weight
        6 lbs
      • SKU
        YL-CA-5402CK-605
    • QuickShip
      No
    • Manufacturer
      Accentra
    • About this Product
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, zinc plated, dichromated
      • Collection / Series
        Accentra 5400 Series
      • Lock Type
        Knob
      • Lever / Knob Style

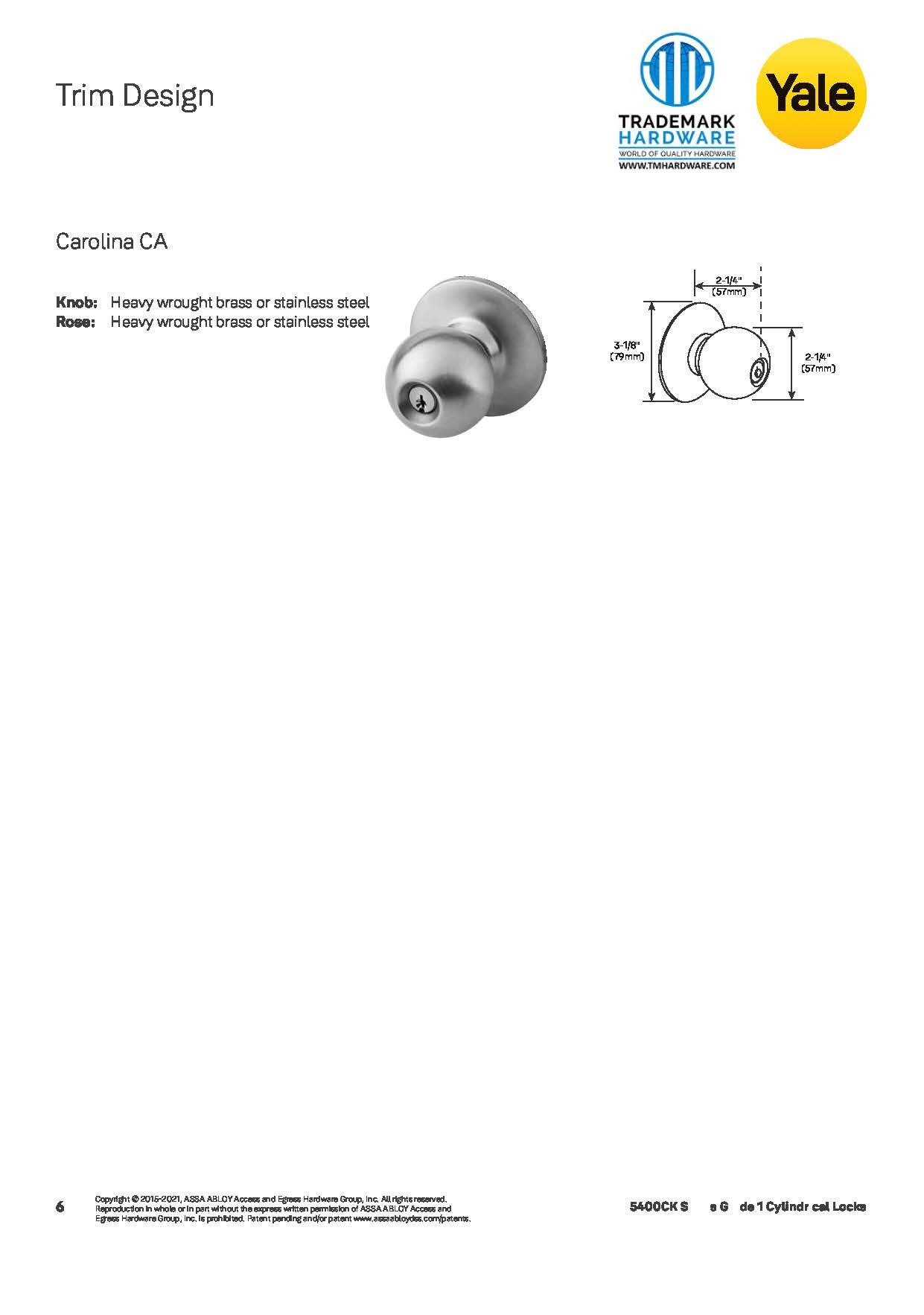

        Carolina Knob
    • Specifications
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        1-1/4" curved lip for 1-3/4"
      • Faceplate
        Square Corners
      • Bore Hole
        2-1/8"
      • Door Thickness
        1-3/8" - 2" Thick Door
      • Function
        Privacy
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
      • Locking Mechanism
        Push Button
    • Finishes
      • Finish

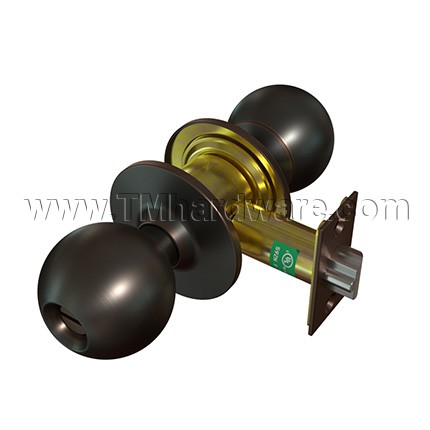

        Polished Brass (US3), Oil Rubbed Bronze, Equiv. (10BE), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.2 Grade 1, A156.115 Door Prep
      • Warranty
        10-year mechanical

    Click to Print Yale 5400 Series Product Templates

    Click to Print Yale 5400 Series Installation Guide
