Accentra 5430CK Utility, Asylum or Institutional Knob, Grade 1 - Custom Options

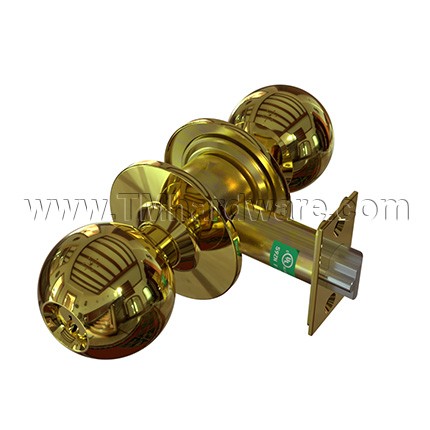

Accentra 5430CK Commercial Locks Polished Brass (US3) Finished
Accentra

Designed for industrial, commercial and institutional markets  use, the Accentra (Formerly Yale) 5430CK Cylindrical Grade 1 Utility, Asylum or Institutional Knob is an ideal choice for doors requiring locking with keyway. The 5430CK is certified to ANSI/BHMA Grade 1 standards and is 3 hour UL Fire Rated.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      6 lbs
    • SKU
      YL-CA-5430CK-605
    • Market price:$910.55
      • save 35%
    • Starting price: Price: $591.86 per item


    Designed for industrial, commercial and institutional markets  use, the Accentra 5430CK Cylindrical Grade 1 Utility, Asylum or Institutional Knob is an ideal choice for doors requiring locking with keyway. The 5430CK is certified to ANSI/BHMA Grade 1 standards and is 3 hour UL Fire Rated.

    Click here to See Accentra 5400 Grade 1 Catalog.

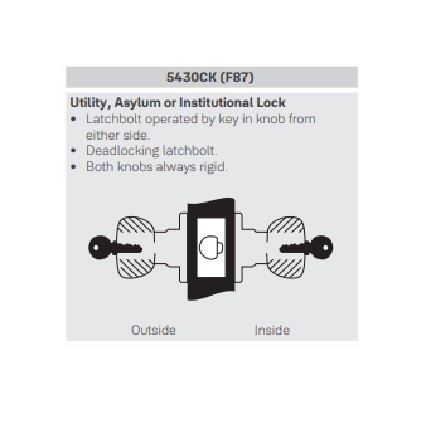

    5430CK Function - Utility, Asylum or Institutional:

    • Latchbolt operated by key in knob from either side.
    • Deadlocking latchbolt.
    • Both knobs always rigid.

    Features:

    • Handing: Field reversible for ease of ordering and installation
    • Finish: selection of finishes available, select above

    Specifications:

    • Backset: 2-3/4" Standard
    • Door Thickness: Adjustable from 1-3/8" to 2"
    • Handing: Non Handed
    • Latchbolt: 1/2" Throw
    • Strike: 1-1/4" curved lip for 1-3/4"

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 10years guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here to view our Accentra 5408CK Classroom Door Knob, Carolina Style, Grade 1 - Custom Options

      • Weight
        6 lbs
      • SKU
        YL-CA-5430CK-605
    • QuickShip
      No
    • Manufacturer
      Accentra
    • About this Product
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, zinc plated, dichromated
      • Collection / Series
        Accentra 5400 Series
      • Lock Type
        Knob
      • Lever / Knob Style

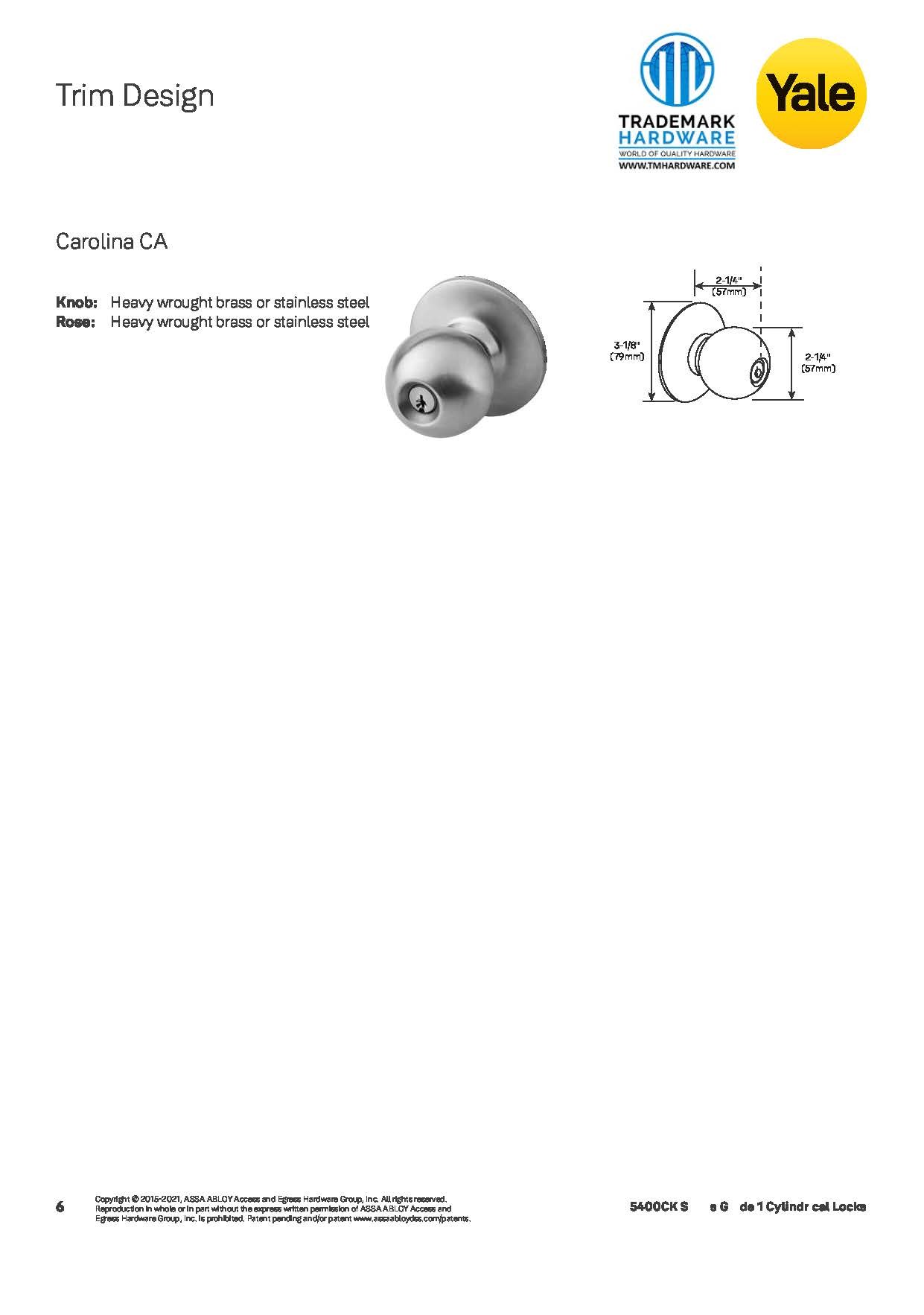

        Carolina Knob
    • Specifications
      • Cylinder Type
        6 Pin Cylinder
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        1-1/4" curved lip for 1-3/4"
      • Faceplate
        Square Corners
      • Keyway
        Schlage "C" Type
      • Keying Type
        Keyed Random
      • Bore Hole
        2-1/8"
      • Door Thickness
        1-3/8" - 2" Thick Door
      • Keys Provided
        2 Nickel, Silver Keys Provided
      • Function
        Asylum
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
    • Finishes
      • Finish
        Polished Brass (US3), Oil Rubbed Bronze, Equiv. (10BE), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.2 Grade 1, A156.115 Door Prep
      • Warranty
        10-year mechanical

    Click to Print Yale 5400 Series Installation Guide
