Accentra 8828FL Exit Or Communicating Mortised Lever Lockset with Camden Escutcheon - Custom Options

Accentra 8828FL Exit Or Communicating Mortised Lever Lockset with Camden Escutcheon
Accentra

Accentra (Formerly Yale) 8828FL Mortised Exit Or Communicating Lockset is designed and manufactured for uncompromising strength and durability in a range of commercial applications. This lockset is exceeds ANSI / BHMA Grade 1 Standards and 3 Hour UL-Fire Rated.

Large selection of finishes and trims available.

PRICED PER UNIT


* Levers and Escutcheons are Nickel Plated to match Stainless Steel (for Stainless still finish).

See tabs below for additional information
    • SKU
      YL-ARxCN-8828FL-605
    • Market price:$1,202.27
      • save 35%
    • Starting price: Price: $781.48 per item


    About the 8800FL Series: Accentra 8800FL Series Mortised Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

    For more information see our Accentra 8800 Mortised Lockset Series Catalog.

    Ease of Use: Lock installation is made easy with quick lever handing, field reversible latchbolt and standard non handed strike.

    Enhanced Security: It offers a new measure of security featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.

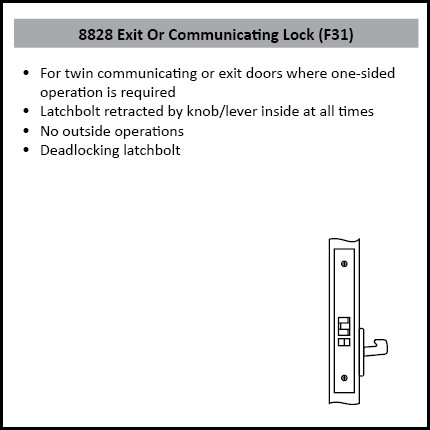

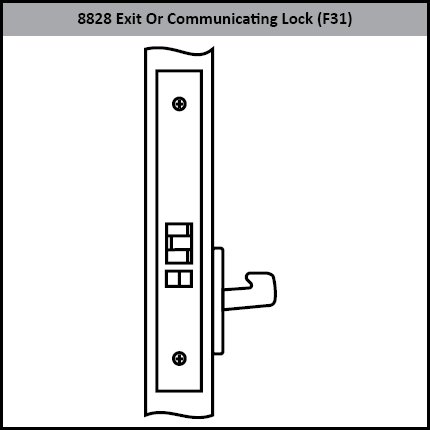

    8828FL Function - Hotel or Motel:

    • For twin communicating or exit doors where one-sided operation is required.
    • Latchbolt retracted by knob/lever inside at all times.
    • No outside operations.
    • Deadlocking latchbolt.

    Specifications:

    • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
    • UL-cUL: UL/cUL fire rated up to 3 hours
    • Windstorm: Certified (refer to local codes)
    • Mechanism: Stainless steel
    • Backset: 2-3/4"
    • Latchbolt: 3/4" stainless steel throw
    • Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order (contact our office)
    • Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
    • Handing: Field reversible handing
    • Strikes: 1-1/4" curved lip for 1-3/4" door standard

    Suggested Applications: Offices, Shopping Centers, Industrial Buildings, Commercial Facilities.

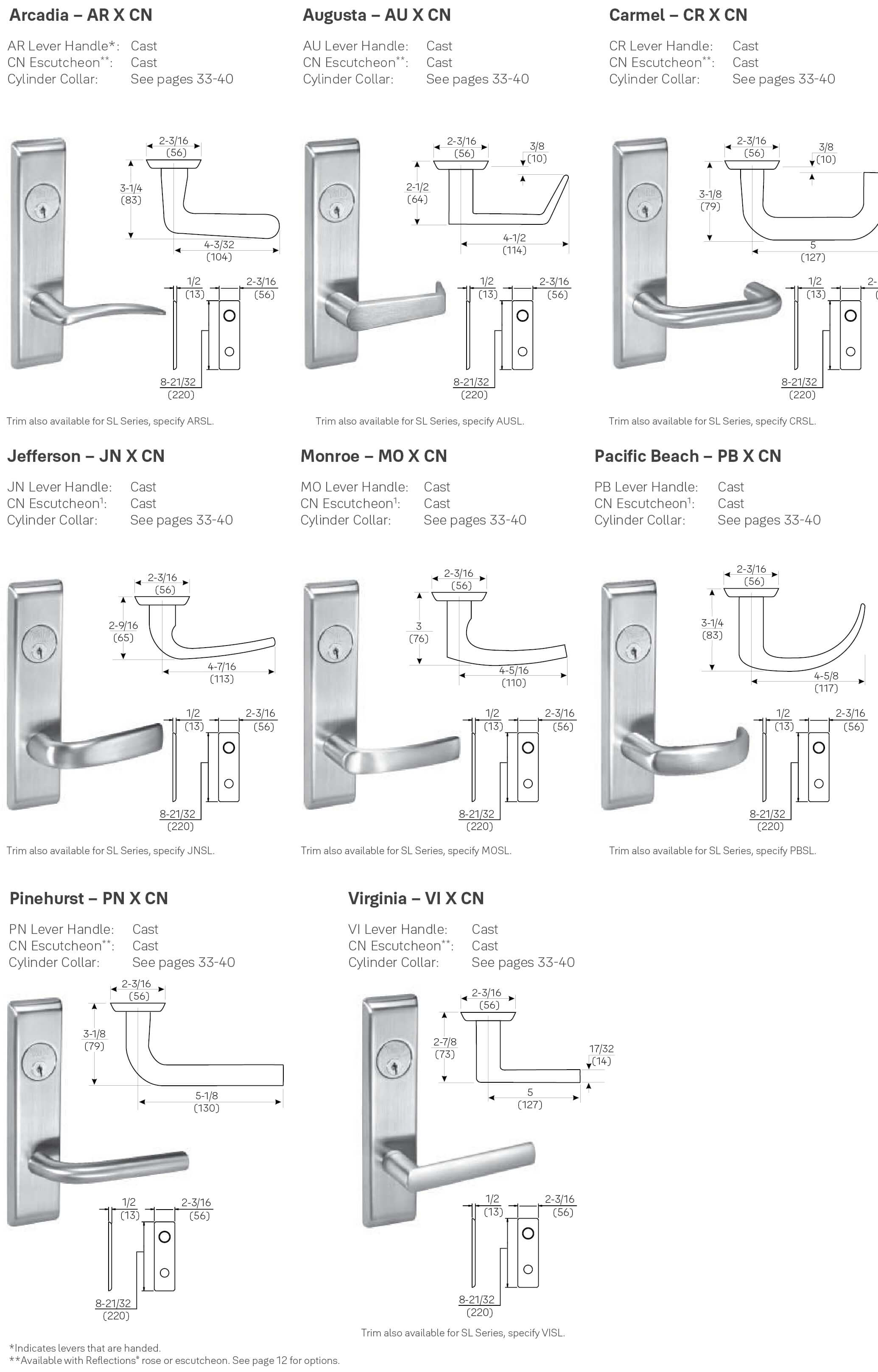

    Trims: Available in large selection of levers. See our 'Lever Trim' tab for dimensions and images.

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 10 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Additional functions are available, see our Accentra 8827FL Hotel or Motel Mortised Lever Lockset with Camden Escutcheon

      • SKU
        YL-ARxCN-8828FL-605
    • QuickShip
      No
    • Manufacturer
      Accentra
    • MPN
      8801FL
    • About this Product
      • Lever Material
        Cast Zinc
      • Mechanism Material
        Stainless Steel
      • Collection / Series
        Accentra 8000FL Series
      • Lock Type
        Handleset
      • Lever / Knob Style
        Arcadia Lever (AR), Augusta Lever (AU), Carmel Lever (CR), Jefferson Lever (JN), Monroe Lever (MO), Pacific Beach Lever (PB), Pinehurst Lever (PN), Virginia Lever (VI)
      • Rosette Style
        Camden Escutcheon
    • Specifications
      • Backset
        2-3/4" Backset
      • Latch Throw
        3/4" Latch
      • Strike
        1-1/4" curved lip for 1-3/4"
      • Door Thickness
        1-3/4" Thick Door
      • Handing
        Right Handed, Left Handed
      • Function
        communicating or exit
      • Mount Type
        Mortised
      • Grade
        Grade 1
      • Deadbolt
        1" Cast Stainless Steel Throw

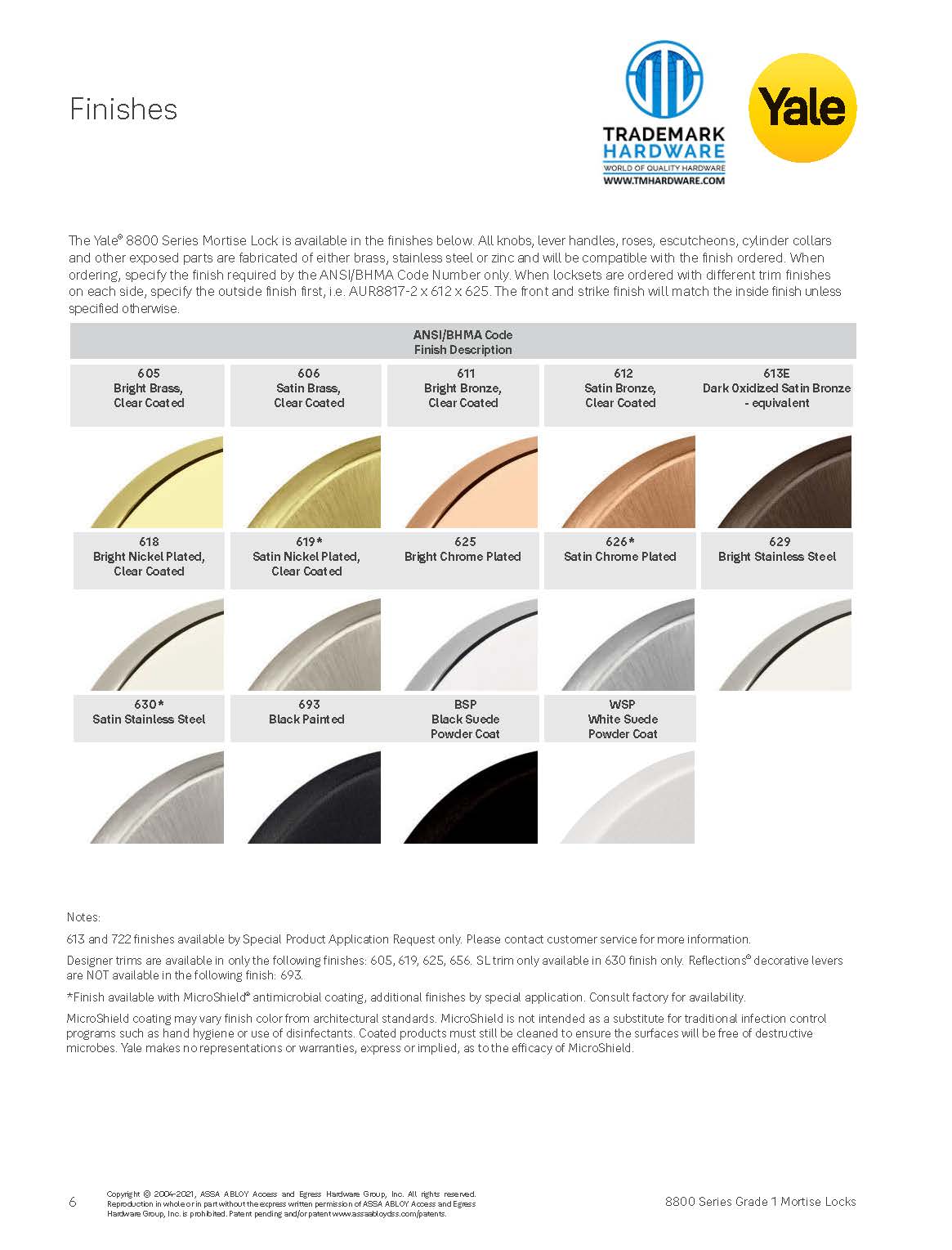

    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Polished Bronze (US9), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Nickel (US14), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Bright Stainless Steel (629) *, Satin Stainless Steel (630) *, Black Painted (693), Black Suede Powder Coat, White Suede Powder Coat
    • Compliance Details
      • Compliance Details
        ANSI A156.13 Operational Grade 1, UL/cUL - listed for 3 hour fire doors, Windstorm Resistant
      • ANSI Designation
        A156.13
      • Warranty
        10 Year Limited Warranty
