Accentra, Augusta, Door Lockset, 6400LN, Monolock, Retrofit - Custom Options

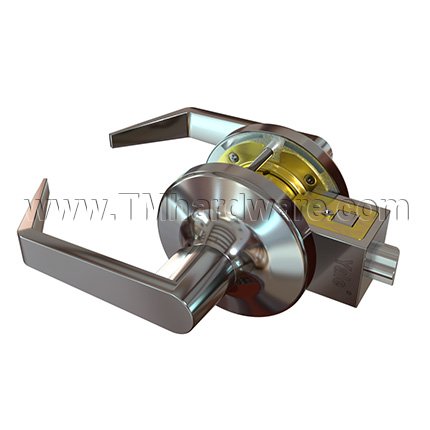

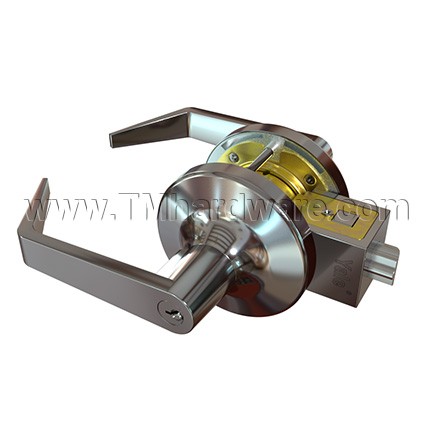

Accentra Door Handle 6401LN, Augusta Lever, Satin Chrome Plated Finish
Accentra

This item has been discontinued

See tabs below for additional information
    • SKU
      YL-AU-6401LN-626
    Call for price!
    845-388-1300

    Accentra (Formerly Yale) Door Knob Locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price.

    Functions:  See FUNCTION tab for details

    Benefits:

    • Versatile: Field reversible and other product options available to suit all applications.
    • Expedient: Avoids the need for expensive and time-consuming door modifications or replacement
    • Secure: Quality security from a trusted brand for over 170 years.
    • Strong and Reliable: ANSI / BHMA Grade 1 certified for long life

    Features:

    • Finish: Satin Chrome Plated
    • Keyway: All cylinders furnished standard 6-pin, keyed random in Accentra® PARA keyway, pinned to Accentra .019" specification. Each cylinder furnished with two nickel silver keys. Optional keyways available upon request, extended lead times may apply. Please contact our customer service for requests.
      • Optional keyways :
        • Schlage® C
        • Schlage® E
        • Corbin Russwin L4
        • Corbin 60 Keyway
        • Russwin D1
        • Sargent® LA
    • Interchangeable Cores: Optional Handles with Small or Large Format interchangeable cores with a variety of compatible cores are available. Please contact our customer service to request this option
    • Handing: Handed, please specify when ordering
    • Door thickness: 1-3/4"
    • Backset: 2-3/4"

    Cylinders:

    • Conventional core is provided with a cylinder (Accentra PARA Keyway).
    • Cylinder Finish: Cylinders are supplied in US3 Polished Brass and US26D Satin Chrome Finish only.

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 7-year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here to view our Accentra, Carolina, Door Knob Lockset, 5400CK, Heavy Duty, Grade 1 - Custom Options

      • SKU
        YL-AU-6401LN-626
    • QuickShip
      No
    • Manufacturer
      Accentra
    • MPN
      AU-6400LN
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Cold Forged Brass, Bronze
      • Mechanism Material
        Heavy-gauge steel, zinc plated, dichromated
      • Collection / Series
        Accentra 6400LN Series
      • Lock Type
        Lever
      • Lever / Knob Style

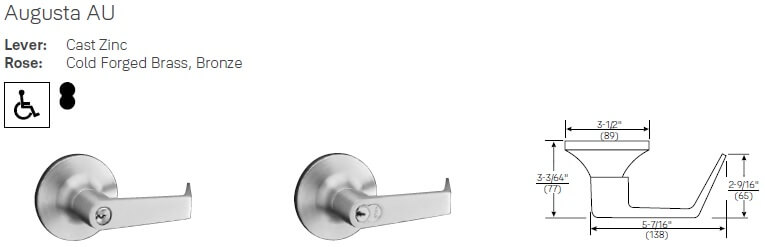

        Augusta Lever (AU)
    • Specifications
      • Cylinder Type
        6 Pin Cylinder
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center
      • Faceplate
        Square Corners
      • Keyway
        Accentra PARA Keyway
      • Keying Type
        Conventional Core, Interchangeable Core
      • Bore Hole
        2-1/8"
      • Door Thickness
        1-3/4"
      • Keys Provided
        2 Nickel, Silver Keys Provided
      • Handing
        Right Handed, Left Handed
      • Function
        Entry Lock (Push Button), Entry Lock (Turn Button), Storeroom or Closet, Service Station, Classroom, Corridor, Communicating Classroom, Communicating, Apartment, Exit or Public Toilet, Intruder Classroom Security, Utility, Asylum or Institutional, Passage, Communicating Passage, Exit Latch, Patio Privacy, Privacy, Bedroom or Bath, Privacy
      • Mount Type
        Cylindrical
      • Cross Bore
        2-1/8" Cross Bore
      • Locking Mechanism
        Push Button, Thumbturn, Key
    • Finishes
      • Finish
        Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        ADA Compliant, UL-cUL “B” Fire Label up to 1-1/2 hours, Designed and manufactured under a certified ISO 9001 quality system
      • Warranty
        7 Year Limited Warranty
