Accentra, Pacific Beach, Door Lockset, 6400LN, Monolock, Retrofit - Custom Options

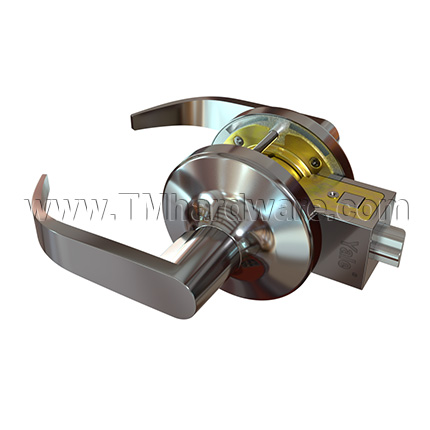

Accentra (Formerly Yale) 6400LN Monolock, Retrofit with Pacific Beach Handle is designed to retrofit existing Accentra® Monolock as well as Corbin Russwin Unit Lock and Falcon® Retrofit Lock installations with 1-3/4" latch height. As an increased deterrent to vandalism, this series features a Free Wheeling lever mechanism. The 6400 series is a great alternative to expensive door modification due to its cost-effectiveness and versatility. It also has a UL/cUL “B” Fire-rated on all functions for up to 90 minutes.
Choose door functions and finishes from the dropdown menu. Functions are explained in detailed description below.
PRICED PER UNIT
Accentra Door Knob Locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price.
Functions: See FUNCTION tab for details
Benefits:
- Versatile: Field reversible and other product options available to suit all applications.
- Expedient: Avoids the need for expensive and time-consuming door modifications or replacement
- Secure: Quality security from a trusted brand for over 170 years.
- Strong and Reliable: ANSI / BHMA Grade 1 certified for long life
Features:
- Finish: Satin Chrome Plated
- Keyway: All cylinders furnished standard 6-pin, keyed random in Accentra® PARA keyway, pinned to Accentra .019" specification. Each cylinder furnished with two nickel silver keys. Optional keyways available upon request, extended lead times may apply. Please contact our customer service for requests.
- Optional keyways :
- Schlage® C
- Schlage® E
- Corbin Russwin L4
- Corbin 60 Keyway
- Russwin D1
- Sargent® LA
- Optional keyways :
- Interchangeable Cores: Optional Handles with Small or Large Format interchangeable cores with a variety of compatible cores are available. Please contact our customer service to request this option
- Handing: Handed, please specify when ordering
- Door thickness: 1-3/4"
- Backset: 2-3/4"
Cylinders:
- Conventional core is provided with a cylinder (Accentra PARA Keyway).
- Cylinder Finish: Cylinders are supplied in US3 Polished Brass and US26D Satin Chrome Finish only.
See SPECIFICATION tab for additional information.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 7-year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Click here to view our Accentra, Monroe, Door Lockset, 6400LN, Monolock, Retrofit - Custom Options
-
QuickShipNo
-
ManufacturerAccentra
-
MPNMO-6400LN
- About this Product
-
Lever MaterialCast Zinc
-
Rose MaterialCold Forged Brass, Bronze
-
Mechanism MaterialHeavy-gauge steel, zinc plated, dichromated
-
Collection / SeriesAccentra 6400LN Series
-
Lock TypeLever
-
Lever / Knob StyleMonroe Lever (MO)
-
- Specifications
-
Cylinder Type6 Pin Cylinder
-
Backset2-3/4" Backset
-
Latch Throw1/2" Latch
-
StrikeANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center
-
FaceplateSquare Corners
-
KeywayAccentra PARA Keyway
-
Keying TypeConventional Core, Interchangeable Core
-
Bore Hole2-1/8"
-
Door Thickness1-3/4"
-
Keys Provided2 Nickel, Silver Keys Provided
-
HandingRight Handed, Left Handed
-

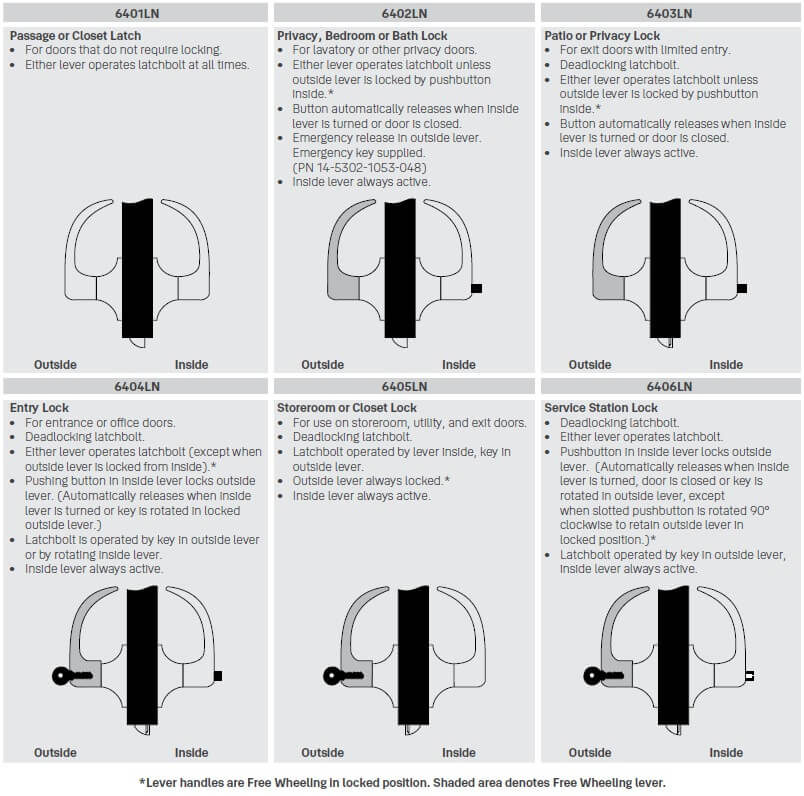

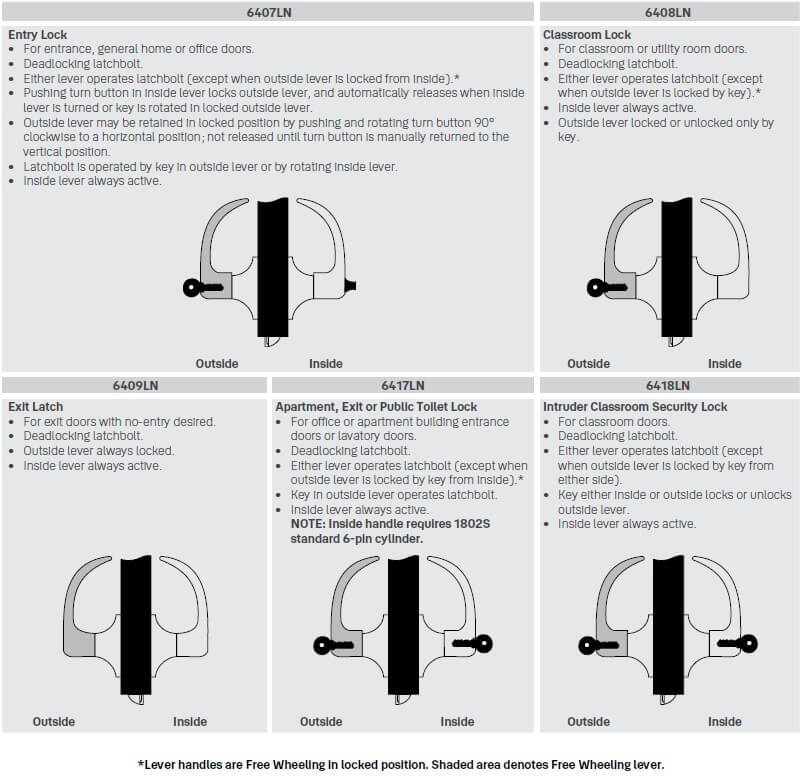

FunctionEntry Lock (Push Button), Entry Lock (Turn Button), Storeroom or Closet, Service Station, Classroom, Corridor, Communicating Classroom, Communicating, Apartment, Exit or Public Toilet, Intruder Classroom Security, Utility, Asylum or Institutional, Passage, Communicating Passage, Exit Latch, Patio Privacy, Privacy, Bedroom or Bath, Privacy
-
Mount TypeCylindrical
-
Cross Bore2-1/8" Cross Bore
-
Locking MechanismPush Button, Thumbturn, Key
-
- Finishes
-
FinishSatin Chrome Plated (626)
-
- Compliance Details
-
Compliance DetailsADA Compliant, UL-cUL “B” Fire Label up to 1-1/2 hours, Designed and manufactured under a certified ISO 9001 quality system
-
Warranty7 Year Limited Warranty
-
