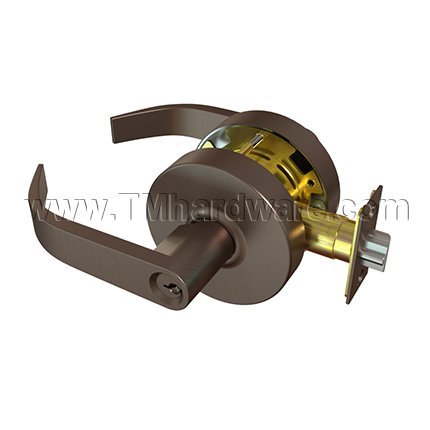

Accentra PB-4607LN Entry Lever, Grade 2, Pacific Beach Lever - Quick Ship
Accentra (Formerly Yale) PB-4607LN Entry Lever, Grade 2, Pacific Beach Lever is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economic price. The 4607LN is certified to ANSI/BHMA Grade 2 standards and is UL-Fire Rated.
PRICED PER UNIT
Accentra PB-4607LN Entry Lever, Grade 2, Pacific Beach Lever are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economic price.
See Accentra 4600 Series Grade 2 Locks Full Catalog.

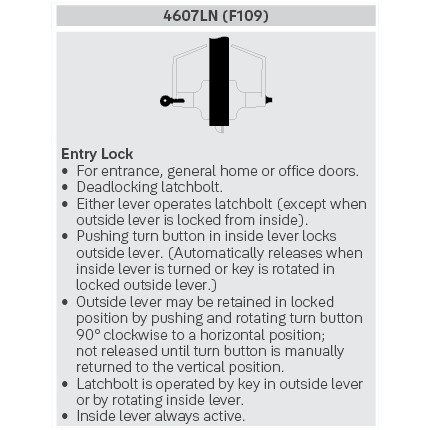

PB-4607LN Function - Office Entry:
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever).
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to an horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever is always active.
Benefits:
- Versatile: Field reversible and other product options available to suit all applications.
- Economical: Priced affordably for projects of all budgets
- Secure: Quality security from a trusted brand for over 170 years.
- Strong and Reliable: ANSI / BHMA Grade 2 certified for long life
Features:
- Handing: Field reversible for ease of ordering and installation
- Trims: Pacific Beach Lever
- Finish: selection of finishes available, select above
- ADA Compliance: for ease of accessibility
- Keyway: Selection of keyways available, select above
Cylinders:
- Conventional core is provided with a cylinder (select keyway from above).
- SFIC Core is provided without a core, to be purchased separately.
- Cylinder Finish: Cylinders are supplied in US3 Polished Brass and US26D Satin Chrome Finish only.
See SPECIFICATION tab for additional information.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For a non-keyed latching lock, see our Accentra 4602LN Privacy Lock.
-
QuickShipYes
-
ManufacturerAccentra
-
MPNPB-4607LN
- About this Product
-
Lever MaterialCast Zinc
-
Rose MaterialWrought Brass
-
Mechanism MaterialHeavy-gauge steel, zinc plated, dichromated
-
Collection / SeriesAccentra 4600 Series
-
Lock TypeLever
-
Lever / Knob StylePacific Beach Lever (PB)
-
- Specifications
-
Cylinder Type6 Pin Cylinder
-
Backset2-3/4" Backset, 2-3/8" Backset
-
Latch Throw1/2" Latch
-
StrikeANSI 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
-
FaceplateSquare Corners
-
KeywaySchlage "C" Type
-
Keying TypeConventional Core, Interchangeable Core
-
Door Thickness1-3/8" - 1-3/4" Thick, Adjustable
-
Keys Provided2 Nickel, Silver Keys Provided
-
HandingReversible
-
FunctionEntry
-
Mount TypeCylindrical
-
GradeGrade 2
-
Cross Bore2-1/8" Cross Bore
-
Locking MechanismPush Button
-
- Finishes
-
FinishOil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
-
ANSI DesignationA156.115 Door Prep
-
Warranty3 Year Warranty
-
