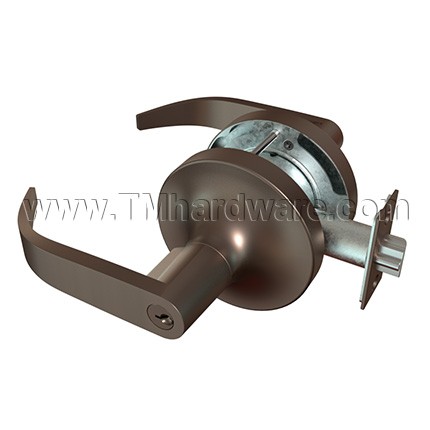

Accentra PB-4705LN Storeroom Lever, Grade 1, Pacific Beach Lever - Quick Ship
Accentra (Formerly Yale) PB-4705LN Cylindrical Storeroom Pacific Beach Lever is the ideal choice for a wide variety of commercial applications that require keyway without Push button locking. The 4705LN is is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.
PRICED PER UNIT
For additional options, see our Accentra 4705LN Grade 1 Storeroom Lever with Custom Options.
Accentra PB-4705LN Cylindrical Storeroom Pacific Beach Lever is the ideal choice for a wide variety of commercial applications that require keyway without Push button locking. The 4705LN is is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.
Click here to view the full Accentra 4700 Grade 1 Lever Lockset Catalog.
PB-4605LN Function - Storeroom or Closet Lock:
- For storeroom, utility, exit doors.
- Deadlocking latchbolt.
- Latchbolt operated by lever inside, key in outside lever.
- Outside lever always locked.
- Inside lever is always active.
Features:
- Handing: Field reversible for ease of ordering and installation

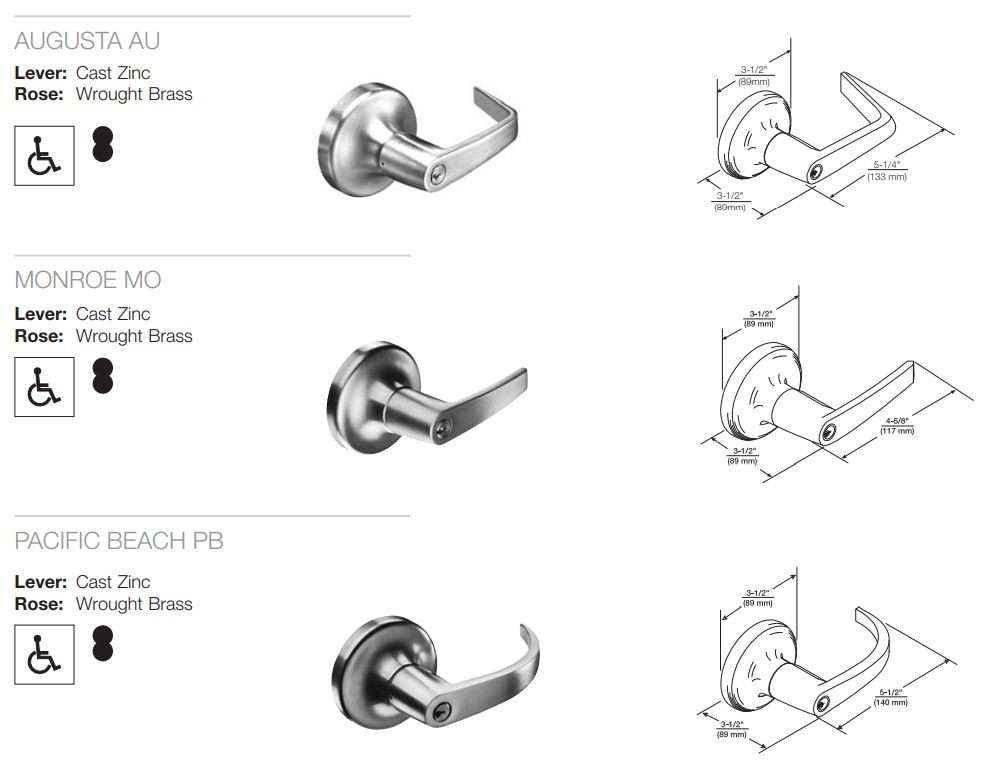

- Trims: Pacific Beach Lever
- Finish: selection of finishes available, select above
- ADA Compliance: for ease of accessibility
See SPECIFICATION tab for additional information.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Available with Grade 1 Certification, see our Accentra 4605LN Storeroom Lock.
-
QuickShipYes
-
ManufacturerAccentra
-
MPNPB-4705LN
- About this Product
-
Lever MaterialCast Zinc
-
Rose MaterialWrought Brass
-
Mechanism MaterialHeavy-gauge steel, die-cast, zinc-plated, chromated
-
Collection / SeriesAccentra 4700 Series
-
Lock TypeLever
-
Lever / Knob StylePacific Beach Lever (PB)
-
- Specifications
-
Cylinder Type6 Pin Cylinder
-
Backset2-3/4" Backset
-
Latch Throw1/2" Latch
-
StrikeASA Strike, 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
-
FaceplateSquare Corners
-
KeywaySchlage "C" Type
-
Keying TypeKeyed Random
-
Door Thickness1-3/4" - 2" Thick Door
-
Keys Provided2 Nickel, Silver Keys Provided
-
HandingReversible
-
FunctionStoreroom
-
Mount TypeCylindrical
-
GradeGrade 1
-
Cross Bore2-1/8" Cross Bore
-
Locking MechanismKey
-
- Finishes
-
FinishOil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
-
ANSI DesignationA156.2 Grade 1, A156.115 Door Prep
-
Warranty5 Year Limited Warranty
-
