Activar Vision Lite Kit VLFIGHRC-F PAK, Hurricane Approved and Fire Rated, Complete with 1-7/16" Glass, up to 21.75" x 61.75"

Activar Vision Lite Kit VLFIGHRC-F PAK, Hurricane Approved and Fire Rated, Complete with 1-7/16" Glass, up to 21.75" x 61.75"
Activar Air Louvers

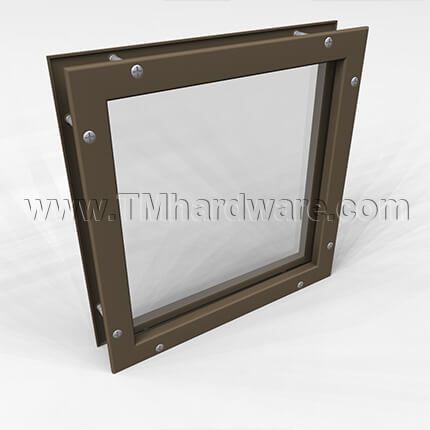

This model is a vision lite kit compatible with 1-3/4" thick doors, and recommended for applications requiring safety from wind-borne debris. This VLFIGHRC-F vision lite is based on the VLFIG vision frame, but it is stronger and is provided with special glazing and features to keep water out. The vision lite comes complete with a 1-7/16" thick glass that is both hurricane approved and fire rated. Rubber is applied to all openings in the vision lite to ensure maximum protection. The vision lite kit is available in several sizes and finishes, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      ACVLFIGHRC-F 1212B PAK
    • Market price:$493.00
      • save 20%
    • Starting price: Price: $394.40 per item


    This hurricane approved and fire-rated vision lite kit comes complete with a 1-7/16" thick glass and is ideal for use in educational facilities, exterior exit stairwells and mechanical room doors.

    Material: 18 gauge galvanneal steel frame

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 4.5"-21.75"
    • Available heights: 16.25"-61.75". (There is also a minimum square size of 12.25" W x 12.25" H.)

    How to Order:  Orders size is the Door Cut-out Dimensions. See Product Specs for details.

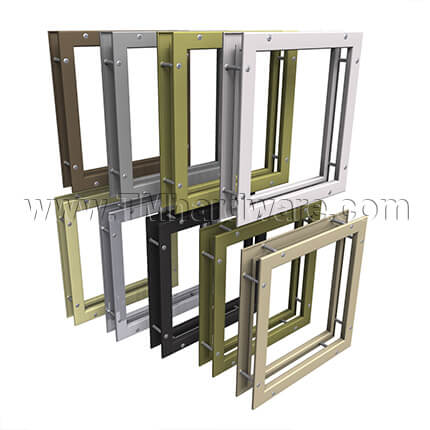

    Available Finishes: Available in all standard Powder Coat Finishes. See our Lites and Louvers Standard Finishes.

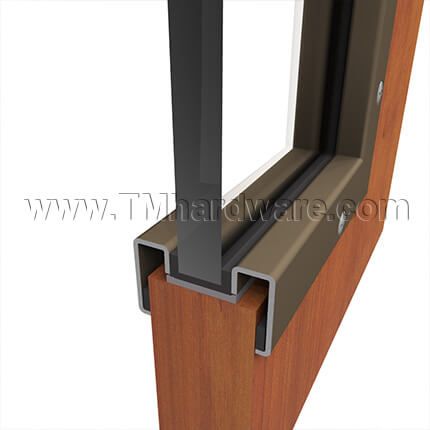

    Construction: 1-1/2" trim with mitered and welded corners, square return and countersunk mounting holes on both sides.

    Sealing: In order to ensure that the vision lite is secure against hurricane winds, additional rubber sealing is placed at every opening.

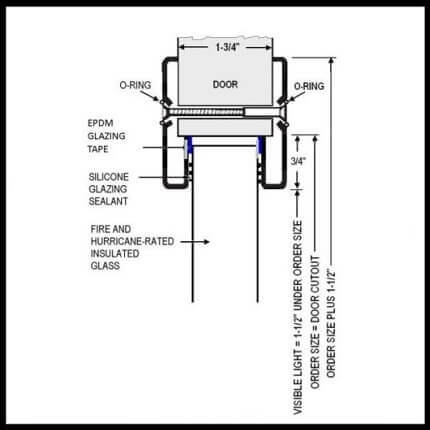

    • Between Frame & Glass: EPDM-neoprene glazing tape. Dow Corning #995 (or equal model) silicone structural glazing sealant applied per manufacturing instructions.
    • Screw Entry Points: Neoprene "O"- Ring, 7/32” and 5/32” I.D. with 1/16” wall, are provided to be used at each screw head.

    Door Type: For 1-3/4" thick doors with Hurricane Listing.

    Fasteners Included: #8 x 32 Phillips head thru bolts with blank head one side, to match finish.

    Glass Included: Special 1-7/16” lamination of Safti-First ® II-XL 60 hurricane-rated glazing with Dupont Sentry Plus® interlayer and 60 minute fire-rated glazing. Visible light is 1-1/2” under rough opening size. Glass size is 1/4” under order size.

    Compliance Details: This is a fire rated and a severe windstorm approved vision frame that has been tested in accordance with missile impact, cyclic wind pressure loading, air infiltration, water resistance, structural loading, uniform static air pressure, forced entry and windstorm resistance.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Activar Vision Lite Kit VLFIGHRC PAK, For Hurricane and High Wind Velocity.

      • SKU
        ACVLFIGHRC-F 1212B PAK
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      VLFIGHRC-F
    • Size (W" X H")
      7.25" W X 27" H, 12.25" W X 12.25" H, 21.75" W X 61.75" H
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, AMS Beige Powder Coat, White Powder Coat, Sand Powder Coat, Silver Powder Coat, Black Powder Coat, Flat Black (US19), SC Beige Powder Coat, Brass Powder Coat

    Click to Print

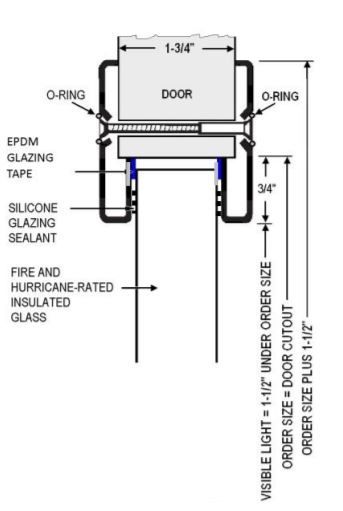

    CVLFIGHRC-F Product Specs:

    VLFIGHRC-F Product Specs

    This is a fire rated vision frame that has been tested in accordance with:

      NFPA 252, UL 10C, Can/ULC S104

    Intertek Maximum Visible Light 20/45 Minute: 1209.94 in²

    Intertek Maximum Visible Light 60 Minute: 100 in²

    UL Maximum Visible Light 60 Minute: 1209.94 in²



    This is a severe windstorm approved vision frame that has been tested in accordance with:

    Missile Impact: TAS 201, ASTM E1996 (impact 350 ft lb, Missile Level D, DP Rating 70 psf)

    Cyclic Wind Pressure Loading: TAS 203, ASTM E1886

    Air Infiltration, Water Resistance, Structural Loading, Uniform Static Air Pressure, Forced Entry: TAS 202, ASTM E283, ASTM E330, ASTM E331, ASTM E1300, FBC 2411 3.2.1

    Windstorm Resistance, Door Components: ANSI A250.13



    Certified by Warnock-Hersey and UL

    Florida Building Code Approval File #FL13187-R2

    Miami-Dade County Florida Component NOA 17-0404.01 (expires 7/2020)
