Activar Vision Lite Kit VLFIGHRC PAK, Hurricane and High Wind Velocity, For 1-3/4" to 3" Doors, Complete with 5/16" Glass, up to 30" x 60.5"

Activar Vision Lite Kit VLFIGHRC PAK, Hurricane and High Wind Velocity, For 1-3/4" to 3" Doors, Complete with 5/16" Glass, up to 30" x 60.5"
Activar Air Louvers

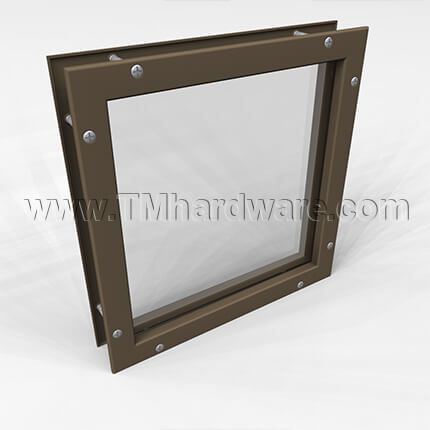

This model is a vision lite kit compatible with 1-3/4" to 3" thick doors, and recommended for applications requiring safety from wind-borne debris. The vision lite comes complete with a 5/16" thick glass configuration that is made of 2 heat strengthened glass lites that measure 1/8" each and are separated by an inerlayer. Rubber is applied to all openings in the vision lite to ensure maximum protection. The vision lite kit is available in many sizes and finishes, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      ACVLFIGHRC 1212B PAK
    • Market price:$493.00
      • save 20%
    • Starting price: Price: $394.40 per item


    This hurricane and high wind velocity vision lite kit comes complete with a 5/16" thick glass configuration.

    Material: 18 gauge galvanneal steel frame

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 3"-30"
    • Available heights: 3"-60.5"

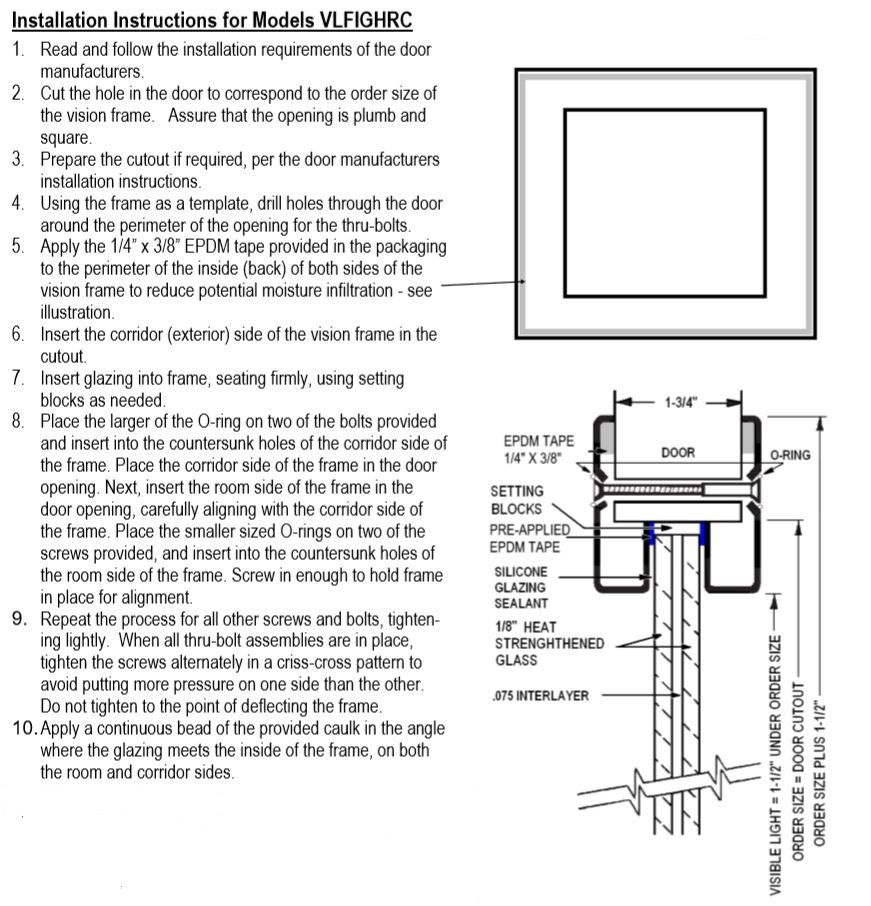

    How to Order:  Orders size is the Door Cut-out Dimensions. See Product Specs for details.

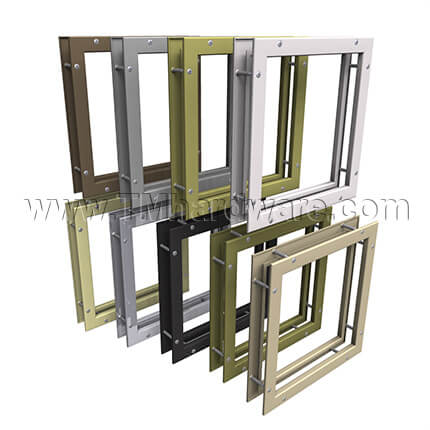

    Available Finishes: Available in all standard Powder Coat Finishes. See our Lites and Louvers Standard Finishes.

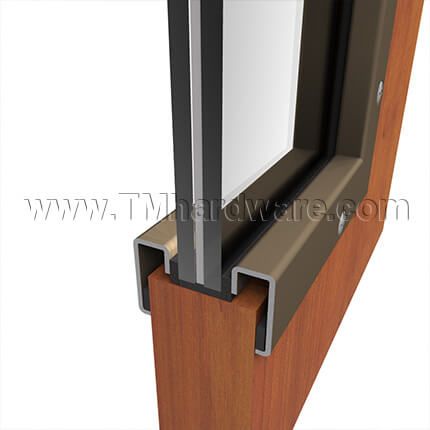

    Construction: 1-1/2" trim with mitered and welded corners, square return and countersunk mounting holes on both sides.

    Sealing: In order to ensure that the vision lite is secure against hurricane winds, additional rubber sealing is placed at every opening.

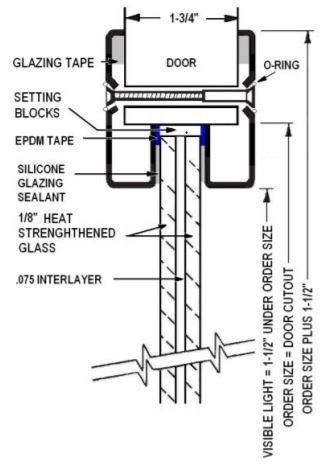

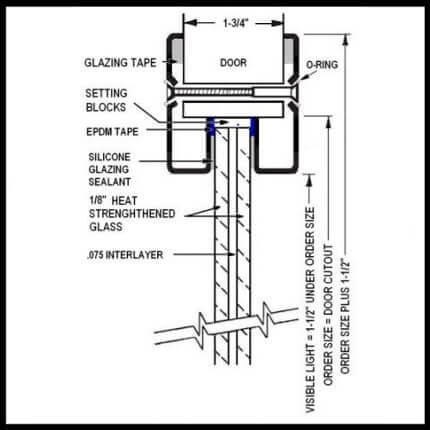

    • Between Frame & Glass: Sponge rubber, EPDM / neoprene press-on glazing tape measuring 1/8” x 3/8”. Dow Corning #995 (or equal model) silicone structural glazing sealant applied per Dow Corning instructions.
    • Between Door & Frame Perimeter: Closed cell EPDM press-on glazing tape measuring 1/4” x 3/8” applied to the inside face of the lite kit frame.
    • Screw Entry Points: Neoprene "O"- Ring, 7/32” and 5/32” I.D. with 1/16” wall, are provided to be used at each screw head.
    • Setting Blocks to Suit: EPDM or neoprene setting blocks with a minimum thickness of 1/16” at quarter points of bottom of glass and elsewhere as needed to prevent the glass from cracking.

    Door Type: For 1-3/4" to 3" thick doors.

    Fasteners Included: #8 x 32 Phillips head thru bolts with blank head one side, to match finish.

    Glass Included: 5/16" thick glazing configuration that comes complete with the product. 1/8" heat-strengthened glass lites separated by 0.075" interlayer.

    Compliance Details: This is a severe windstorm approved vision frame that has been tested in accordance with glazing impact, cyclic wind pressure loading, uniform static air pressure and windstorm resistance.

    Additional Options: Custom options are available, please contact us for details and pricing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Activar Vision Lite VLFIG, Square Profile.

      • SKU
        ACVLFIGHRC 1212B PAK
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      VLFIGHRC PAK
    • Size (W" X H")
      7" W X 22" H, 8" W X 32" H, 12" W X 12" H, 24" W X 24" H, 24" W X 30" H, 24" W X 32" H, 24" W X 36" H, 24" W X 56" H
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, AMS Beige Powder Coat, White Powder Coat, Sand Powder Coat, Silver Powder Coat, Black Powder Coat, Flat Black (US19), SC Beige Powder Coat, Brass Powder Coat

    Click to Print



    CVLFIGHRC PAK Product Specs:

    VLFIGHRC Product Specs

    This is a severe windstorm approved vision frame that has been tested in accordance with:

    Glazing Impact: ASTM E1996 (impact 350 ft lb, Missile Level D, DP Rating 70 psf)

    Cyclic Wind Pressure Loading: ASTM E1886

    Uniform Static Air Pressure: ASTM E330

    Windstorm Resistance, Door Components: ANSI A250.13

    Certified by Warnock-Hersey

    Rating

    Shipping costs may vary due to the addition of glazing with this vision lite.
