Adams Rite Deadlatch 4530, Standard Duty, Deadlatch Retrofit, For Aluminum Swinging Doors

Adams Rite Deadlatch 4530, Standard Duty, Deadlatch Retrofit, For Aluminum Swinging Doors
Adams Rite

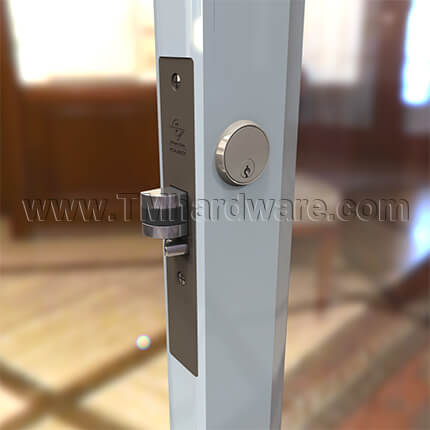

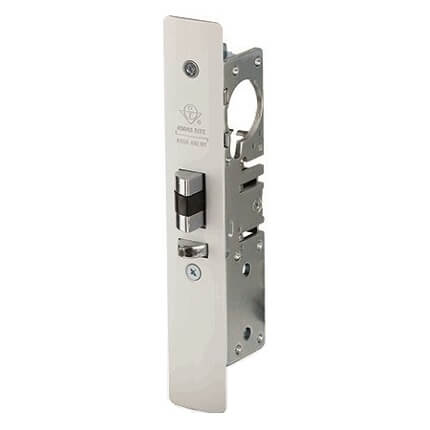

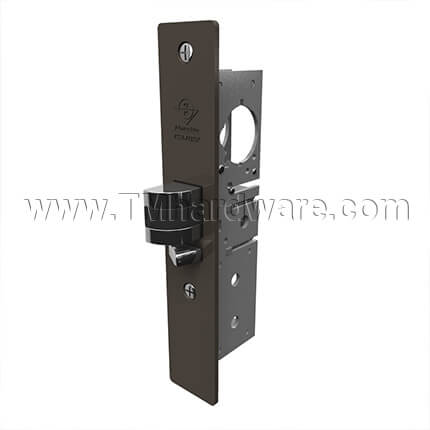

This model is a standard duty deadlatch for aluminum swinging doors and is designed to retrofit into the prep of older and discontinued products. The lock provides flexible traffic control during and after business hours for applications that require free entrance at certain times and exit only at other times. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in many options, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR4533-313
    • Market price:$77.00
      • save 35%
    • Starting price: Price: $50.05 per item


    This standard duty deadlatch is for aluminum swinging doors and is designed to retrofit into the prep of older and discontinued products.

    Please note: Turn, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

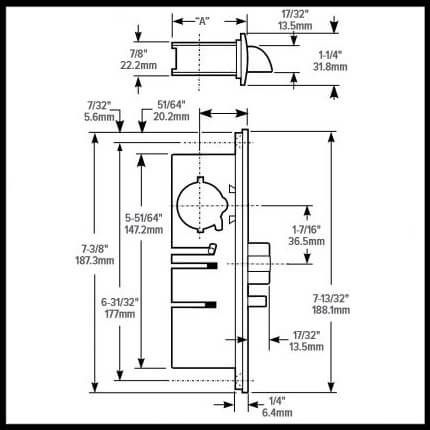

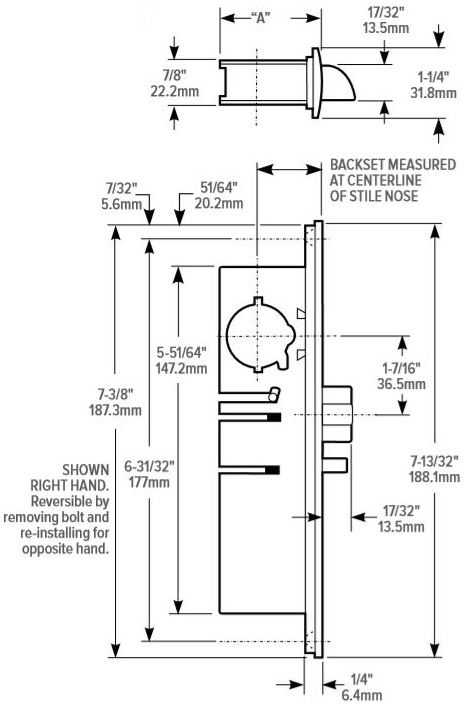

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    This deadlatch comes in a choice of three backsets:

    • 7/8" (22.2 mm) backset

    Length of case (A) = 1-33/64" (38.5 mm)

    • 31/32" (24.6 mm) backset

    Length of case (A) = 1-19/32" (40.5 mm)

    • 1-1/8" (28.6 mm) backset

    Length of case (A) = 1-49/64" (44.8)

    Latchbolt: Top bolt that is easily reversible without special tools. For details on how to reverse the bolt, see our Re-handing Instructions.

    Auxiliary Bolt: Bottom bolt that deadlocks the latchbolt to prevent "loiding" or case-knife entry.

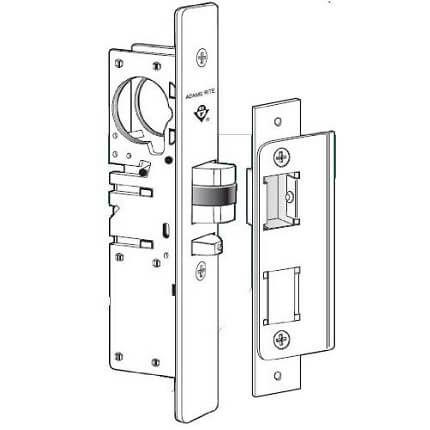

    Strike: This deadlatch comes in a choice of strikes:

    • 4901 Strike: 4-5/8" mortised strike
    • 4902 Strike: 2-5/8" mortised strike

    Strikes are available for flat jambs where door closes flush, and radius profile for opposite stile in paired doors. Long lip strikes are also available for center hung doors.

    Installation: For details on how to install this deadlatch, see our Installation Instructions.

    Operation: Turn the key or operate the handle/paddle to retract the spring-loaded latchbolt. To holdback the bolt and allow the door to be free swinging, fully retract the bolt and secure by the reverse turn of the key.

    Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter and MS® cam, available separately. The lock accepts a cylinder from either or both sides.

    Compatible Cylinders:

    Compatibility: Designed to fit without stile modification with older MS1850S Deadlock and discontinued 4250 Deadlatches of the same backset and faceplate shape.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlatch 4510, Standard Duty, For Aluminum Swinging Doors.

      • SKU
        AR4533-313
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      4530; 4531; 4532; 4533
    • Product Details
      • Included Parts
        Deadlatch, Faceplate, Strike Plate, Mounting Screws
      • Case Material
        Steel with corrosion resistant plating
      • Faceplate Type
        Flat Faceplate, Radius Faceplate, Bevel Faceplate, No Faceplate, No Strike Plate
      • Bolt Type
        Latch Bolt, Auxiliary Bolt
      • Bolt Material
        Metal with hardened steel internal pins
      • Strike Type
        Flat / Standard Jamb, Radius / Standard Stile, Flat / Center Hung 4" Jamb, Flat / Center Hung 4-1/2" Jamb, No Strike Plate
      • Strike Mounting
        Mortised
      • ANSI / BHMA Grade
        Grade 1
      • Compatibility
        MS1850S Deadlock, 4250 Deadlatch
    • Dimensions
      • Case Dimensions
        7/8" W x 5-51/64" H
        Length varies with cylinder backset
      • Faceplate Dimensions
        1-1/4" W x 7-13/32" H
      • Bolt Dimensions
        17/32" x 1"
      • Bolt Throw
        17/32"
      • Cylinder Backset
        7/8" Backset, 31/32" Backset, 1-1/8" Backset
      • Strike Size
        4-5/8" Strike, 2-5/8" Strike
    • Installation
      • Door Type
        Swinging Door
      • Door Material
        Aluminum
      • Handing
        LH or RHR, RH or LHR
    • Finishes
      • Finish
        Dark Bronze Anodized Aluminum (313), Black Anodized (335), Clear Anodized Aluminum (US28)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty

    Click to Print - Installation Instructions

    Click to Print - Re-handing Instructions
