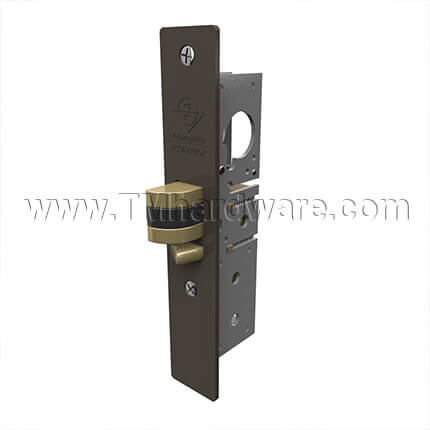

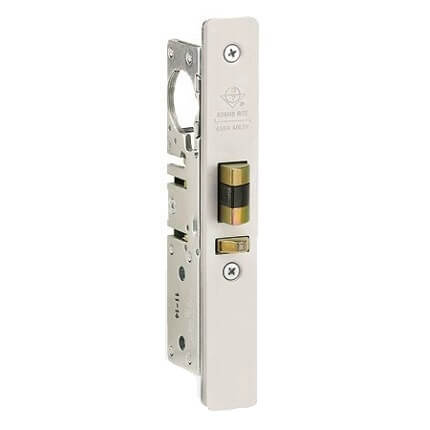

Adams Rite Deadlatch 4510, Standard Duty, For Aluminum Swinging Doors

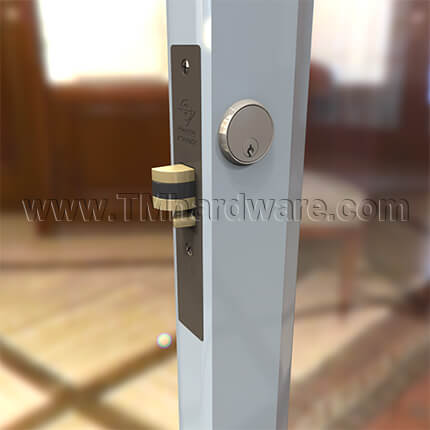

This standard duty deadlatch is for aluminum swinging doors.

Please note: Turn, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

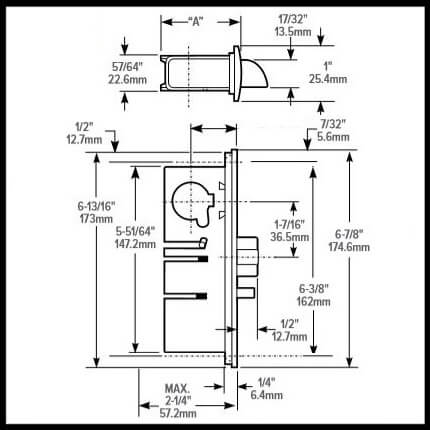

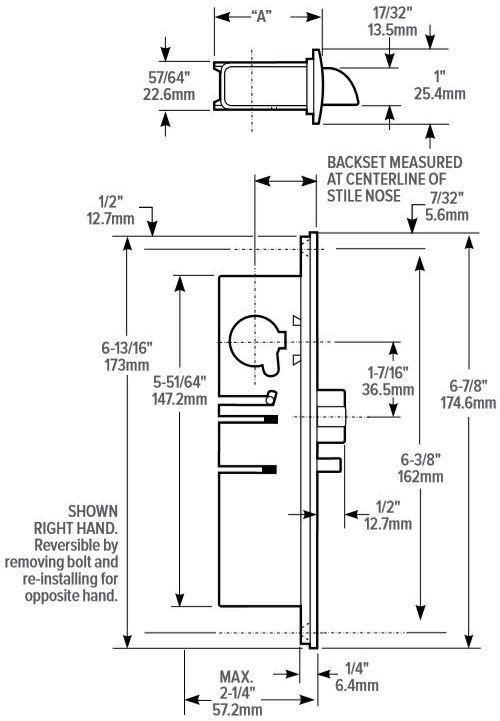

Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

This deadlatch comes in a choice of four backsets:

• 7/8" (22.2 mm) backset

Length of case (A) = 1-33/64" (38.5 mm)

• 31/32" (24.6 mm) backset

Length of case (A) = 1-19/32" (40.5 mm)

• 1-1/8" (28.6 mm) backset

Length of case (A) = 1-49/64" (44.8)

• 1-1/2" (38.1 mm) backset

Length of case (A) = 2-9/64" (54.4 mm)

Latch Bolt: Top bolt that is easily reversible without special tools. For details on how to reverse the bolt, see our Re-handing Instructions.

Auxiliary Bolt: Bottom bolt that deadlocks the latchbolt to prevent "loiding" or case-knife entry.

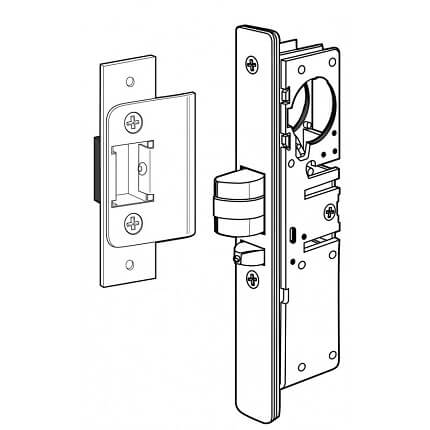

Strike: This deadlatch comes in a choice of strikes:

• 4901 Strike: 4-5/8" mortised strike to cover slot strike of MS lock
• 4902 Strike: 2-5/8" mortised strike

Strikes are available for flat jambs where door closes flush, and radius profile for opposite stile in paired doors. Long lip strikes are also available for center hung doors.

Installation: For details on how to install this deadlatch, see our Installation Instructions.

Operation: Turn the key or operate the handle/paddle to retract the spring-loaded latchbolt. To holdback the bolt and allow the door to be free swinging, fully retract the bolt and secure by the reverse turn of the key.

Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter and MS® cam, available separately. The lock accepts a cylinder from either or both sides.

Compatible Cylinders:

• Adams Rite #4036 - Mortise Cylinder
• Adams Rite #4066 - Thumbturn Insert

Compatibility: Interchangeable without stile modification with any MS1850S Deadlock of the same backset and faceplate shape. However, the 4510 Deadlatch does not provide the same maximum security level as the MS® Deadlock.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 10 year warranty against defects in materials and workmanship.
