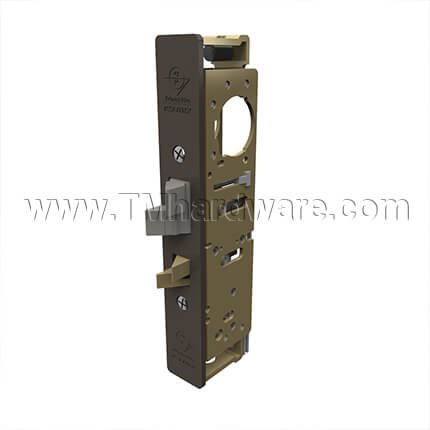

Adams Rite Deadlatch 4300, Steel Hawk® Electrified Deadlatch, For Narrow Stile Aluminum Doors

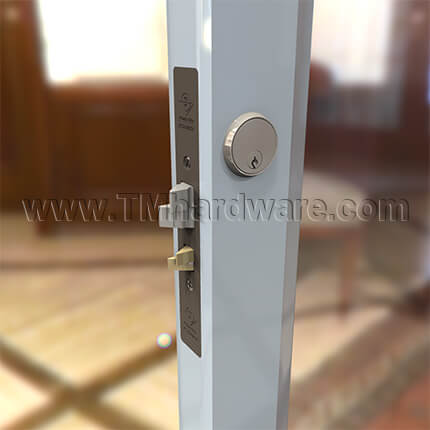

This Steel Hawk® electrified deadlatch is for narrow stile aluminum swinging doors.

Please note: Turn, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

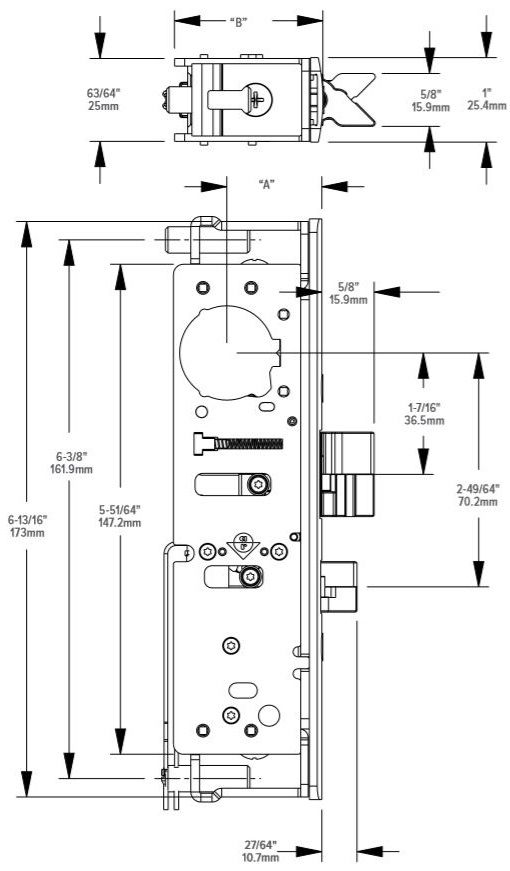

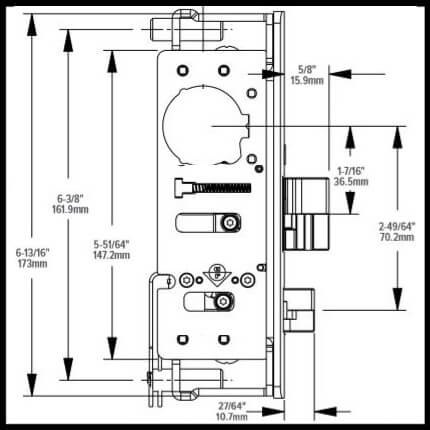

Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

This deadlatch comes in a choice of three backsets:

• 31/32" (24.6 mm) backset

Length of case (A) = 1-19/32" (40.5 mm)

• 1-1/8" (28.6 mm) backset

Length of case (A) = 1-49/64" (44.8)

• 1-1/2" (38.1 mm) backset

Length of case (A) = 2-9/64" (54.4 mm)

Latchbolt: Top bolt

Auxiliary Bolt: Bottom bolt that deadlocks the latchbolt to prevent "loiding" or case-knife entry.

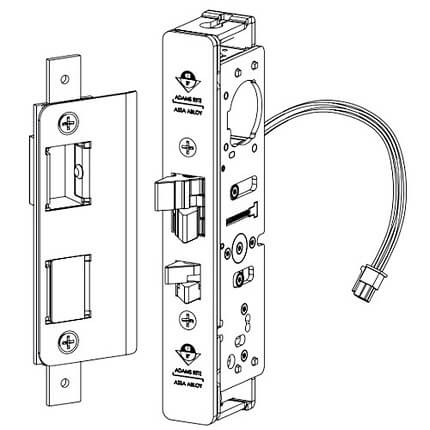

Strike: This deadlatch comes in a choice of strikes:

• 4304 Strike: Surface mounted for easy retrofits.
• 4901 Strike: 4-3/4" mortised flush version when covering existing MS® deadlock preparation or for new applications.

Strike is available with radius profiles for pairs of doors and with extended lips of center hung for thick door applications.

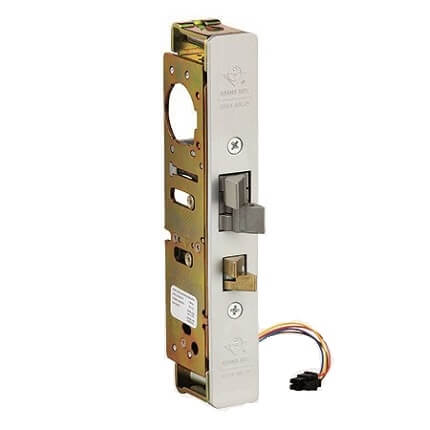

Voltage: The deadlatch operates on 12, 16 or 24 VDC power and is rated for continuous duty. Equipped with a quick connect plug in type connector for easy installation.

• Current Draw/Amps 0.44A at 12VDC 0.458A at 16VDC
• 0.23A at 24VDC Required 16 VDC adapter (P/N VA 7400-16VDC)

Installation: For details on how to install this deadlatch, see our Installation Instructions, or view video clip above.

Operation: Turn the key, apply voltage, or operate the handle/paddle to release the spring-loaded latchbolt. Always operable from the inside via handle/paddle device (available separately). Electrically-rated for continuous duty for timed applications. Easily interfaces with other access control system elements. Available in fail secure configuration only.

Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter and MS® cam, available separately. The lock accepts a cylinder from either or both sides.

Compatible Cylinders:

• Adams Rite #4036 - Mortise Cylinder
• Adams Rite #4066 - Thumbturn Insert

Compatibility:

• Interchangeable without stile modification for MS® Deadlocks or 4500 and 4900 Deadlatches.
• Cannot be used in conjunction with the 4600M deadlatch handle.

Additional Options: Latch status monitoring is available.

See our 4300 RITE Pack with multiple faceplates included.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 5 year warranty against defects in materials and workmanship.
