Adams Rite Deadlock 5500, Hardware Set, For Sliding Wood Doors

Adams Rite Deadlock 5500, Hardware Set, For Sliding Wood Doors
Adams Rite

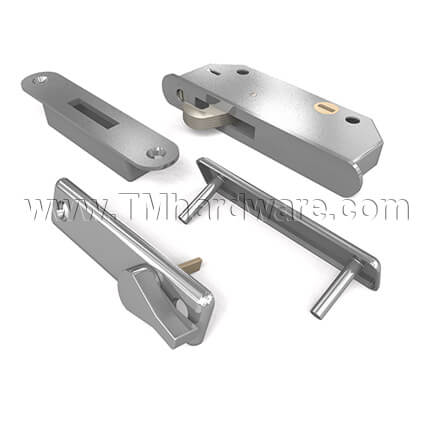

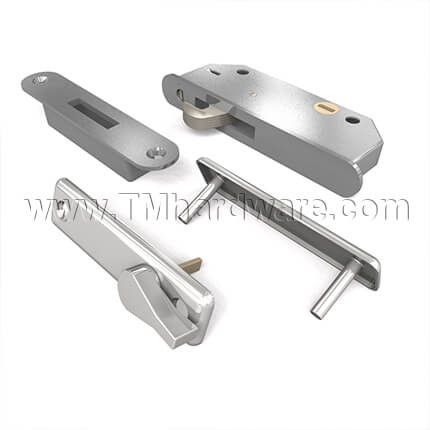

This model is a deadlock hardware set for sliding wood doors that includes the lockset, strike and operators. The package features the 5017 Deadlock with an adjustable hookbolt, and operators for both the interior and exterior of the door. Available in a choice of finishes, choose from the dropdown below.

See full product details and specs in the tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      AR5500-626
    • Market price:$162.00
      • save 35%
    • Starting price: Price: $105.30 per set

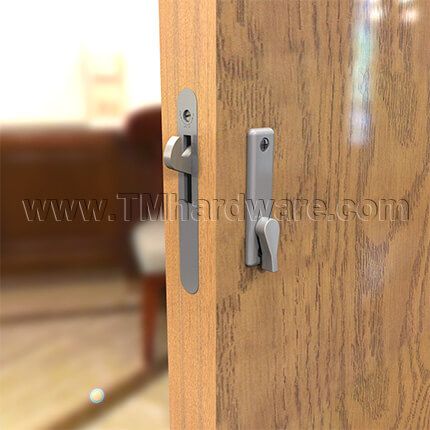

    This deadlock hardware set is for sliding wood doors.

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    • 1-3/16" (30.2 mm) / 1-1/4" (31.8 mm) including the faceplate

    Faceplate: Ends are radius design

    Bolt: Three-ply laminated stainless steel

    • Throw is easily adjusted by means of a screw in the faceplate.
    • Self-protecting bolt prevents damage or accidental lockout by retracting immediately upon contact with the jamb.

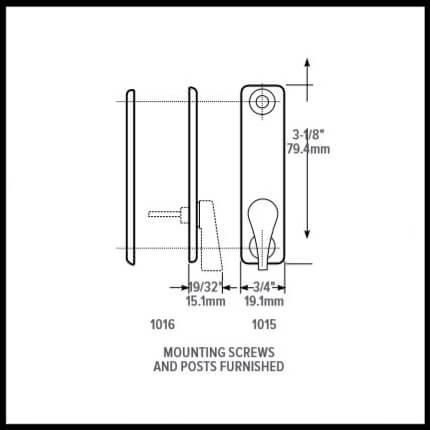

    Operators:

    • Interior: 1004 Turn Lever is zinc alloy with stainless steel escutcheon for interior activation of lock. Spindle is hardened steel, plated for corrosion resistance.
    • Exterior: 1016 Blank Plate escutcheon with emergency override access location on exterior of door.

    Installation: The deadlock is mounted by throughbolts which also secure the inside turn and outside cylinder when installed. For details on how to install this deadlock, see our Installation Instructions.

    Operation: 45° rotation of 1004 Turn Lever projects or retracts bolt.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock 4070, Short Throw, For Narrow Stile Doors.

      • SKU
        AR5500-626
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      5500
    • Product Details
      • Included Parts
        Deadlock, Strike Plate, Lever, Blank Plate, Mounting Screws
      • Case Material
        Stainless Steel
      • Faceplate Material
        Stainless Steel
      • Bolt Material
        Three-ply laminated stainless steel
      • ANSI / BHMA Grade
        Grade 2
      • Interior Operator
        1004 Turn Lever
      • Exterior Operator
        1016 Blank Plate

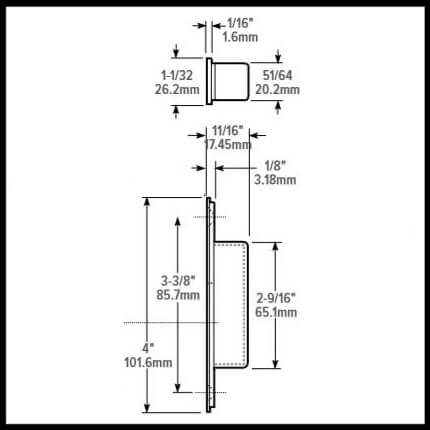

      • Strike
        4810 Strike

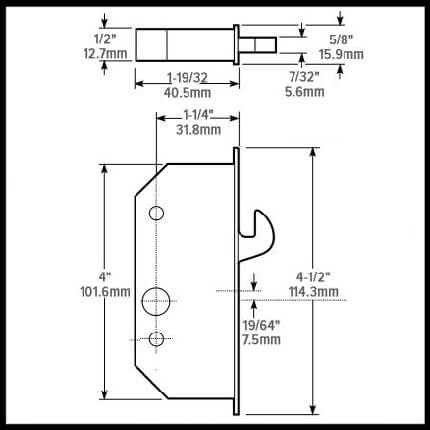

      • Deadlock
        5017 Deadlock / Deadlatch

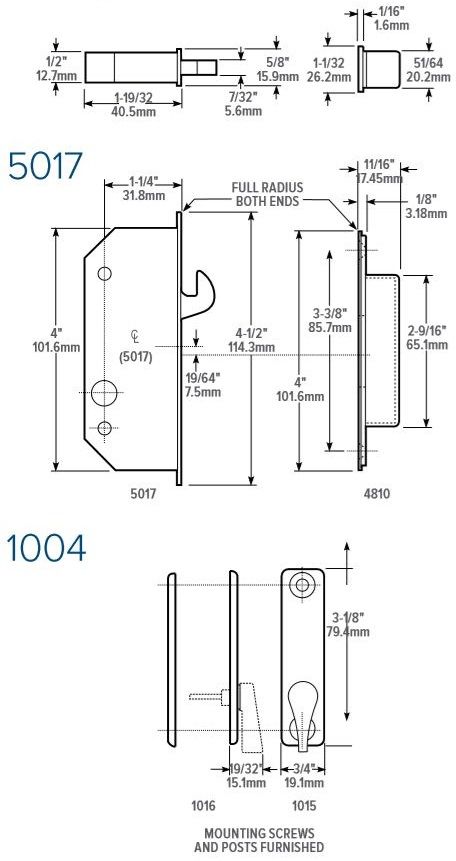

    • Dimensions
      • Case Dimensions
        1-19/32" L x 1/2" W x 4" H
      • Faceplate Dimensions
        5/8" L x 4-1/2" H
      • Cylinder Backset
        1-1/4" Backset
    • Installation
      • Door Type
        Sliding Door
      • Door Material
        Wood
      • Door Thickness
        1-1/4" Thick
    • Finishes
      • Finish
        Satin Chrome (US26D), Black Anodized (335)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty
