Adams Rite Deadlock 5017, Adjustable Bolt, For Sliding Wood Doors

Adams Rite Deadlock 5017, Adjustable Bolt, For Sliding Wood Doors
Adams Rite

This model is a deadlock/deadlatch for sliding wood doors. The lock features a self-protecting bolt and adjustable bolt projection. The 5017 Deadlock provides the same strength that the MS1847 Deadlock provides for metal stiles, with a deeper backset that clears the recessed jambs used in wood doors. The product includes the lock body only; cylinder pull and/or thumbturn need to be purchased separately. Available in a choice of latch configurations, choose from the dropdown below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR5017-00
    • Market price:$75.00
      • save 35%
    • Starting price: Price: $48.75 per item


    This deadlock/deadlatch is for sliding wood doors.

    Please note, strike, cylinder pull and/or turn are not included with this product and are available for purchase separately.

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    • 1-3/16" (30.2 mm) / 1-1/4" (31.8 mm) including the faceplate

    Faceplate: Ends are radius design

    Bolt: Three-ply laminated stainless steel

    • Throw is easily adjusted by means of a screw in the faceplate.
    • Self-protecting bolt prevents damage or accidental lockout by retracting immediately upon contact with the jamb.

    Latch Configuration: This deadlock comes in a choice of two options:

    • Standard
    • Self-latching - Bolt is spring loaded for automatic locking, so when the door gets closed and the bolt makes contact with the preparation in the jam it will automatically latch.

    Installation: The deadlock is mounted by throughbolts which also secure the inside turn and outside cylinder when installed. For details on how to install this deadlock, see our Installation Instructions.

    Operation: 45° rotation of the turn or key projects or retracts the bolt.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock 4070, Short Throw, For Narrow Stile Doors.

      • SKU
        AR5017-00
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      5017-00; 5017-02
    • Latch Configuration
      Standard, Self-latching
    • Product Details
      • Included Parts
        Deadlock, Faceplate, Mounting Screws
      • Case Material
        Stainless Steel
      • Bolt Material
        Three-ply laminated stainless steel
      • ANSI / BHMA Grade
        Grade 2

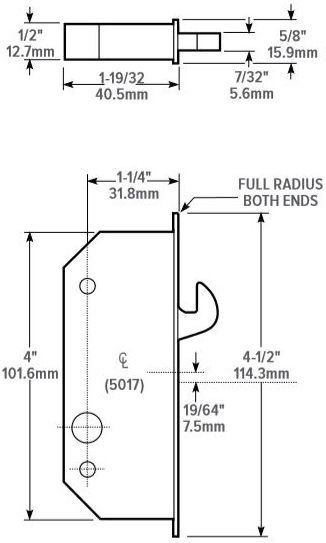

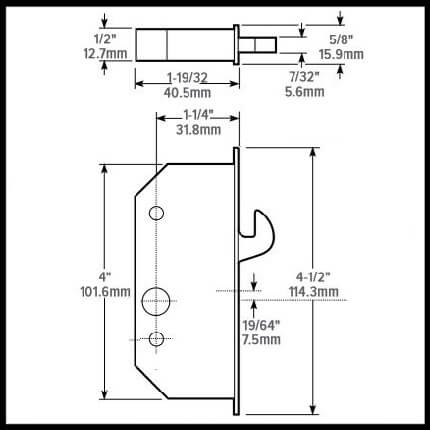

    • Dimensions
      • Case Dimensions
        1-19/32" L x 1/2" W x 4" H
      • Faceplate Dimensions
        5/8" W x 4-1/2" L
      • Cylinder Backset
        1-1/4" Backset
    • Installation
      • Door Type
        Sliding Door
      • Door Material
        Wood
    • Finishes
      • Finish
        Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty
