Adams Rite Deadlock 4070 Series, Short Throw, For Narrow Stile Doors

Adams Rite Deadlock 4070 Series, Short Throw, For Narrow Stile Doors
Adams Rite

This model is a short throw deadlock for narrow stile doors. The lock provides security for a conventionally projected bolt in installations where the long throw MS® Deadlock cannot be accomodated. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in many options, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR4073-313
    • Market price:$192.00
      • save 35%
    • Starting price: Price: $124.80 per item


    This short throw deadlock is for narrow stile doors.

    Please note, strike, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

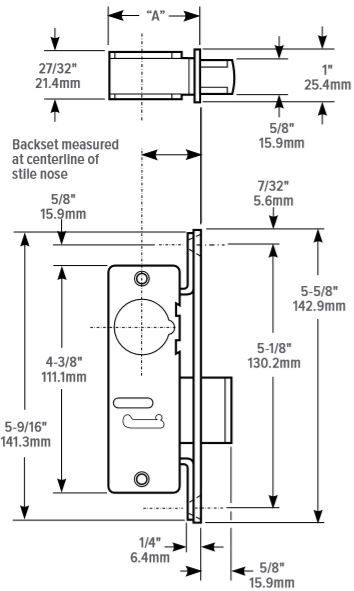

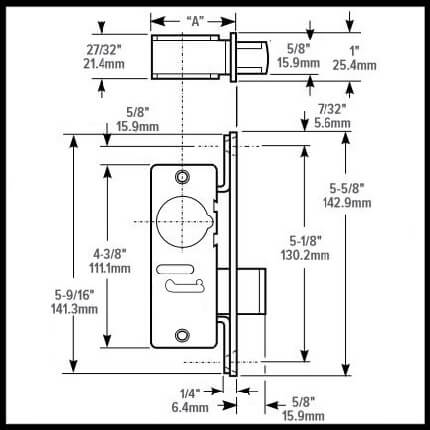

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    This deadlock comes in a choice of three cylinder backsets:

    • 7/8" (22.2 mm) backset

    Length of case (A) = 1-37/64" (40.1 mm)

    • 31/32" (24.6 mm) backset

    Length of case (A) = 1-5/8" (41.3 mm)

    • 1-1/8" (28.6 mm) backset

    Length of case (A) = 1-25/32" (45.2)

    Strike: For metal installation, a slot in the door jamb serves as the strike. For wood installation, 4170 Trim Strike is available separately.

    Door Type: For narrow stile doors. Not designed for use in bottom rail.

    Installation: For details on how to install this deadlock, see our Installation Instructions.

    Operation: 180° turn of the key or thumbturn projects or retracts the bolt.

    Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter with special cam dimensions, available separately. Cylinders with such cams can be readily obtained from most cylinder manufacturers. The lock accepts a cylinder from either or both sides.

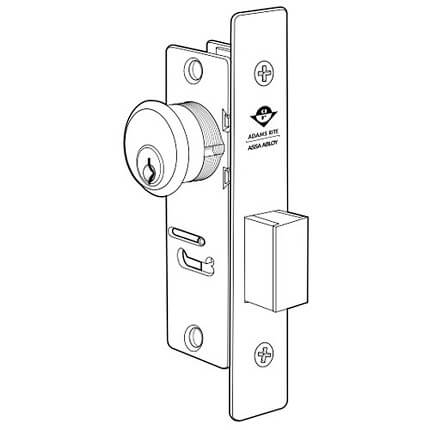

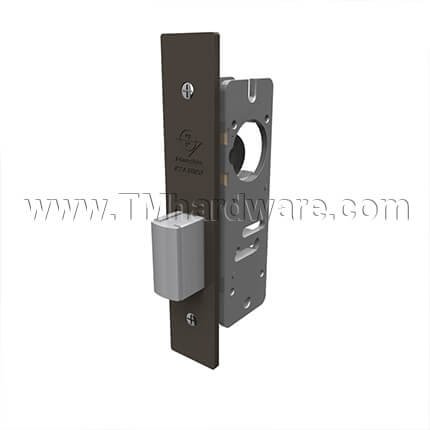

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock 2331, Heavy Duty, For Hollow Metal or Wood Sliding Doors.

      • SKU
        AR4073-313
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      4070; 4071; 4072; 4073
    • Product Details
      • Included Parts
        Deadlock, Faceplate, Mounting Screws
      • Case Material
        Steel with corrosion resistant plating
      • Faceplate Type
        Flat Faceplate, Radius Faceplate, Bevel Faceplate, No Faceplate, No Strike Plate
      • ANSI / BHMA Grade
        Grade 2
    • Dimensions
      • Case Dimensions
        1" W x 5-9/16" H
        Length varies with cylinder backset
      • Faceplate Dimensions
        1" W x 5-5/8" H
      • Bolt Dimensions
        5/8" x 1-1/4"
      • Bolt Throw
        5/8" Throw
      • Cylinder Backset
        7/8" Backset, 31/32" Backset, 1-1/8" Backset
    • Installation
      • Door Type
        Narrow Door
      • Handing
        LH or RHR, RH or LHR, Non Handed
    • Finishes
      • Finish
        Dark Bronze Anodized Aluminum (313), Black Anodized (335), Clear Anodized Aluminum (US28)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty
