Adams Rite Deadlock 2331, Heavy Duty, For Hollow Metal or Wood Sliding Doors

Adams Rite Deadlock 2331, Heavy Duty, For Hollow Metal or Wood Sliding Doors
Adams Rite

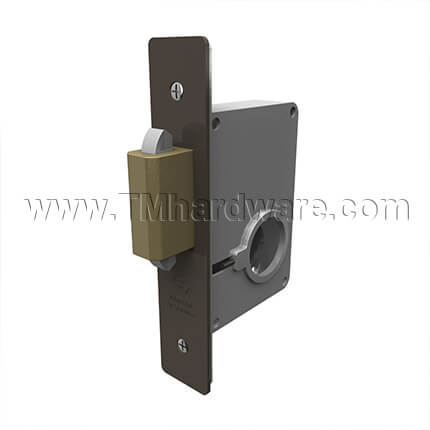

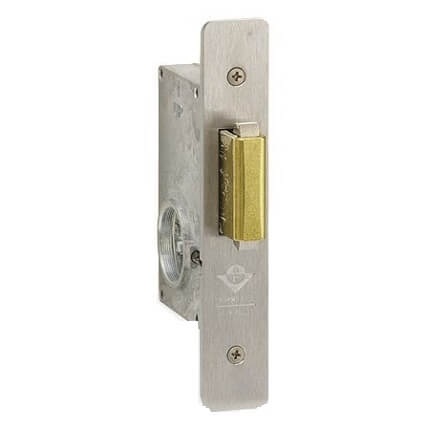

This model is a heavy duty deadlock for hollow metal or wood sliding doors. The massive brass bolt expands two stainless steel dogs into the strike to secure the door. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in a choice of finishes, choose from the dropdown below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR2331-121
    • Market price:$369.00
      • save 35%
    • Starting price: Price: $239.85 per item


    This heavy duty deadlock is for hollow metal or wood sliding doors.

    Please note, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    Installation: For details on how to install this deadlock, see our Installation Instructions.

    Operation: 360° turn of the key or thumbturn extends and projects or retracts and withdraws the bolt. Key can be removed only when the bolt is positively locked or totally retracted.

    Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter with special cam dimensions, available separately. Cylinders with such cams can be readily obtained from most cylinder manufacturers. The lock accepts a cylinder from either or both sides.

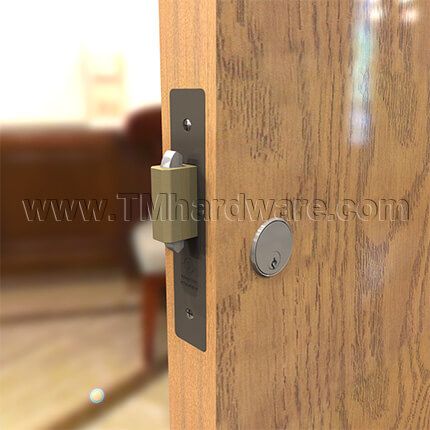

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock MS1950, Stainless Steel, For Narrow Stile Aluminum Doors.

      • SKU
        AR2331-121
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      2331
    • Product Details
      • Included Parts
        Deadlock, Faceplate, Strike Plate, Mounting Screws
      • Case Material
        Zinc alloy
      • Faceplate Material
        Brass
      • Bolt Material
        Brass with stainless steel dogs
      • Strike Material
        Brass with four mounting screws, same trim finish as faceplate
      • ANSI / BHMA Grade
        Grade 1

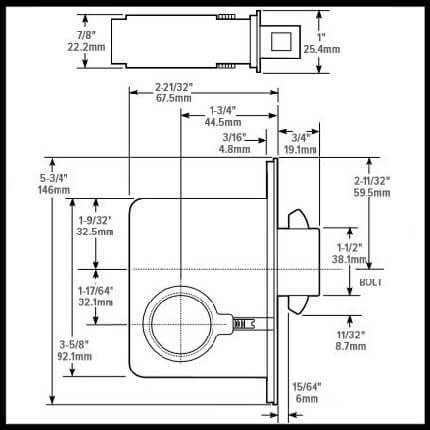

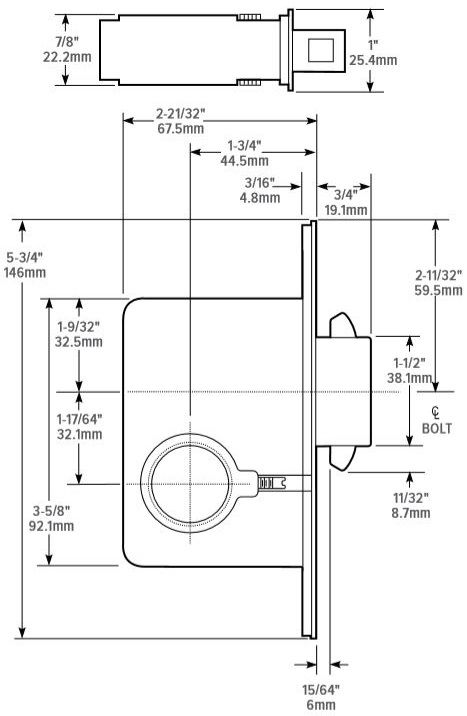

    • Dimensions
      • Case Dimensions
        2-5/8" L x 7/8" W x 3-5/8" H
      • Faceplate Dimensions
        1" W x 5-3/4" H
      • Bolt Dimensions
        1/2 "x 1-1/2"
      • Bolt Throw
        3/4" Throw
      • Strike Dimensions
        1/8" x 1" x 4-11/16"
      • Cylinder Backset
        1-3/4" Backset
      • Bolt Expansion
        11/32" Expansion
      • Strike Opening
        5/8" x 1-5/8"
    • Installation
      • Door Type
        Sliding Door
      • Door Material
        Hollow Metal, Wood
    • Finishes
      • Finish
        Dark Bronze Anodized (121), Polished Brass (US3), Polished Chrome (US26), Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty
