Adams Rite Deadlatch 4300RP, Steel Hawk® Electrified Deadlatch, For Narrow Stile Aluminum Doors, Multiple Faceplates Included

This model is a RITE Pack electrified deadlatch for narrow stile aluminum swinging doors. The pack contains a 4300 Steel Hawk Deadlatch and four faceplates. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in a choice of backset and strike, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      AR4300-2-1RP
    • Market price:$500.00
      • save 30%
    • Starting price: Price: $350.00 per set


    This RITE Pack electrified deadlatch is for narrow stile aluminum swinging doors.

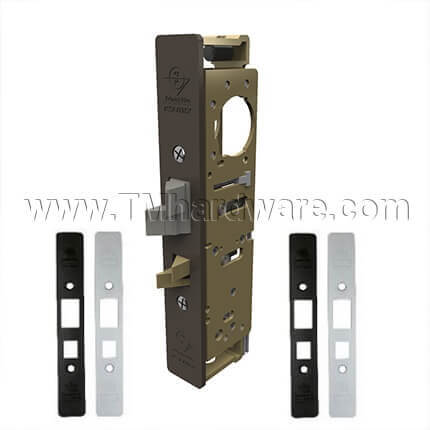

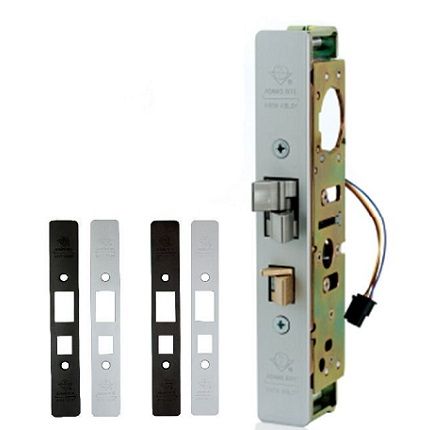

    The pack contains a 4300 Steel Hawk Deadlatch and four faceplates.

    • 2 Flat Faceplates - Dark Bronze Anodized (313) and Clear Anodized (628) Finishes
    • 2 Radius Faceplates - Dark Bronze Anodized (313) and Clear Anodized (628) Finishes

    Please note: Turn, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    This deadlatch comes in a choice of two backsets:

    • 31/32" (24.6 mm) backset

    Length of case (A) = 1-19/32" (40.5 mm)

    • 1-1/8" (28.6 mm) backset

    Length of case (A) = 1-49/64" (44.8)

    Latchbolt: Top bolt

    Auxiliary Bolt: Bottom bolt that deadlocks the latchbolt to prevent "loiding" or case-knife entry.

    Strike: This deadlatch comes in a choice of strikes:

    • 4304 Strike: Surface mounted for easy retrofits.
    • 4901 Strike: 4-3/4" mortised flush version when covering existing MS® deadlock preparation or for new applications.

    Voltage: The deadlatch operates on 12, 16 or 24 VDC power and is rated for continuous duty. Equipped with a quick connect plug in type connector for easy installation.

    • Current Draw/Amps 0.44A at 12VDC 0.458A at 16VDC
    • 0.23A at 24VDC Required 16 VDC adapter (P/N VA 7400-16VDC)

    Installation: For details on how to install this deadlatch, see our Installation Instructions, or view video clip above.

    Operation: Turn the key, apply voltage, or operate the handle/paddle to release the spring-loaded latchbolt. Always operable from the inside via handle/paddle device (available separately). Electrically-rated for continuous duty for timed applications. Easily interfaces with other access control system elements. Available in fail secure configuration only.

    Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter and MS® cam, available separately. The lock accepts a cylinder from either or both sides.

    Compatibility:

    • Interchangeable without stile modification for MS® Deadlocks or 4500 and 4900 Deadlatches.
    • Cannot be used in conjunction with the 4600M deadlatch handle.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock 5500, Hardware Set, For Sliding Wood Doors.

      • SKU
        AR4300-2-1RP
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      4300-2RP; 4300-3RP
    • Product Details
      • Included Parts
        Deadlatch, Faceplate, Strike Plate, Mounting Screws, Universal Cam Plug
      • Case Material
        Steel with corrosion resistant plating
      • Faceplate Type
        Flat Faceplate, Radius Faceplate
      • Bolt Type
        Latch Bolt, Auxiliary Bolt
      • Bolt Material
        Latch Bolt: Stainless Steel
        Auxiliary Bolt: Metal
      • Strike Mounting
        Surface Mounted, Mortised
      • ANSI / BHMA Grade
        Grade 1
      • Compatibility
        MS® Deadlocks, 4500 Deadlatch, 4900 Deadlatch
      • Voltage
        12V, 16V and 24V DC

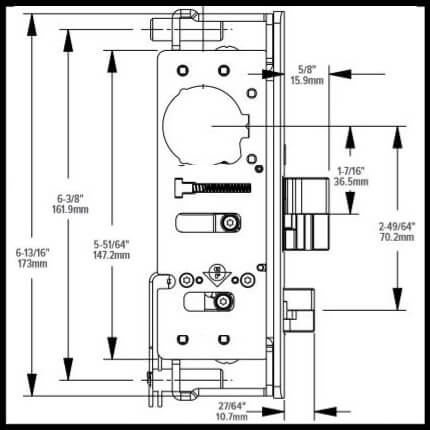

    • Dimensions
      • Case Dimensions
        63/64" W x 5-51/64" H
        Length varies with cylinder backset
      • Faceplate Dimensions
        1" W x 6-13/16" H
      • Bolt Dimensions
        Latch Bolt: 5/8" x 1"
      • Bolt Throw
        Latch Bolt: 5/8"
        Auxiliary Bolt: 27/64"
      • Cylinder Backset
        31/32" Backset, 1-1/8" Backset
    • Installation
      • Door Type
        Narrow Door, Swinging Door
      • Door Material
        Aluminum
      • Handing
        Non Handed
      • Door Thickness
        1-3/4" Minimum Thickness
    • Special Features
      • Electrified Option
        Yes
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        5 Year Limited Warranty
