Adams Rite Deadlatch 4510, Standard Duty, For Aluminum Swinging Doors - QUICKSHIP

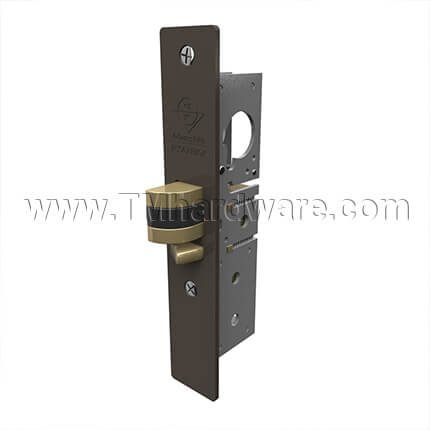

Adams Rite 4510 Deadlatch
Adams Rite

This model is a standard duty deadlatch for aluminum swinging doors. The lock provides flexible traffic control during and after business hours for applications that require free entrance at certain times and exit only at other times. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in many options, choose from the dropdowns below.

See full product details and specs in the tabs below.

For more options, See Our Adams Rite Deadlatch 4510, Standard Duty, For Aluminum Swinging Doors

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR4510-35-101-313.
    • Market price:$105.00
      • save 35%
    • Starting price: Price: $68.25 per item
    In stock (12 items available)


    This standard-duty deadlatch is for aluminum swinging doors.

    For more options, See Our Adams Rite Deadlatch 4510, Standard Duty, For Aluminum Swinging Doors

    Please note: Turn, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    • 1-1/8" (28.6 mm) backset

    Length of case (A) = 1-49/64" (44.8)

    Latch Bolt: Top bolt that is easily reversible without special tools. For details on how to reverse the bolt, see our Re-handing Instructions.

    Auxiliary Bolt: Bottom bolt that deadlocks the latchbolt to prevent "loiding" or case-knife entry.

    Strike:

    • 4901 Strike: 4-5/8" mortised strike to cover slot strike of MS lock

    Strikes are available for flat jambs where door closes flush.

    Installation: For details on how to install this deadlatch, see our Installation Instructions.

    Operation: Turn the key or operate the handle/paddle to retract the spring-loaded latchbolt. To holdback the bolt and allow the door to be free swinging, fully retract the bolt and secure by the reverse turn of the key.

    Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter and MS® cam, available separately. The lock accepts a cylinder from either or both sides.

    Compatible Cylinders:

    Compatibility: Interchangeable without stile modification with any MS1850S Deadlock of the same backset and faceplate shape. However, the 4510 Deadlatch does not provide the same maximum security level as the MS® Deadlock.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlatch 4300, Steel Hawk® Electrified Deadlatch, For Narrow Stile Aluminum Doors.

      • SKU
        AR4510-35-101-313.
    • QuickShip
      Yes
    • Manufacturer
      Adams Rite
    • MPN
      4510; 4511; 451W; 4512; 4513
    • Product Details
      • Included Parts
        Deadlatch, Faceplate, Strike Plate, Mounting Screws
      • Case Material
        Steel with corrosion resistant plating
      • Faceplate Type
        Flat Faceplate
      • Bolt Type
        Latch Bolt, Auxiliary Bolt
      • Bolt Material
        Metal with hardened steel internal pins
      • Strike Type
        Flat / Standard Jamb
      • Strike Mounting
        Mortised
      • ANSI / BHMA Grade
        Grade 1
      • Compatibility
        MS1850S Deadlock
    • Dimensions
      • Case Dimensions
        57/64" W x 5-51/64" H
        Length varies with cylinder backset
      • Faceplate Dimensions
        1" W x 6-7/8" H
      • Bolt Dimensions
        1/2" x 1"
      • Bolt Throw
        1/2"
      • Cylinder Backset
        7/8" Backset
      • Strike Size
        4-5/8" Strike
    • Installation
      • Door Type
        Swinging Door
      • Door Material
        Aluminum
      • Handing
        LH or RHR, RH or LHR
    • Finishes
      • Finish
        Dark Bronze Anodized Aluminum (313), Satin Aluminum, Clear Anodized (628)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty

    Click to Print - Installation Instructions

    Click to Print - Re-handing Instructions
