Adams Rite Deadlock 1830 Series, Bottom Rail Locking, For Ultra Narrow Stile Doors

Adams Rite Deadlock 1830 Series, Bottom Rail Locking, For Ultra Narrow Stile Doors
Adams Rite

This model is a bottom rail deadlock for ultra narrow stile aluminum or tempered glass doors. The lock is tamper proof with an armored face plate that protects the minimum threshold strike opening. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in a choice of cylinder heights and finishes, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR1830-02-628
    • Market price:$153.00
      • save 30%
    • Starting price: Price: $107.10 per item

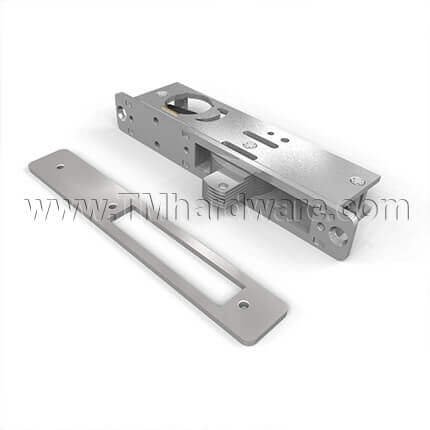

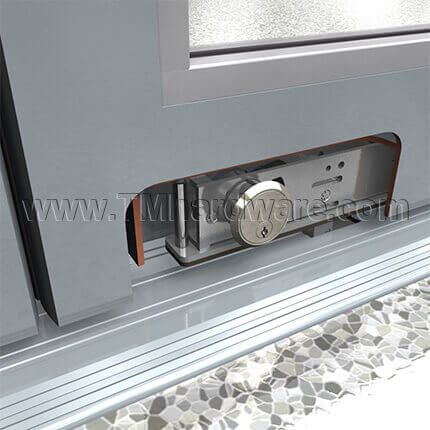

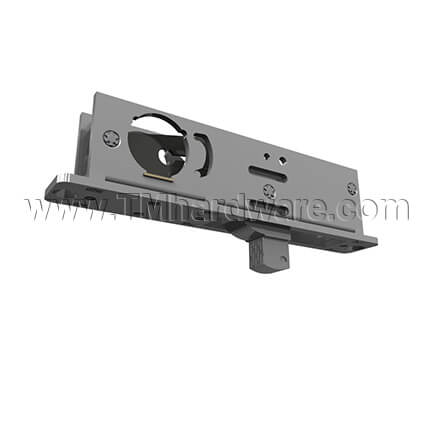

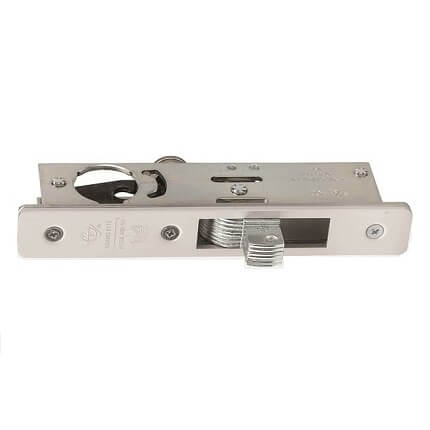

    This bottom rail deadlock is for ultra narrow stile aluminum or tempered glass doors.

    Please note, strike plate, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

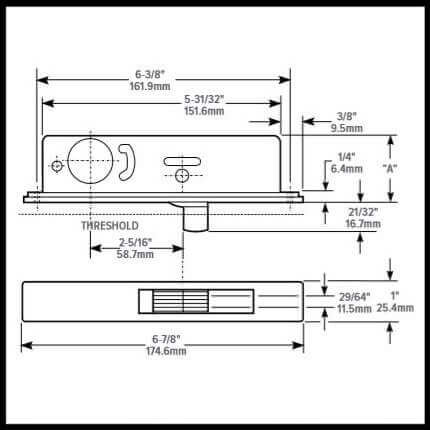

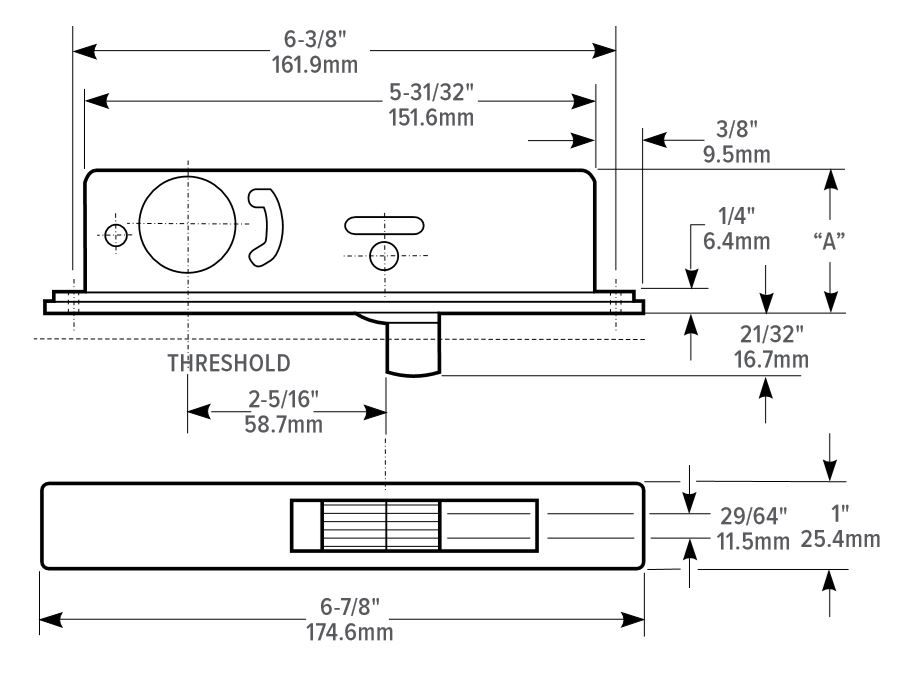

    Cylinder Height: Distance from the bottom of the door to the center of the cylinder hole.

    This deadlock comes in a choice of two cylinder heights:

    • 31/32" (24.6 mm) height

    Height of case (A) = 1-5/8" (41.3 mm)

    • 1-1/8" (28.6 mm) height

    Height of case (A) = 1-25/32" (45.2)

    Face Plate: Protects cylinder set screws from tampering and keeps them from loosening.

    Bolt: Threshold strike opening kept to a practical minimum, avoiding collection of debris or snagging on high-heeled shoes.

    Installation: For details on how to install this deadlock, see our Installation Instructions.

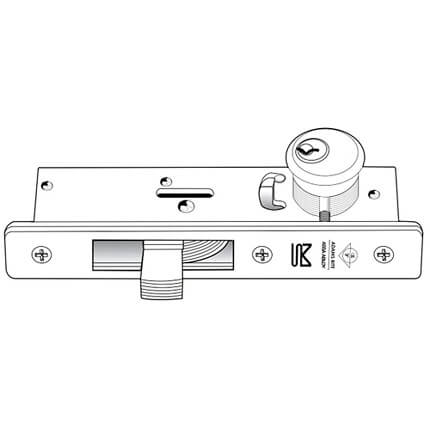

    Operation: 360° turn of the key or thumbturn projects or retracts the counterbalanced bolt. The key can be removed only when the bolt is in a positively locked or unlocked position. The lock accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam, available separately. The lock accepts a cylinder from either or both sides.

    Compatible Cylinders:

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock RT1050, RITE Touch, For Interior Glass Doors.

      • SKU
        AR1830-02-628
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      1830-02; 1830-03
    • Cylinder Height
      31/32" Height, 1-1/8" Height
    • Product Details
      • Included Parts
        Deadlock, Faceplate, Mounting Screws
      • Case Material
        Steel with corrosion resistant plating
      • Bolt Material
        Six-ply laminated steel with eight plies within case. Center ply has alumina-ceramic core to deter hacksaw attack.
      • ANSI / BHMA Grade
        Grade 1
    • Dimensions
      • Case Dimensions
        6" L x 1" W
        Height varies with cylinder height
      • Faceplate Dimensions
        6-7/8" L x 1" W
      • Bolt Dimensions
        15/32" x 5/8" x 2-1/8"
      • Bolt Throw
        5/8" Throw
    • Installation
      • Door Type
        Narrow Door, Swinging Door
      • Door Material
        Aluminum, Glass
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty
