Adams Rite Deadlock MS1861 Series MS®, Bottom Rail Locking, For Ultra Narrow Stile Doors

Adams Rite Deadlock MS1861 Series MS®, Bottom Rail Locking, For Ultra Narrow Stile Doors
Adams Rite

This model is a bottom rail deadlock that provides maximum security for ultra narrow stile aluminum or tempered glass doors. The lock utilizes hardened stainless steel bolts for the limited space of aluminum doors with a narrow stile or glass doors that have no stile at all. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in a choice of bolt operations, choose from the dropdown below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      ARMS1861-01-603-1B
    • Market price:$172.00
      • save 35%
    • Starting price: Price: $111.80 per item


    This bottom rail deadlock provides maximum security for ultra narrow stile aluminum or tempered glass doors.

    Please note, cylinder and/or thumbturn and tube spacers (if required) are not included with this product and are available for purchase separately.

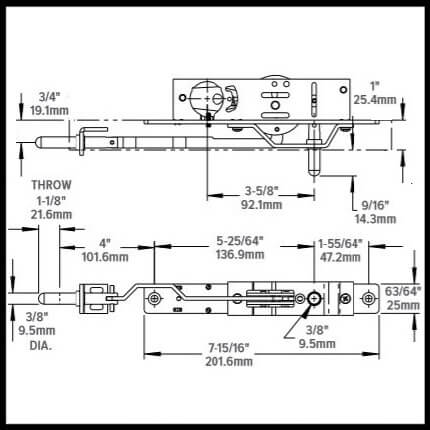

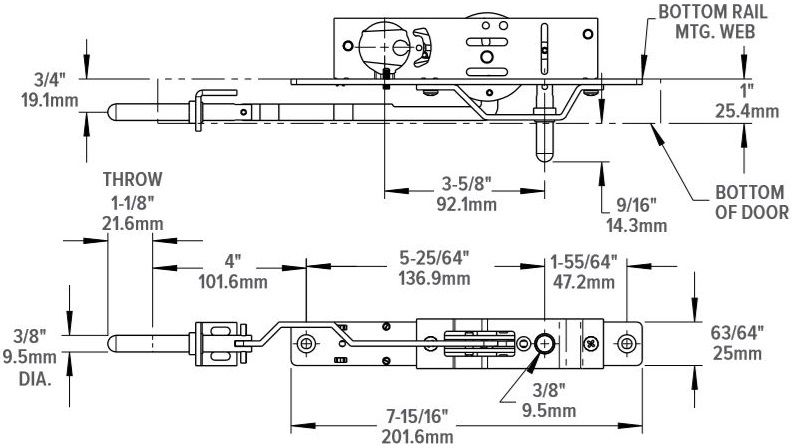

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    • Vertical bolt: 2-1/4" (57.2 mm) minimum backset
    • Vertical and horizontal bolt: 5-3/4" (146.1 mm) backset

    Cylinder Height: Distance from the bottom of the door to the center of the cylinder hole.

    Bolt: Allows simple drilled strike holes of a relatively small size to minimize the nuisance and danger presented by some threshold strikes in collecting debris or snagging on high-heeled shoes.

    This deadlock comes in a choice of two bolt operations:

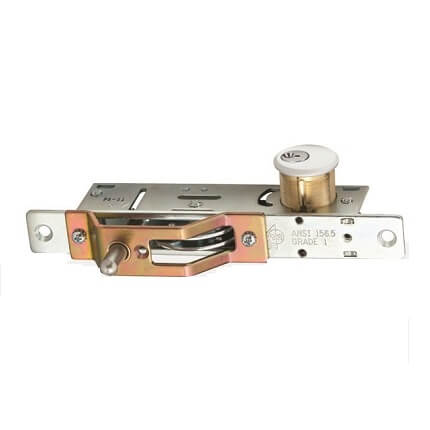

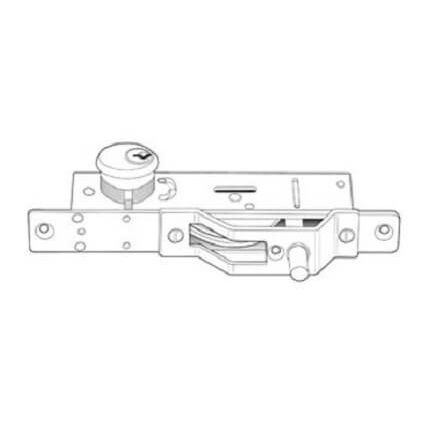

    • One Point Deadlock (MS1861-01) - Vertical Bolt

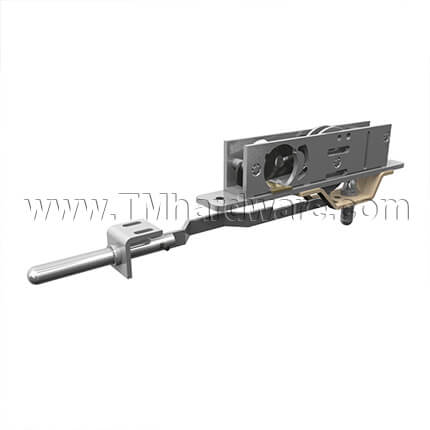

    • Two Point Deadlock (MS1861-02) - Vertical and Horizontal Bolt

    The 4014 Conversion Kit is available separately for multi-point locking applications.

    Finish: Zinc plated steel (603)

    Installation: For details on how to install this deadlock, see our Installation Instructions.

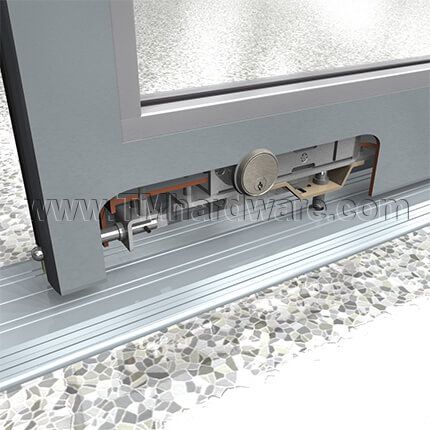

    In metal installation, 7/16" (11.1 mm) drilled holes in the threshold are required. For MS1861-02 configuration with both vertical and horizontal bolts, drilled holes are also required in the jamb or opposite door.

    Operation: 360° turn of the key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when the bolt is in a positively locked or unlocked position. Lock accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam, available separately. Lock accepts cylinder from either or both sides.

    Compatible Cylinders:

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock MS1850SN, ANSI Size, For Hollow Metal or Wood Doors.

      • SKU
        ARMS1861-01-603-1B
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      MS1861-01; MS1861-02
    • Cylinder Height
      1-7/8" Height
    • Product Details
      • Included Parts
        Deadlock, Mounting Screws
      • Case Material
        Steel with corrosion resistant plating
      • Bolt Type
        Vertical Bolt, Vertical and Horizontal Bolt
      • Bolt Material
        Hardened cylindrical stainless steel
      • ANSI / BHMA Grade
        Grade 1
    • Dimensions
      • Case Dimensions
        6" L x 1" W x 1-13/16" H
      • Bolt Dimensions
        3/8" Diameter
      • Bolt Throw
        Vertical Throw: 13/16"
        Horizontal Throw: 1-1/8"
      • Cylinder Backset
        2-1/4" Backset, 5-3/4" Backset
    • Installation
      • Door Type
        Narrow Door
      • Door Material
        Aluminum, Glass
    • Special Features
      • Maximum Security
        Yes
    • Finishes
      • Finish
        Zinc Plated
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty

    Click to Print

    In metal installation, 7/16" (11.1 mm) drilled holes in the threshold are required. For MS1861-02 configuration with both vertical and horizontal bolts, drilled holes are also required in the jamb or opposite door.
