Adams Rite Exit Device 8600 Series, Concealed Vertical Rod, For Narrow Stile Aluminum Doors

Adams Rite Exit Device 8600 Series, Concealed Vertical Rod, For Narrow Stile Aluminum Doors
Adams Rite

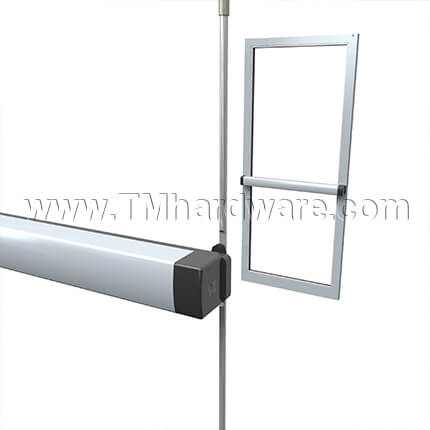

This model is an exit device with a concealed vertical rod for narrow stile aluminum doors. The mechanism features two point locking, with top and bottom bolts for durability and security. The product is designed for applications that require a life-safety exit device. Available in several options, choose from the dropdowns below.

See full product details in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR8611-99
    • Market price:$605.00
      • save 40%
    • Starting price: Price: $363.00 per item


    Adams Rite exit devices offer accessibility that other access control solutions can't match, with a variety of options to suit any application. This exit device with a concealed vertical rod is for narrow stile aluminum doors in non fire-rated applications.

    Click here to print the Adams Rite Exit Device Catalog.

    The product is an exit only device, no entry from outside. Additional trims can be added separately.

    Door Width: For 30" - 48" door opening widths. Standard width bars can be field cut to the next smallest opening width. On pairs of doors, specify half of the total exit opening.

    Door Thickness: For 1-3/4" - 2-1/4" thick doors. Device requires modification when used with cylinder in doors over 1-3/4."

    Stile Width: 2" minimum. Fits narrow, medium and wide stile doors.

    Stile Wall: Doors with stile walls other than 1/8" require modification.

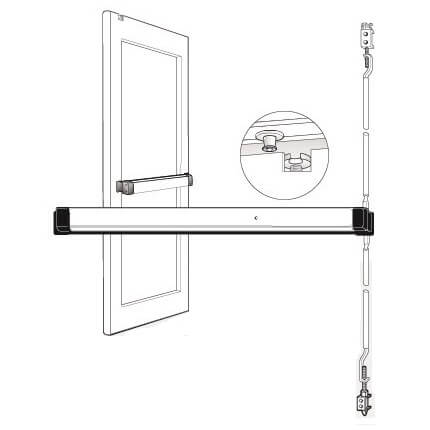

    Top Bolt: The patented top latching mechanism utilizes a rotating top bolt which latches around the header strike, interlocking the door to the frame for a high level of security. Adjustable steel rods protected in contoured covers.

    Bottom Bolt: The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.

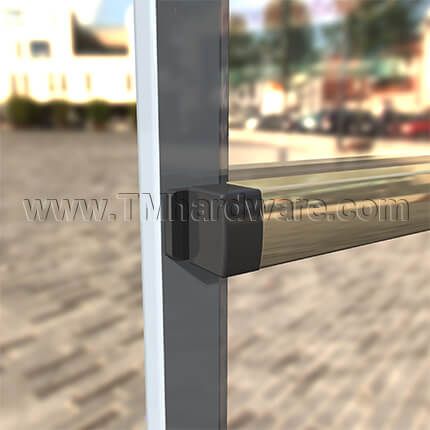

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 5 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Exit Device 8500 / 3600 Series, Concealed Vertical Rod, For Hollow Metal Doors.

      • SKU
        AR8611-99
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      8600; 8600T; 8600-99
    • Product Details
      • Included Parts
        Pushbar, Top Bolt, Bottom Bolt, Header Strike, Machine Screws
      • Exit Device Type
        Concealed Vertical Rod
      • Model
        Life-safety
      • Series
        Adams Rite 8000 / 3000 Series
      • Material
        Extruded Aluminum
      • Bolt
        Top Bolt, Bottom Bolt
      • Rod Type
        Standard Rod, Top Rod Only, No Rod
    • Door Compatibility
      • Door Type
        Single Door, Paired Doors, Narrow Door
      • Door Material
        Aluminum
      • Door Width
        30" Opening Width, 36" Opening Width, 42" Opening Width, 48" Opening Width
      • Door Thickness
        1-3/4" - 2-1/4" Thick
      • Door Height
        For doors up to 66" above the selected bar height
      • Stile Width
        2" minimum width
    • Dimensions
      • Bar Height
        30" - 44" above the floor
      • Projection
        2-5/8" Projection
      • Projection when Dogged
        1-5/8" Projection
    • Installation
      • Handing
        Non Handed
    • Finishes
      • Finish

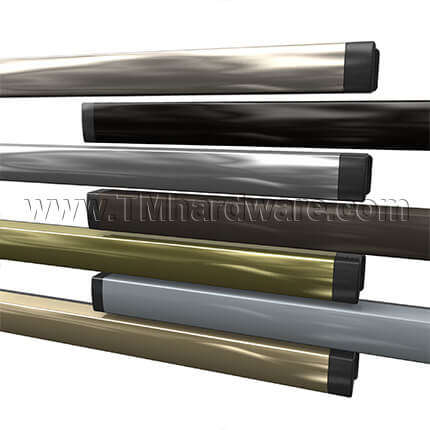

        Polished Brass (US3), Satin Brass (US4), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Anodized (335)
    • Compliance Details
      • Compliance Details
        UL Listed, BHMA Certified, ADA Compliant
      • Warranty
        5 Year Limited Warranty

    Click to Print - Installation Instructions

    Click to Print - Owner's Manual

    UL 305 Panic Hardware

    ANSI/BHMA A156.3-2008 Grade 1 ANSI/BHMA A156.3-2014 Grade 2

    All Adams Rite exit devices fully meet building codes and ADA guidelines for accessibility and clearance.

    Rating

    This exit device comes in a choice of additional options, please contact us for details and pricing.

    Alarm Option: Battery operated option that emits a loud alarm to notify management of unauthorized exit. Suitable for exit devices 36" wide or greater. For more details, see our Alarmed Exit Device Installation.

    Please note, alarm option cannot be combined with any other device option or monitoring option.



    Device Options:

    • Electric Latch Retraction (LR) - Uses solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device.
    • Motorized Latch Retraction (MLR) - Incorporates a powerful and efficient motor to unlatch the exit device while providing a quieter operation than the solenoid option. For more details, see our MLR Device Option Installation.
    • Mechanical Dogging: Latchbolt is held retracted manually, by use of a hex key or cylinder, available separately. Mechanical dogging cannot be used on fire-rated devices. For more details, see our Mechanical Dogging Installation.
    • Electrical Dogging: Latchbolt is held retracted electrically, by use of a motor or solenoid via remote activation. For more details, see our Electrical Dogging Installation.

    Please note, the MLR Device option is supported by a 1 year electro mechanical warranty. When powered by an Adams Rite PS-SE power supply the 1 year warranty is upgraded to 5 years.



    Monitoring Options:

    • Single Switch
    • Dual Switch

    Mounted in the exit device pushbar on the hinge end, the switch can be used to activate a signal light, horn, monitor or other devices. For more details, see our Monitoring Option Installation.

    Please note, 30" exit devices cannot accommodate monitoring options, except when ordered in conjunction with the MLR device option.



    Custom Options:

    • Matching end caps for US finishes only
    • Tall door kit for doors over 66" above bar height up to 120"
    • REX-monitor/signal kits
