Adams Rite Flushlock 4430, Lockset and Deadbolt, For Aluminum and Hollow Metal Sliding Doors

Adams Rite Flushlock 4430, Lockset and Deadbolt, For Aluminum and Hollow Metal Sliding Doors
Adams Rite

This model is a metal and plastic flush lockset with an included deadbolt for aluminum and hollow metal sliding doors. The flushlock combines the time tested and field proven MS1847 Deadlock with a slide button. The lock allows doors to slide freely past other sliding units or stationary panels, with no projecting handles to prevent doors from being stacked in a wall pocket. Available in several options, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR4430-00-00
    • Market price:$63.00
      • save 35%
    • Starting price: Price: $40.95 per item


    Adams Rite flushbolt door locks provide greater key control and are designed to prevent accidental locking of the inactive leaf of paired doors. This metal and plastic flush lockset with an included deadbolt is for aluminum and hollow metal sliding doors.

    The flushlock includes an anti lift lock mechanism - MS1848-09 (radius ends) or MS1848-10 (square ends), and a set of 2 keys for the 4431 model only.

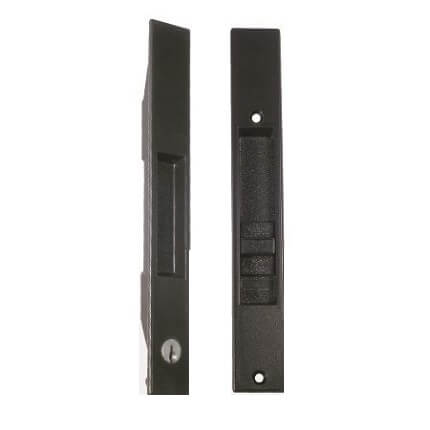

    Lockset: This flushlock comes in a choice of locksets:

    • 4430: Lockset without cylinder
    • 4431: Lockset with cylinder - flush mounted, key in, five pin cylinder with Schlage "C" keyway that projects or retracts the bolt

    Please note, the cylinder is available in keyed different only. Keyed alike cylinders are available by special order in quantity of 50 locksets, please contact us for details and pricing.

    • 4432: Dummy lockset

    Escutcheons: Molded ABS resin plastic. Deeply recessed finger pull on both sides. Fits same cutout as metal 4189, 4190 Flush Locksets.

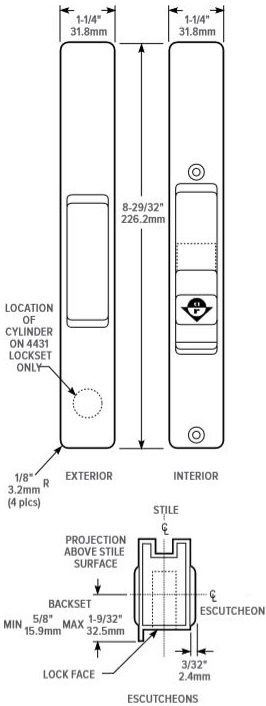

    Backset: Distance from the face of the lock to the escutcheon and cylinder centerline.

    Finish: Satin black

    Installation: For details on how to install this flushlock, see our Installation Instructions.

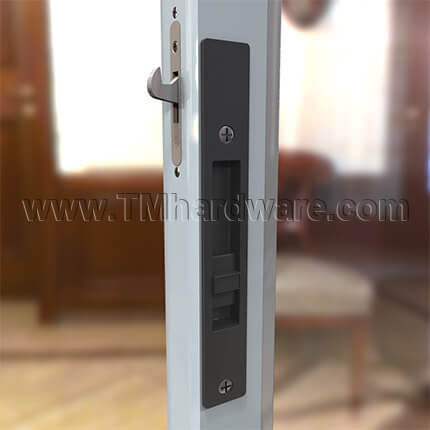

    Operation: The lockset is operated from the inside by a vertical slide button that projects or retracts the deadlock bolt, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time tested and field proven MS1847 Deadlock that features the adjustable, self-protecting bolt. The lock allows doors to slide freely past other sliding units or stationary panels, with no projecting handles to prevent doors from being stacked in a wall pocket.

    Additional Options: Grip pull for use with 4430 and 4431 models is available, please contact us for details and pricing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Flushlock 4189, Lockset and Deadbolt, For Aluminum and Hollow Metal Sliding Doors.

      • SKU
        AR4430-00-00
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      4430; 4431; 4432
    • Product Details
      • Included Parts
        Flushlock, Anti Lift Lock Mechanism, Mounting Screws
      • Lockset Exterior
        Without Cylinder, With Cylinder, Dummy
      • Lock Face
        Without Lock, Radius, Radius Stainless Steel, Square, Square Stainless Steel
      • Escutcheons
        Molded ABS resin plastic

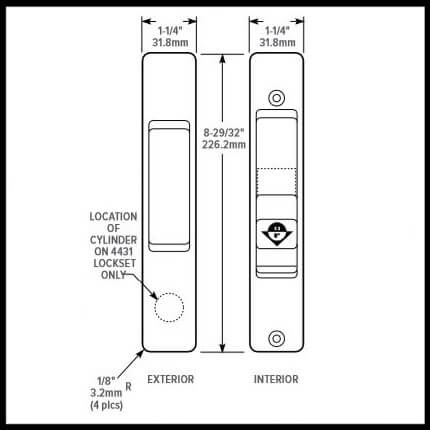

    • Dimensions
      • Stile Thickness
        1" to 1-5/16" Thick, 1-3/8" to 1-5/8" Thick, 1-3/4" to 2" Thick
      • Backset
        5/8" minimum to 1-9/32" maximum
      • Stile Depth
        Backset plus an additional 9/16"
    • Installation
      • Door Type
        Sliding Door
      • Door Material
        Aluminum, Hollow Metal
    • Finishes
      • Finish
        Black
    • Compliance Details
      • Warranty
        10 Year Limited Warranty
