Deltana, 2 Ball Bearings, Steel, Residential Grade, 5 Knuckle, Full Mortise Hinge, 4" x 4" x 1/4" Radius Hinge
This Deltana Hinge is a Residential, Full Mortise, 5 Knuckle 2 Ball Bearings Hinge, and is made of Steel. Size of hinges is 4" x 4" with 1/4" Radius Corner and Button Tip Finials. See below for available finishes.
PRICED PER PAIR
Deltana steel hinges are a reliable value choice for indoor applications. They are available in an array of fine finishes.
Deltana Full Mortised, 5 Knuckle Hinge DTS44R4BB Features:
- Grade: Residential, Full Mortise
- Bearings: 2 Ball Bearings
- Base Material: Steel
- Size: 4" x 4"
- Corners: 1/4" Radius Corner
- Tip: Button Tip Finials
Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Finials: Button Tip Provided. See the additional Finials and Button Tip options available.
Priced Per Pair
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
 Click to see our Full Warranty Policy.
For a list of similar items, see our Deltana, 2 Ball Bearings, Steel, Residential Grade, 5 Knuckle, Full Mortise Hinge, 3.5" x 3.5"
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDTS44R4BB
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelResidential Grade
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge Corner1/4" Radius Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-

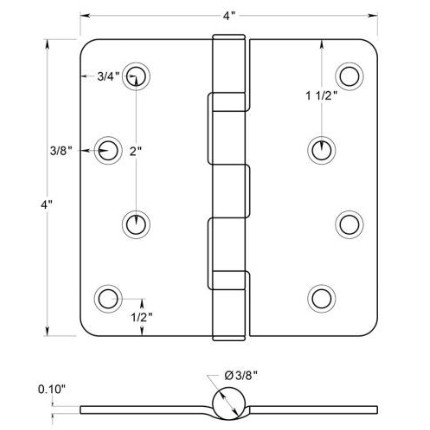

Hinge Size4"x4"
-
Hinge Thickness.085" Thick
-
- Installation
-
Door TypeWooden Door
-
Installation ScrewsWooden Screws #9 x 1" Provided
-
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Antique Brass (US5), Oil-Rubbed Bronze (US10B), Satin Nickel (US15), Antique Nickel (US15A), Polished Chrome (US26), Satin Chrome (US26D)
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
