Deltana, 2 Ball Bearings, Steel, Residential Grade, 5 Knuckle, Full Mortise Hinge, 3.5" x 3.5"
This Deltana Hinge is a Residential, Full Mortise, 5 Knuckle Ball Bearing Hinge, and is made of Steel. Size of hinges is 3-1/2" x 3-1/2" with Square Corners and Button Tip Finials. See below for available finishes.
PRICED PER PAIR-See full product details and specs in the tabs below
This Deltana Hinge is a Residential, Full Mortise, 5 Knuckle Ball Bearing Hinge, and is made of Steel. Size of hinges is 3-1/2" x 3-1/2" with Square Corners and Button Tip Finials. See below for available finishes.
Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Finials: Button Tip Provided. See the additional Finials and Button Tip options available.
Priced Per Pair
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDS35BB-R
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelResidential Grade
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes6 Holes
-

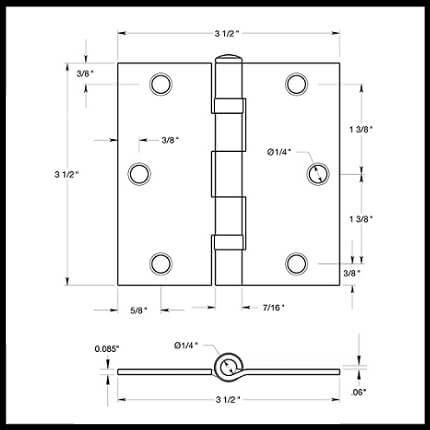

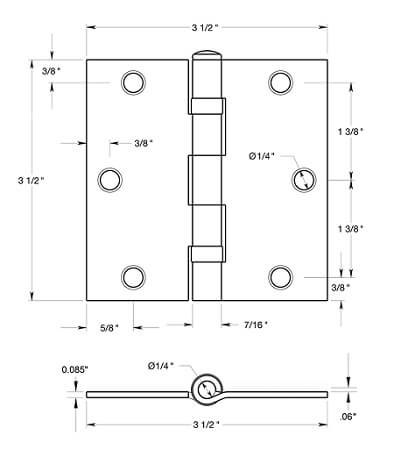

- Dimensions
-
Hinge Size3-1/2" x 3-1/2"
-
Hinge Thickness.085" Thick
-
- Installation
-
Door TypeWooden Door
-
Installation ScrewsWooden Screws #9x3/4" Provided
-
- Finishes
-

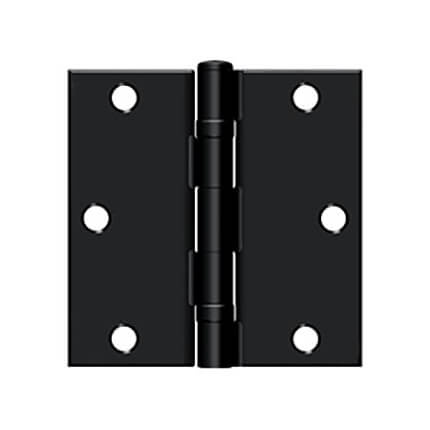

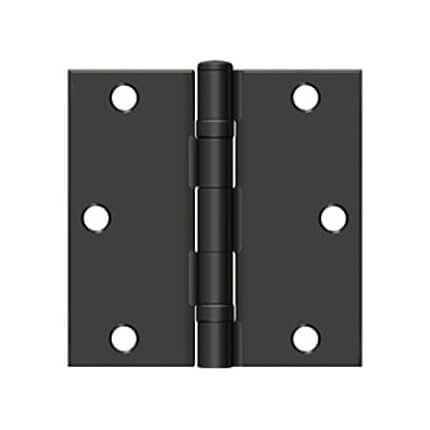

FinishOil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Polished Nickel (US14)
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
