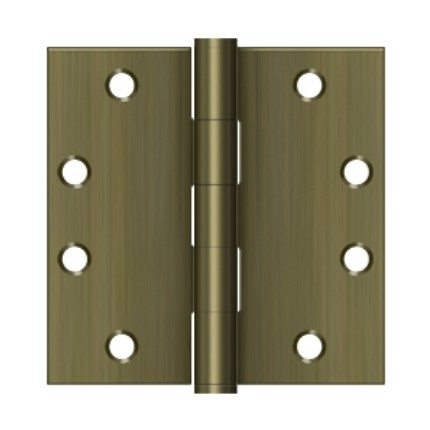

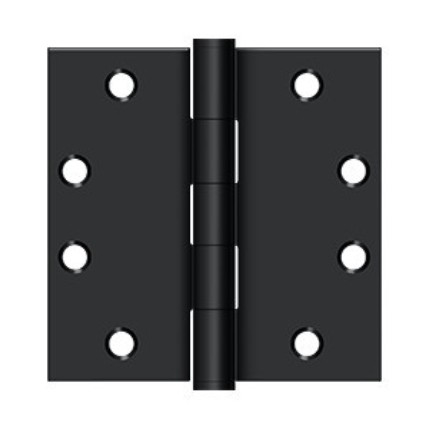

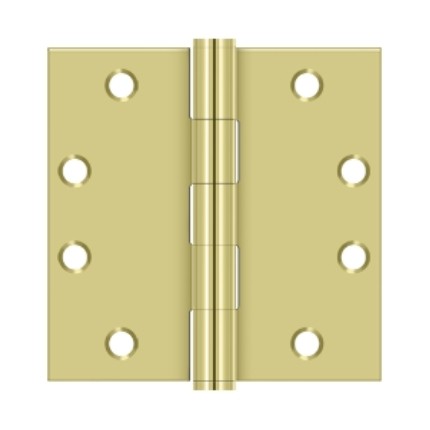

Deltana, Plain Bearing, Steel, Residential Grade, 5 Knuckle, Full Mortise Hinge, 4.5" x 4.5", HD
This Deltana Hinge is a Residential, Full Mortise, 5 Knuckle Plain Bearing Hinge, and is made of Steel. Size of hinges is 4.5" x 4.5" with Square Corners and Button Tip Finials. See below for available finishes.
PRICED PER PAIR
Deltana steel hinges are a reliable value choice for indoor applications. They are available in an array of fine finishes.
Deltana Full Mortised, 5 Knuckle Hinge DTS45 Features:
- Grade: Residential, Full Mortise
- Bearings: Plain Bearing
- Base Material: Steel
- Size: 4.5" x 4.5"
- Corners: Square Corners
- Tip: Button Tip Finials
Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Finials: Button Tip Provided. See the additional Finials and Button Tip options available.
Priced Per Pair
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.
For a list of similar items, see our Deltana, 2 Ball Bearings, Steel, Residential Grade, 5 Knuckle, Full Mortise Hinge, 3.5" x 3.5"
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDTS45
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelResidential Grade
-
ThrowStandard Throw
-
Bearing TypePlain Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-

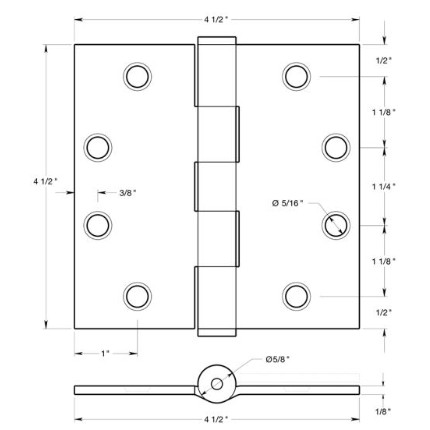

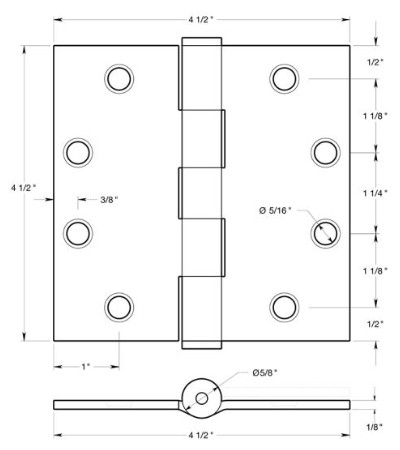

- Dimensions
-
Hinge Size4-1/2" x 4-1/2"
-
Hinge Thickness0.134" Thick
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsWooden Screws #12 x 1-1/4"Provided, Machine Screw#12x1/2"Provided
-
- Finishes
-
FinishPaint Black (US1B), Polished Brass (US3), Antique Brass (US5), Oil-Rubbed Bronze (US10B), Satin Nickel (US15), Antique Nickel (US15A), Polished Chrome (US26), Satin Chrome (US26D), Prime Coat White (USPW)
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
