Deltana Steel spring Hinge, Residential Grade, 5 Knuckle, Full Mortise Hinge, 3.5" x 3.5" x 5/8 Radius Corner, Sold in Pairs

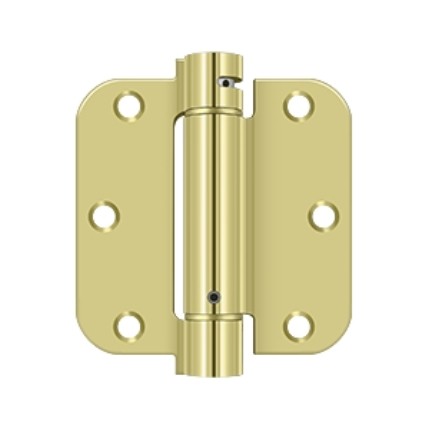

Deltana DTDSH35R5, Single Acting Spring, Polished Brass (US3), Full Mortise
Deltana Hardware

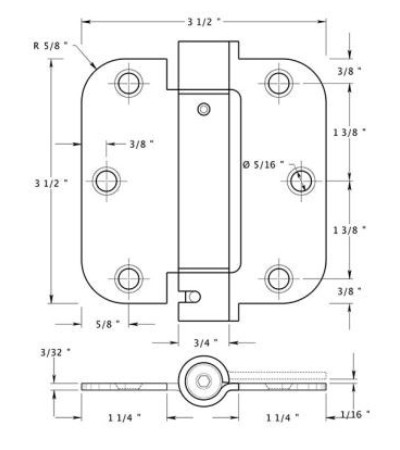

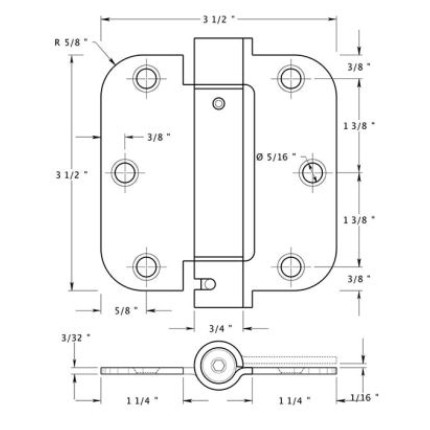

This Deltana Hinge is a Residential, Full Mortise, 5 Knuckle Spring Hinge, and is made of Steel. Size of hinges is 3.5" x 3.5" with 5/8 Radius Corner and Button Tip Finials. See below for available finishes.

PRICED PER PAIR

See tabs below for additional information
    • Weight
      0.5 lbs
    • SKU
      DTDSH35R53
    • Market price:$19.10
      • save 5%
    • Starting price: Price: $18.15 per set


    Deltana self-closing, spring hinges are adjustable and come in an array of fine finishes.

    Deltana Full Mortised, 5 Knuckle Hinge DTDSH35R5 Features:

    • Grade: Residential, Full Mortise
    • Bearings: Single Acting Spring
    • Base Material: Steel
    • Size: 3.5" x 3.5"
    • Corners: 5/8 Radius Corners
    • Tip: Button Tip Finials

    Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.

    Finials: Button Tip Provided. See the additional Finials and Button Tip options available.

    Priced Per Pair

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

    For a list of similar items, see our Deltana, 2 Ball Bearings, Steel, Residential Grade, 5 Knuckle, Full Mortise Hinge, 3.5" x 3.5"

      • Weight
        0.5 lbs
      • SKU
        DTDSH35R53
    • QuickShip
      Yes
    • Manufacturer
      Deltana Hardware
    • MPN
      DTDSH35R5
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Steel
      • Usage Level
        Residential Grade
      • Throw
        Standard Throw
      • Bearing Type
        Single Acting Spring
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        5/8" Radius Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        6 Holes
    • Dimensions
      • Hinge Size
        3-1/2" x 3-1/2"
      • Hinge Thickness
        0.097" Thick
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Wooden Screws #9 x 3/4"Provided
        Machine Screw #9 x 1/2"Provided
    • Finishes
      • Finish

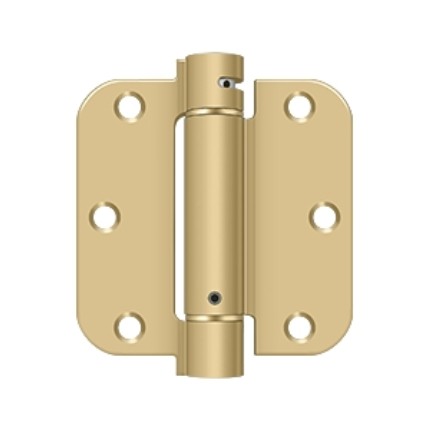

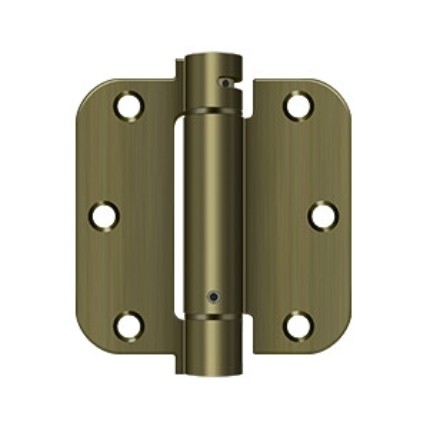

        Polished Brass (US3), Satin Brass (US4), Antique Brass (US5), Oil-Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Antique Nickel (US15A), Polished Chrome (US26), Satin Chrome (US26D)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
