Deltana Steel spring Hinge, Residential Grade, 5 Knuckle, Full Mortise Hinge, 4" x 4", Sold in Pairs

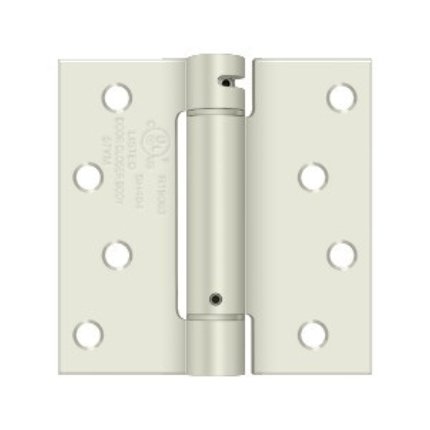

Deltana DTDSH35R5, Single Acting Spring, Prime Coat White (USPW), Full Mortise
Deltana Hardware

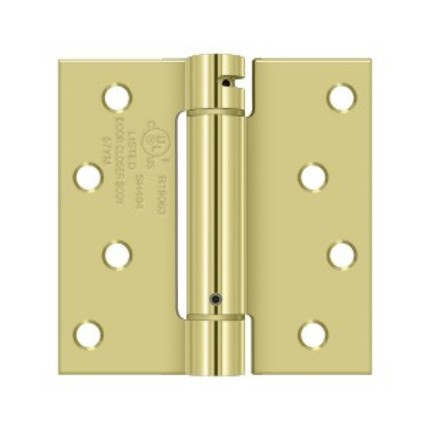

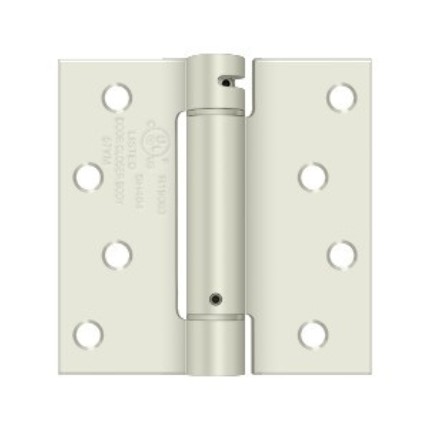

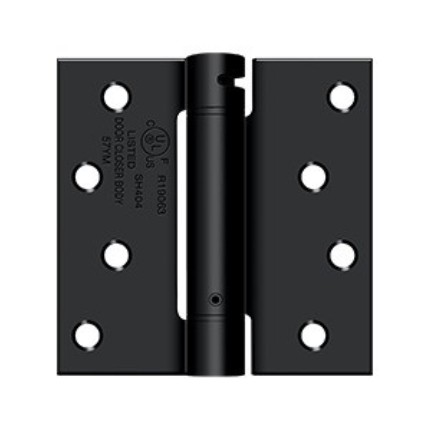

This Deltana Hinge is a Residential, Full Mortise, 5 Knuckle Spring Hinge, and is made of Steel and Stainless Steel. Size of hinges is 4" x 4" with Square Corner and Button Tip Finials. See below for available finishes.

PRICED PER PAIR

See tabs below for additional information
    • Weight
      0.5 lbs
    • SKU
      DTDSH44USPW
    • Market price:$18.45
      • save 5%
    • Starting price: Price: $17.53 per set


    Deltana self-closing, spring hinges are adjustable and come in an array of fine finishes.

    Deltana Full Mortised, 5 Knuckle Hinge DTDSH44 Features:

    • Grade: Residential, Full Mortise
    • Bearings: Single Acting Spring
    • Base Material: Steel and Stainless Steel
    • Size: 4" x 4"
    • Corners: Square Corner
    • Tip: Button Tip Finials

    Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.

    Finials: Button Tip Provided. See the additional Finials and Button Tip options available.

    Priced Per Pair

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

    For a list of similar items, see our Deltana, 2 Ball Bearings, Steel, Residential Grade, 5 Knuckle, Full Mortise Hinge, 3.5" x 3.5"

      • Weight
        0.5 lbs
      • SKU
        DTDSH44USPW
    • QuickShip
      Yes
    • Manufacturer
      Deltana Hardware
    • MPN
      DTDSH44
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Steel, Stainless Steel
      • Usage Level
        Residential Grade
      • Throw
        Standard Throw
      • Bearing Type
        Single Acting Spring
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes

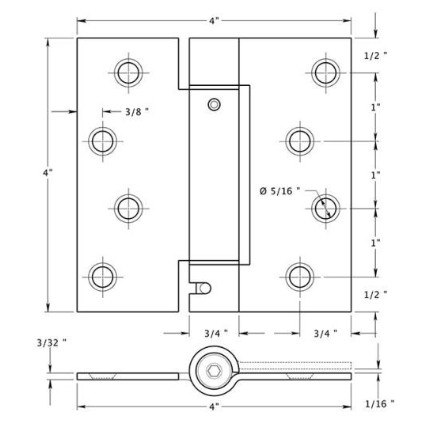

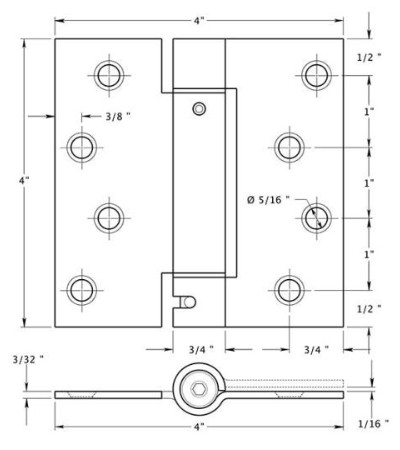

    • Dimensions
      • Hinge Size
        4" x 4"
      • Hinge Thickness
        0.097" Thick
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Wooden Screws #10 x 1"Provided
        Machine Screw #10 x 1/2"Provided
    • Finishes
      • Finish
        Prime Coat White (USPW), Paint Black (US1B), Polished Brass (US3), Satin Brass (US4), Antique Brass (US5), Oil-Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Antique Nickel (US15A), Polished Chrome (US26), Satin Chrome (US26D), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        UL Listed
      • Warranty
        1 Year Limited Warranty
