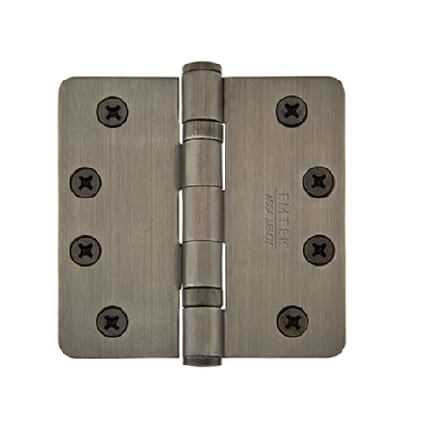

Emtek 94024 Steel, Heavy Duty, Ball Bearing Hinge, 4" x 4", with 1/4" Radius Corners - PAIR
Emtek #94024 Heavy Duty, Steel, Ball Bearing Hinges will complement your door and ensure a matching finish to other Emtek Hardware. Hinges are sized 4" x 4", with 1/4" Radius corners and are available in selection of finishes.
PRICED PER PAIR
Emtek #94024 Heavy Duty, Steel, Ball Bearing Hinges will complement your door and ensure a matching finish to other Emtek Hardware.

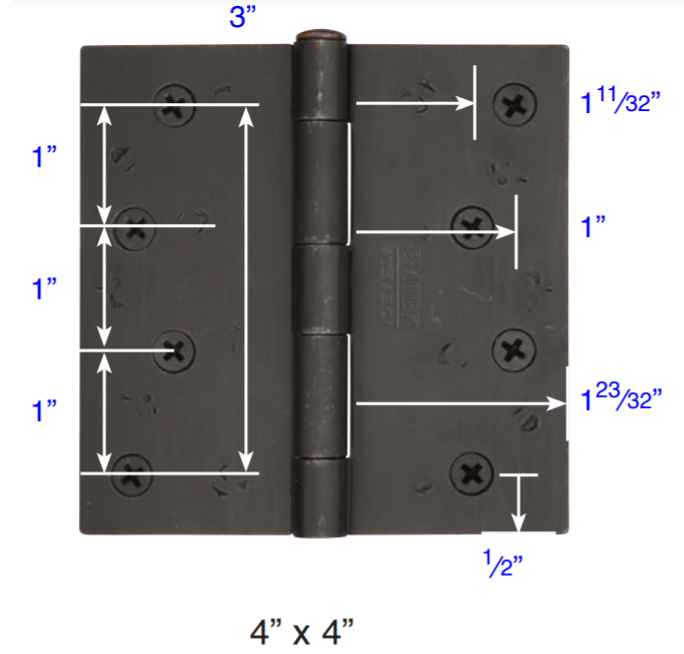

- Dimensions: 4" x 4"
- Thickness: 0.132"
- Fasteners: #10 x 1" Wooden Screws provided
- Material: Steel
- Screw Holes: 8
- Priced and Sold in Pairs
- See specification tabs for additional information
About Heavy Duty Ball Bearing Hinges: Hinges include Ball Bearing between the knuckles which reduce friction bought on by the movement of the hinge. The Heavy Duty hinges have a thicker leaf than residential plain bearing hinges, Ball Bearing hinges will insure a smooth open and close, particularly on exterior doors. They should be used for heavy or high traffic doors. For non heavy traffic, consider a Plain Bearing Hinge.
About the Material: Steel is a strong metal that is significantly cheaper than Solid Brass. Its superb strength makes it suitable for heavier doors. However, steel is not as durable as brass, as it will rust over time.
Installation: This hinge is fully mortised. Three hinges should be used on doors up to 90". Add one additional hinge per each additional 30" of door height.
Corners: This hinge is designed with 1/4" radius corner, also popular for fully mortised hinges are square cornered and 5/8" radius cornered hinges.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 5 year warranty on material and workmanship.
Click here to view our Full Warranty Policy.
See also our Emtek 94025 4.5" x 4.5" Residential Hinge with 1/4" Radius Corners.
-
QuickShipNo
-
ManufacturerEmtek
-
MPN94024
- Product Design
-
Hinge CategoryFull Surface Hinge
-
Base MaterialSteel
-
Usage LevelHeavy Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeRemoveable Pin
-
Hinge Tip TypeButton Tip
-
Hinge Corner1/4" Radius Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size4" x 4"
-
- Installation
-
Door TypeWooden Door
-
Installation Screws#10 x 1" Provided
-
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Medium Bronze (MB), Tumbled White Bronze (TWB)
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-
