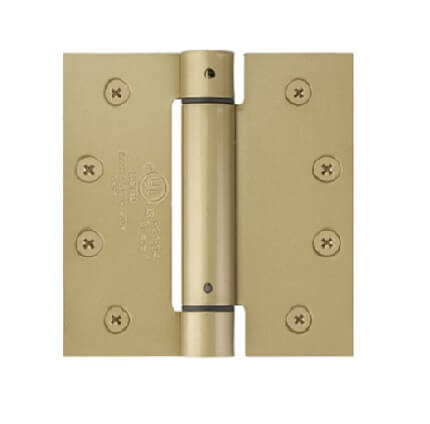

Emtek 95014 Steel Spring Hinge, 4" x 4", Square Corners - SOLD IN PAIRS
Emtek #95014, Steel Spring hinges will complement your door and ensure a matching finish to other Emtek Hardware. Hinges are sized 4" x 4" with square Corners.
PRICED PER PAIR
Emtek #95014 Steel Spring Hinges will complement your door and ensure a matching finish to other Emtek Hardware.

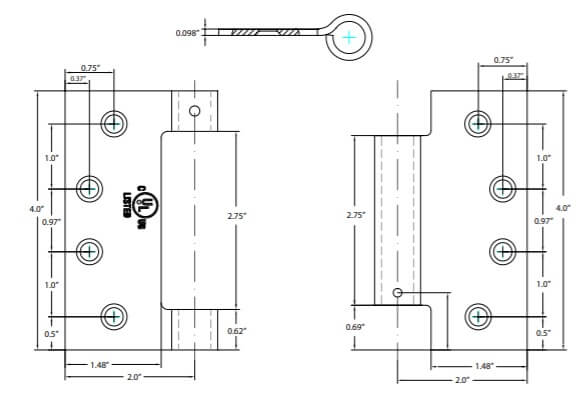

- Dimensions: 4" x 4"
- Thickness: 0.084" - 0.090" Thickness of Hinge Leaf
- Fasteners: #9 x 3⁄4” screws provided
- Material: Steel
- Screws Holes: 8
- Hole Pattern: "C"-shaped template
- Priced and Sold in Pairs
- See specification tab for more information
About Spring Hinges: Spring hinges feature built in springs that allow the hinges to automatically close a door when it is not propped open.
About the Material: Steel is a strong metal that is significantly cheaper than Solid Brass. Its superb strength makes it suitable for heavier doors. However, steel is not as durable as brass, as it will rust over time.
Installation: This hinge is fully mortised. Three hinges should be used on doors up to 90". Add one additional hinge per each additional 30" of door height.
Corners: This hinge is designed with a square corner, also popular for fully mortised hinges are 1/4" radius and 5/8" radius hinges.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 5 year warranty on material and workmanship.
Click here to view our Full Warranty Policy.
See also our Emtek 95023 3.5" x 3.5" Spring Hinge with 1/4" Radius Corners.
-
QuickShipNo
-
ManufacturerEmtek
-
MPN95014
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelResidential Grade
-
ThrowStandard Throw
-
Bearing TypeSingle Acting Spring
-
Knuckles5 Knuckle Hinge
-
Pin TypeRemoveable Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size4" x 4"
-
- Installation
-
Door TypeWooden Door
-
Installation Screws#9 x 3/4"
-
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Flat Black (US19), Medium Bronze (MB), Tumbled White Bronze (TWB)
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-
