Zero #65A, #65B Latching Panic Exit Threshold, 5" Aluminum or Bronze with Neoprene Gasket, .5" H

Zero #65A, #65B Latching Panic Exit Threshold, 5" Aluminum or Bronze with Neoprene Gasket, .5" H
Zero International

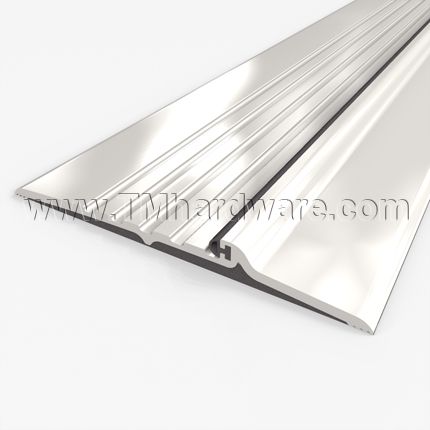

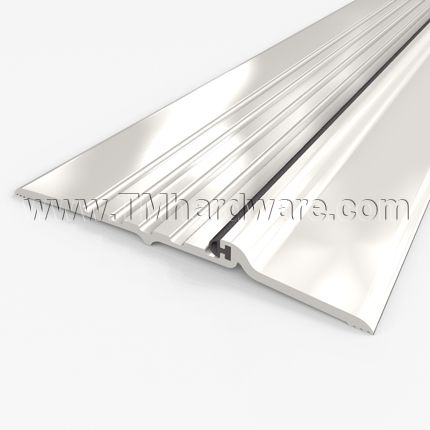

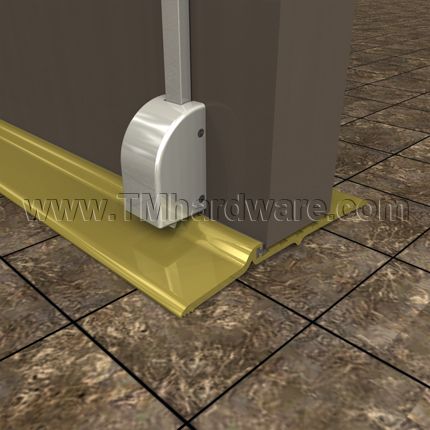

This Zero #65A, #65B Latching Panic Door Threshold is compatible with a surface applied vertical rod exit device. It is fitted with a Neoprene Bulb which compresses against the door to create a solid seal. It is smoke and fire rated and is wheelchair accessible. Available in aluminum or bronze and length is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      ZR65A
    • Market price:$22.79
      • save 5%
    • Starting price: Price: $21.65 per foot

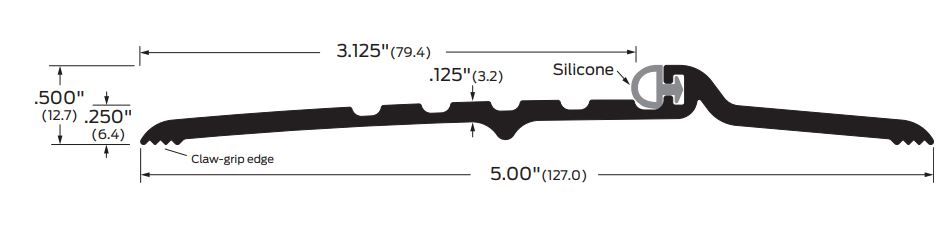

    Threshold design is compatible with a surface applied rod exit device.

    Seal: Threshold has a neoprene seal which compresses against door to create a solid seal.

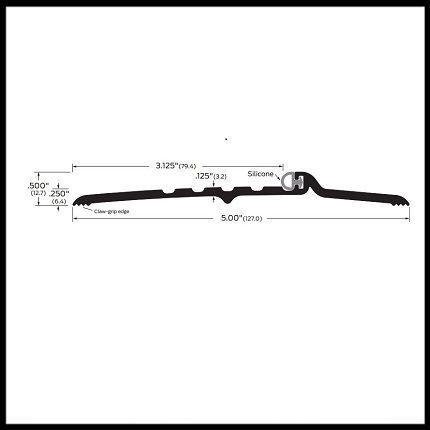

    Width: 5"

    Required Door Clearance: .25"

    Total Height: .5"

    Thickness: .125"

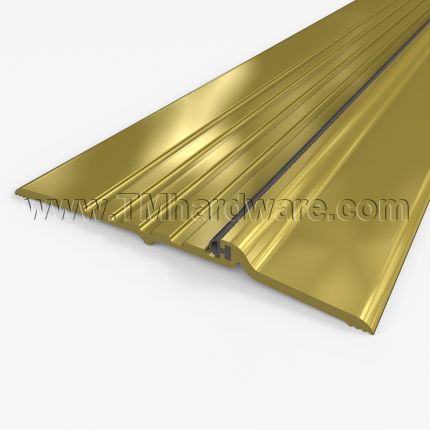

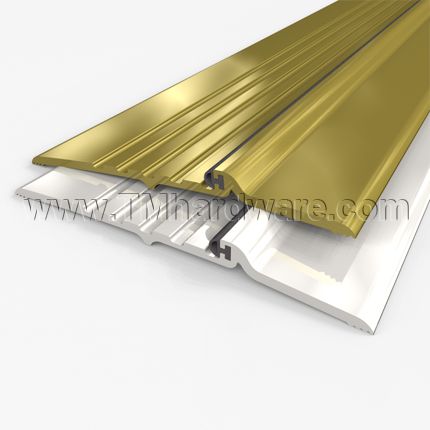

    Finishes: Available in aluminum mill finish and bronze mill finish (Oil rubbed bronze can also be purchased for an additional 49% of standard bronze pricing)

    Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color with time when exposed to the environment.

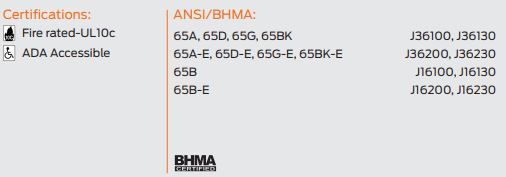

    Compliance Details: Fire Rated, Smoke Rated, ADA / Wheelchair Compliance

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

    Additional Options Include:

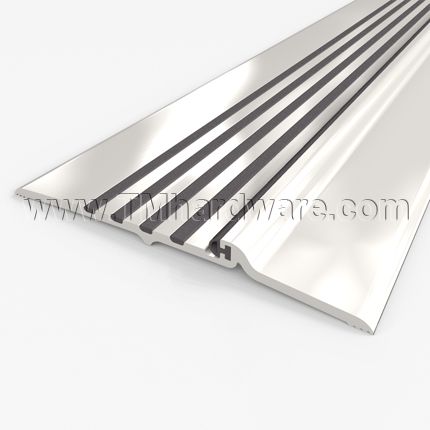

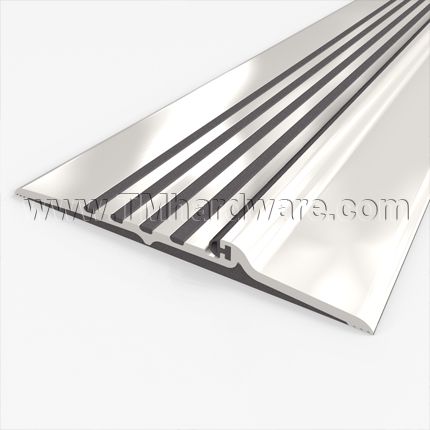

    • Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

    • Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    For a larger gap clearance, see our Zero International #265 Latching Panic Exit Threshold with Gasket.

      • SKU
        ZR65A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      65
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .25" Height
      • Thickness
        .125" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold
      • Seal Type
        Neoprene Seal
      • Material
        Bronze, Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Bronze Mill Finish (Brass), Flat Black (US19)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
