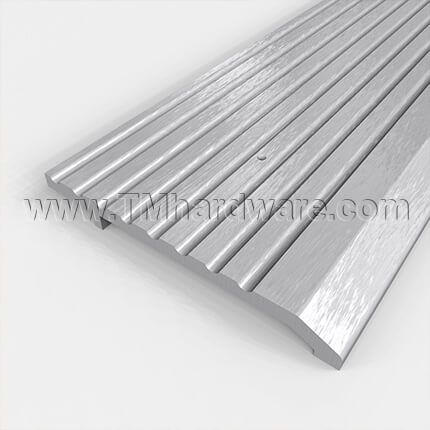

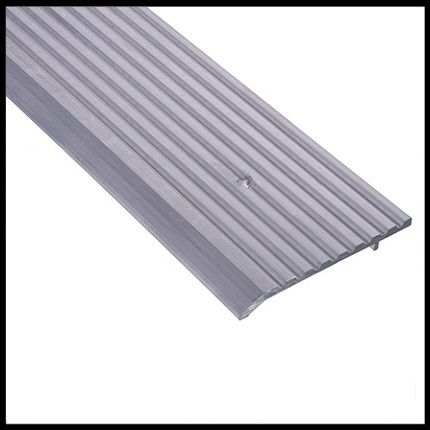

NGP 325 Half Threshold, 5" Aluminum or Brass, .5" Height

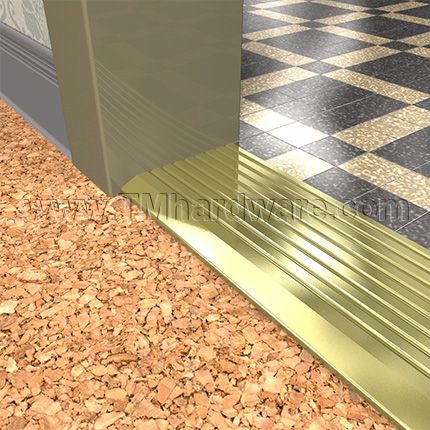

NGP 325 Half Threshold has a width of 5" with an offset of .5" which is a simple way to correct a floor offset between rooms and eliminate the tripping hazard associated with differences in floor surface heights. This threshold is wheelchair accessible. Available in two aluminum and brass finishes and length is custom cut to size.
PRICED PER FOOT
NGP 325 Half Threshold Key Features:
Material: Aluminum alloy 6063, Alloy CDA 385 (Copper Alloy No. C38500)

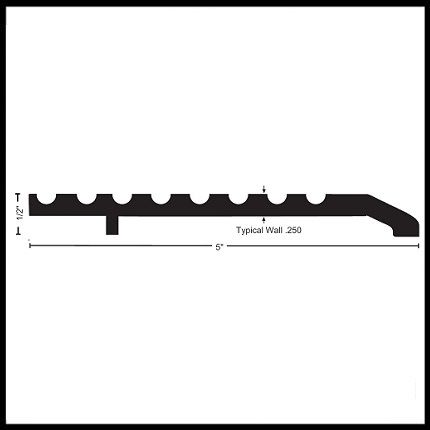

Width: 5"
Height: .5" (1/2")
Length: Custom cut to size.
Weight: 1.32 lbs/ft. for aluminum, 3.95 lbs/ft. for Brass
Typical Wall Thickness: .250"
Compliance Details: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs; UL Listed; ANSI/BHMA Certified; Positive Pressure Certified.
Installation: See Installation Guide tab.
- #10 x 1-1/2" FH zinc plated/brass wood screws included, DKB supplied with DKB threshold.
Drilling: Threshold is drilled along the center line in standard factory locations.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional half thresholds, see our NGP 898 Half Threshold, 5" Aluminum with Rubber Seal, .5" Height.
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN325
-
Length12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94", 94.25", 94.5", 94.75", 95", 95.25", 95.5", 95.75", 96", 96.25", 96.5", 96.75", 97", 97.25", 97.5", 97.75", 98", 98.25", 98.5", 98.75", 99", 99.25", 99.5", 99.75", 100", 100.25", 100.5", 100.75", 101", 101.25", 101.5", 101.75", 102", 102.25", 102.5", 102.75", 103", 103.25", 103.5", 103.75", 104", 104.25", 104.5", 104.75", 105", 105.25", 105.5", 105.75", 106", 106.25", 106.5", 106.75", 107", 107.25", 107.5", 107.75", 108", 108.25", 108.5", 108.75", 109", 109.25", 109.5", 109.75", 110", 110.25", 110.5", 110.75", 111", 111.25", 111.5", 111.75", 112", 112.25", 112.5", 112.75", 113", 113.25", 113.5", 113.75", 114", 114.25", 114.5", 114.75", 115", 115.25", 115.5", 115.75", 116", 116.25", 116.5", 116.75", 117", 117.25", 117.5", 117.75", 118", 118.25", 118.5", 118.75", 119", 119.25", 119.5", 119.75", 120", 120.25", 120.5", 120.75", 121", 121.25", 121.5", 121.75", 122", 122.25", 122.5", 122.75", 123", 123.25", 123.5", 123.75", 124", 124.25", 124.5", 124.75", 125", 125.25", 125.5", 125.75", 126", 126.25", 126.5", 126.75", 127", 127.25", 127.5", 127.75", 128", 128.25", 128.5", 128.75", 129", 129.25", 129.5", 129.75", 130", 130.25", 130.5", 130.75", 131", 131.25", 131.5", 131.75", 132", 132.25", 132.5", 132.75", 133", 133.25", 133.5", 133.75", 134", 134.25", 134.5", 134.75", 135", 135.25", 135.5", 135.75", 136", 136.25", 136.5", 136.75", 137", 137.25", 137.5", 137.75", 138", 138.25", 138.5", 138.75", 139", 139.25", 139.5", 139.75", 140", 140.25", 140.5", 140.75", 141", 141.25", 141.5", 141.75", 142", 142.25", 142.5", 142.75", 143", 143.25", 143.5", 143.75", 144"
- Dimensions
-
Overall Height.5" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Thickness.25" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeHalf Threshold
-
MaterialAluminum, Brass
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-

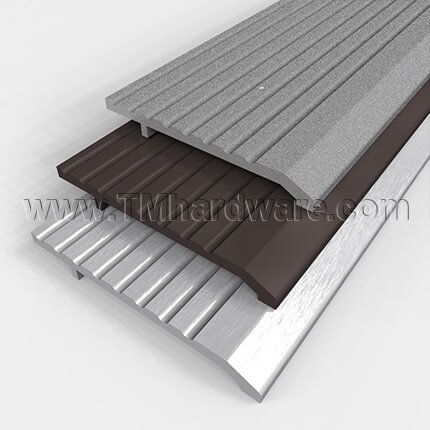

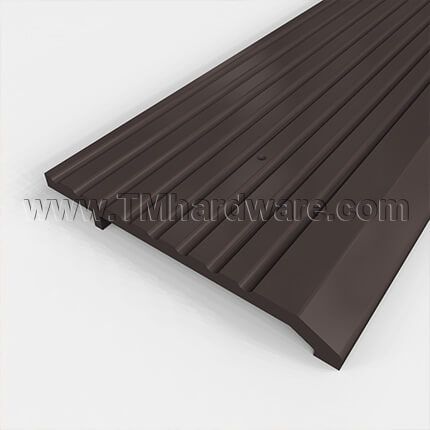

FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Bronze Mill Finish (Brass)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
