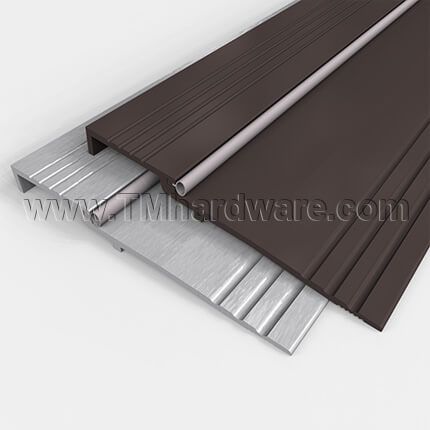

NGP 898 Half Threshold, 5" Aluminum, with Rubber Seal, .5" Height
NGP 898 Half Threshold adds a seal at the bottom of doors to provide additional insulation. It has a 5" width and a height clearance of .25". Available with choice of seals, two aluminum finishes, and length is custom cut to size.Â
PRICED PER FOOT - See full product details and specs in the tabs below

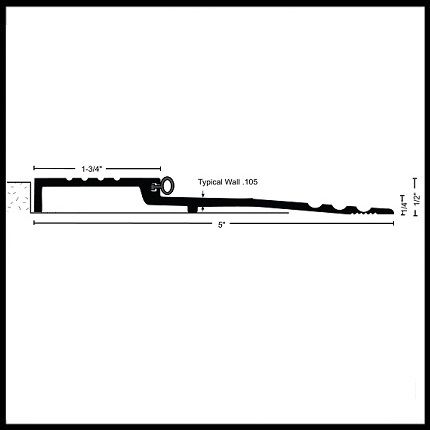

NGP 898 Half Threshold Key Features:
Material:Â Aluminum alloy 6063
Width: 5"
Height: .25" (1/4")
Total Height: .5" (1/2")
Length: Custom cut to size.Â

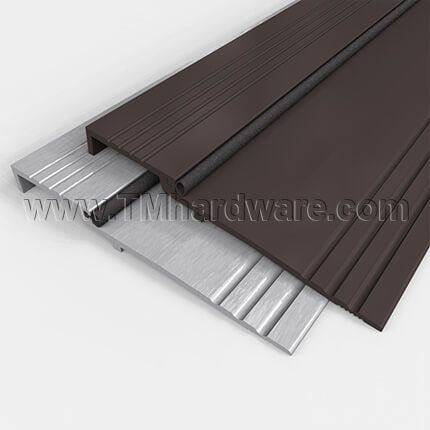

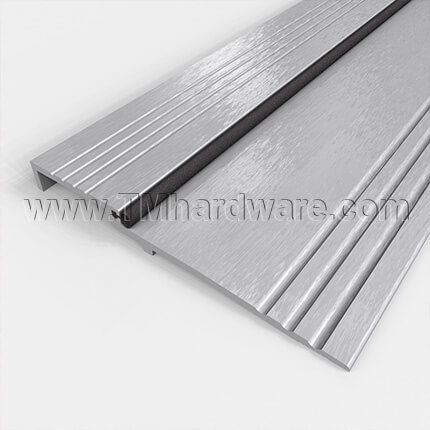

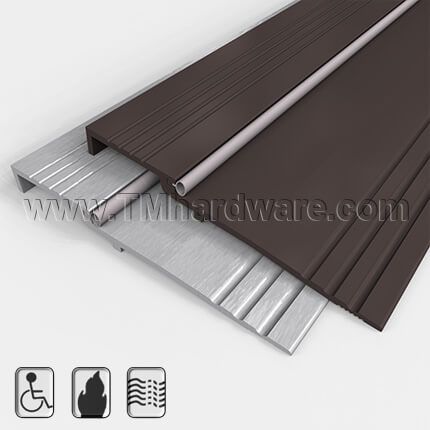

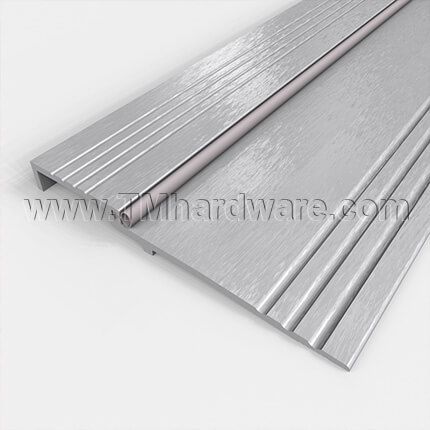

Finishes: Mill Aluminum, Dark Bronze Anodized
Weight:Â .72 lbs/ft.Â
Typical Wall Thickness: .105"
Inserts: NGP-TPV, Silicone, Vinyl

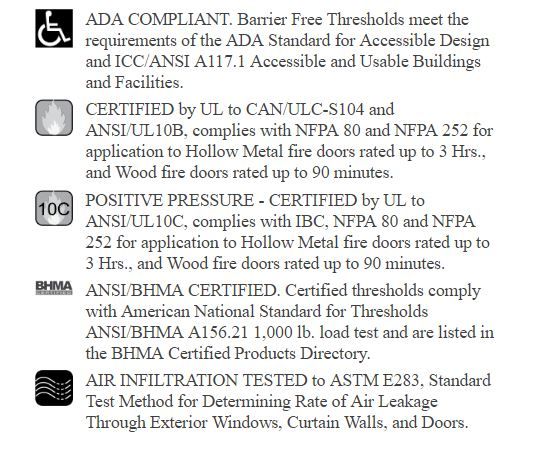

Compliance Details: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs;Â UL Listed;Â ANSI/BHMA Certified;Â Positive Pressure Certified; Air Infiltration Tested.
Installation: See Installation Guide tab.
- #10 x 1-1/2" FH zinc plated wood screws included, DKB supplied with DKB threshold.
Drilling: Threshold is drilled along the center line in standard factory locations.
Options (Can be purchased through our office at 845-388-1300):Â
- Slip-Resistant Finish
- Vinyl foot seal used instead of caulking to increase the weather resistance of the threshold

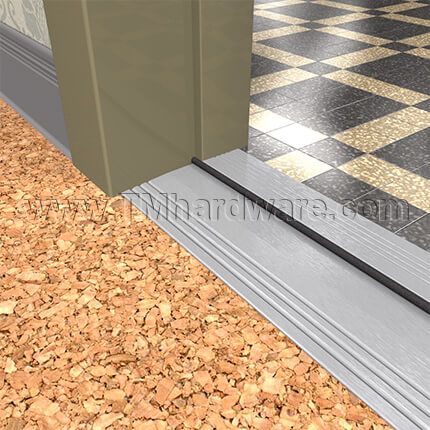

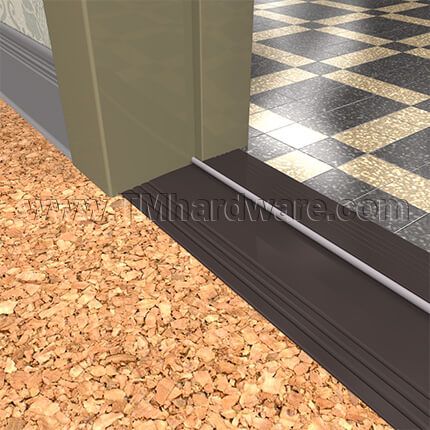

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3Â year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional half thresholds, see our NGP 215 Half Threshold, 2" Aluminum or Brass with .25" Height.
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN898
-
SealNGP-TPV, Silicone, Vinyl
- Dimensions
-
Overall Height.5" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.105" Thick
-
- Product Design
-
Flat Saddle DesignSmooth Top Design
-
Threshold TypeHalf Threshold
-
Seal TypeQ-Lon Rubber Seal
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
