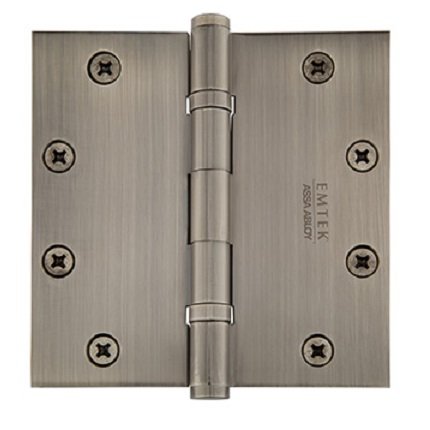

Emtek 96416 Brass Heavy Duty, Ball Bearing, 5" x 5", Square Corner Hinge - PAIR

Emtek #96416 Heavy Duty, Solid Brass, Ball Bearing Hinges will complement your door and ensure a matching finish to other Emtek Hardware.

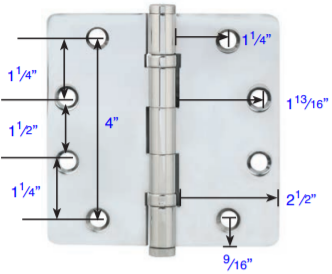

• Dimensions: 5" x 5"
• Thickness: 0.132"
• Fasteners: #12 x 1 1/4" Wooden Screws provided
• Material: Solid Brass
• Screw Holes: 8
• Priced and Sold in Pairs
• See specification tabs for additional information

About Heavy Duty Ball Bearing Hinges: Hinges include Ball Bearing between the knuckles which reduce friction bought on by the movement of the hinge. The Heavy Duty hinges have a thicker leaf than residential plain bearing hinges, Ball Bearing hinges will ensure a smooth open and close, particularly on exterior doors. They should be used for heavy or high traffic doors. For non heavy traffic, consider a Plain Bearing Hinge.

About the Material: Solid Brass is made of copper and zinc and is popular due to its aesthetics, resilience and durability. It is highly resistant to rusting and is available in a large variety of finishes. However it is significantly more expensive than its steel and stainless steel counterparts.

Installation: This hinge is fully mortised. Three hinges should be used on doors up to 90". Add one additional hinge per each additional 30" of door height.

Corners: This hinge is designed with a square corner, also popular for fully mortised hinges are 1/4" radius and 5/8" radius hinges.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 5 year warranty on material and workmanship.
Click here to view our Full Warranty Policy.

See also our Emtek 96134 4" x 4" Residential Hinge with 5/8" Radius.
