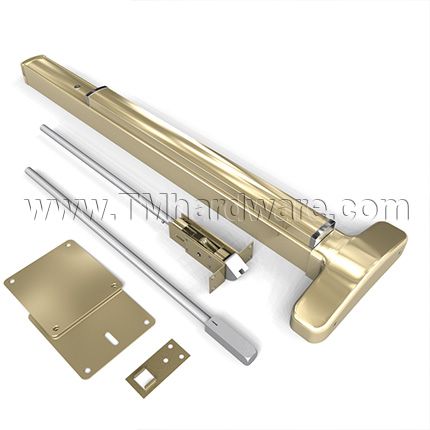

Falcon 24-CWDC-EO Concealed Vertical Rod Exit Device, Narrow Stile, Heavy Duty, Wood Doors - Exit Only

Falcon 24-CWDC-EO Concealed Vertical Rod Exit Device, Narrow Stile, Heavy Duty, Wood Doors - Exit Only
Falcon

Falcon 24-CWDC-EO narrow stile, heavy duty exit device with concealed vertical rod for wood doors. Available with Exit Only Function. Grade 1 standards, made with extruded aluminum construction to deliver greater strength and impact resistance. Available in a variety of finishes, trims and sizes.

PRICED PER PIECE - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      FL24-CWDC-EO_US3
    • Market price:$3,250.00
      • save 35%
    • Price: $2,112.50
    Additional discounts will be applied when added to cart!


    Falcon Heavy-Duty 24-CWDC-EO Series Narrow Stile Exit Device with concealed vertical rod for panic and fire-rated applications.

    Options:

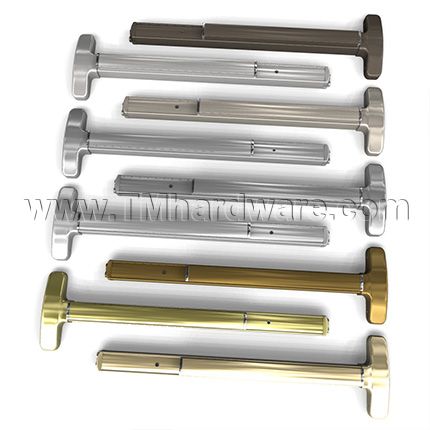

    Finishes: Available in a choice of 9 finishes options: US28, US32D, 313AN, US26D, US26, US32, US10, US4 and US3. Finish US32D will be supplied with trims in US15 finish.

    Device Size: Choose from 3 size options; For door up to 24", 36" (33 21/32" device) or 48" (45 5/8" device) wide. Device can be easily cut to size on the field.

    Applications: Used on wood doors in high traffic applications including offices, retail, healthcare, churches and educational facilities. Can be used on exterior, interior, new construction and retro-fit applications.

    Handing: Specify Right Hand Reverse or Left Hand Reverse. Both handed labels are provided standard. To determine door handing see our How To Determine Door Handing and Swing.

    Design: Concealed vertical rod with versatile narrow stile design and security benefit of two-point latching. Center slide mechanism allows easy rod adjustment in the field.

    Latchbolt: Top Stainless Steel, top latch 3/4" throw. Bottom bolt 1/2" throw.

    Door Type: For wood doors. To view this product for metal doors see Falcon 24-C-EO Narrow Stile Exit Device.

    Door Height: Available for doors up to: 7', 8', 9' and 10'. Select Door Height above and extension rods will be furnished to length.

    Mounting Height: Furnished to length based on a 40" horizontal CL from finished floor. Change to centerline should be specified in the order comments section before completing purchase.

    Door Thickness: For 1 3/4" thick doors- specify if other

    Projections: 2 3/4" maximum, 2" dogged.

    Stile: 6" minimum on wood doors.

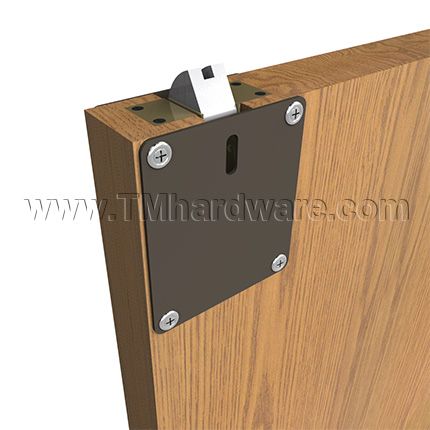

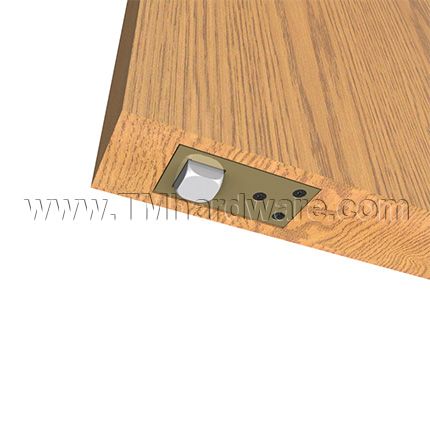

    Strikes: 4188 mortised top and 2130 flush strike bottom, optional bottom 2126A and 4155.

    Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out. Cylinder dogging available upon request (uses 1 1/8" mortise cylinder with standard cam.)

    Fasteners: All mounting screws are concealed, sheet metal screws standard. Machine screws available upon request. For F-24-CWDC, machine screws standard.

    UL Listed: "A" label (3 hr.)- double egress - 8' x 10'; 90 min. same egress - 8' X 10'.

    ANSI: Certified ANSI A156.3-2001 grade 1 standards.

    Electric Functions: Can be interfaced with building security systems. Latch retraction, FSA/FSE trim, security monitoring, delayed egress and exit alarm available (EL fail-secure only). Subject to code requirements, state and local.

    Additional Options: Including shim kits for glass lite applications, mullions and cylinders are available through our office. To order please contact us or call our office at 845-388-1300.

    Priced per piece

    This product has a 10 year warranty against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    Click here to view our Falcon 24-R Narrow Stile Rim Exit Device.

      • SKU
        FL24-CWDC-EO_US3
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      24-CWDC-EO; F-24-CWDC-EO
    • Product Options
      Exit Device 24-CWDC, Fire-Rated Exit Device F-24-CWDC
    • Finish Options
      Bright Brass #US3, Satin Brass #US4, Satin Bronze #US10, Bright Chrome #US26, Satin Chrome #US26D, Bright Stainless Steel #US32, Satin Stainless Steel #US32D, Anodized Duranodic #313AN, Anodized Aluminum #US28
    • Door Size
      36"' Length, 48" Length, 24" Length
    • Door Height
      7' Height (Standard), 8' Height, 9' Height, 10' Height

    Printable Documents:

    Click to print Falcon 24-C Exit Device Product Data.

    Dimensions:

    Falcon 24-C Exit Device Dimensions
