Falcon Lockset, H2 Series Grade 2 - Entry or Privacy Function

Falcon Lockset, H2 Series Grade 2 - Entry or Privacy Function
Falcon

Falcon Lockset,  H2 Series Grade 2, Door handle, features a single motion egress to meet the latest Life and Safety code requirements. Standard H2 Series Lock provided with door thickness 1-3/4” to 2”, backset fits 2-3/8" or 2-3/4", CTC 4” or 5 1/2”, 6-pin, solid brass, keyed 6-pin, G keyway, keyed different (KD) cylinder. Variety of lever styles and finishes available.

PRICED PER PIECE-See full products details and specs in the tabs below

See tabs below for additional information
    • SKU
      FLH2-A-605
    Call for price!
    845-388-1300

    Click here to view the Falcon H2 Series from the Falcon Full Line Catalog

    Handing: Choose from options above, Field Reversible

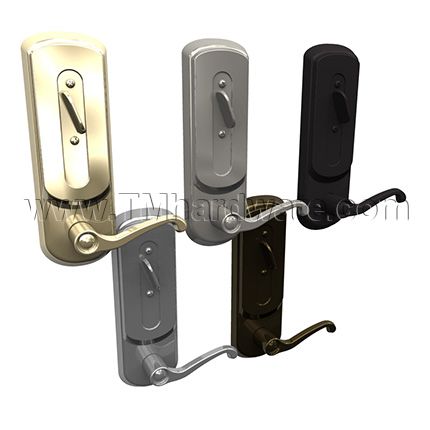

    Lever Style: 5 levers styles available. Choose from options above.

    Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

    Trim:

    • Roses are wrought brass, bronze or stainless steel, installed over wrought steel reinforcing plates. Knobs are brass, bronze or stainless steel secured by steel knob retainer which cannot be depressed when lock has been locked.
    • Outer trims secured to the door by thru-bolts through a steel plate on the inside of the door. Inside escutcheon conceals mounting screws.

    Material: Cold formed steel, zinc plated and dichromated for rust resistance.

    Keys: Two, Nickel silver cut keys per lock

    Keyway: Falcon G keyway standard, Interchangeable

    Additional Keying Options: Additional keying options and keyways available through our office.

    Cylinder / Core:

    • 6-Pin Chambers, Keyed 5-Pin, Falcon G keyway, Keyed different (KD)
    • Cylinder assemblies removable to rekey.
    • Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available through our office.

    Interchangeable Cores: (Can be purchased through our office.)

    Additional Cylinder Options: (Can be purchased through our office.)

    • Keyed 6-Pin or 7-Pin
    • Construction Cores
    • Small Format Interchangeable Core (SFIC)

    Door Thickness: 1-3/4" - 2" standard (1-3/8" Available through our office.)

    Backset: 2-3/4" standard. 2-3/8" also available through our office.

    CTC: Fits 4" or  5-1/2" CTC door preps

    Latch:

    • 1/2" projection
    • 1-1/8" x 2-1/4" latchface (with 2-3/4" backset)
    • 1" x 2-1/4 latchface (with 2-3/8" backset)

    Deadbolt:

    • 1 X 2-1/4”, dual option faceplate, square corner standard, round corner included.
    • 1" housing diameter with 1/4" hardened steel security roller
    • 1" throw
    • 1" projection

    Strike: 2-3/4" x 1-1/8" lipless standard. Optional ANSI, T-strike, full lip strikes or security strike available through our office.

    Functions:

    • Non-Keyed Functions: H2171-Public Bathroom with Occupancy Indicator
    • Keyed Functions: H2101-Entry Single Locking
    • See H2 Series Knob Functions for more information

    Options available through our office only:

    • Additional latches and strikes
    • Additional cylinders and keyways
    • Additional Dustboxes, strikes and cam locks
    • Additional Keys, or Large Bow Keys

    Compliance Details:

    • Locksets are be UL Listed 1-1/2 Hour B Label
    • Lever Style trim complies with Title 19, California State Fire Marshal and all ADA and barrier free codes.
    • See Compliance Details Tab for corresponding ANSI numbers

    Priced Per Set.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    Product has a 1 year warranty against defects in material and workmanship
     Click to view our Full Warranty Policy.

    Click here to view Falcon Lockset MA Series Grade 1,with Door Knob

      • SKU
        FLH2-A-605
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      H2 Series
    • Lever

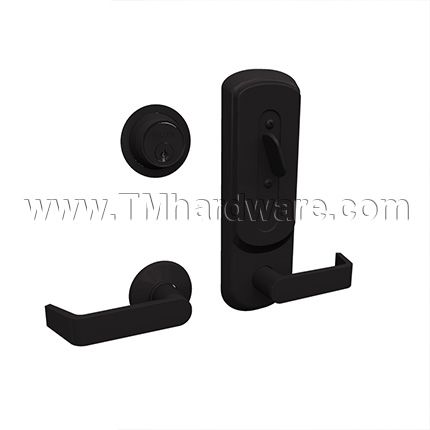

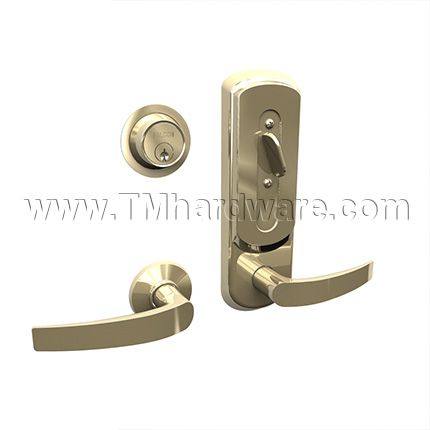

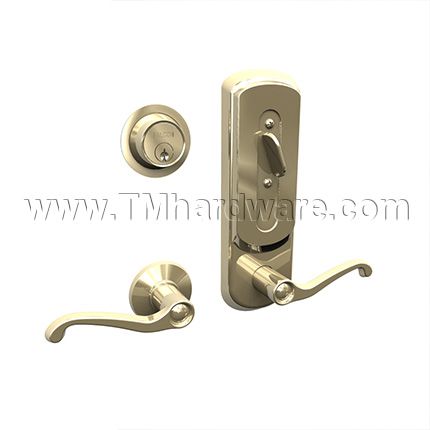

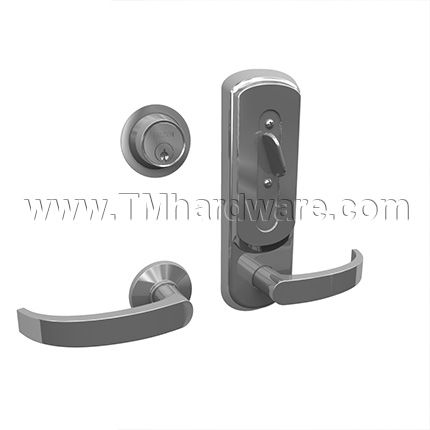

      Avalon (A), Dane (D), Flair (FLA), Latitude (LAT), Quantum (Q)
    • Function
      Entry, Public Restroom with Occupancy Indicator
    • Handing
      Right Handed, Left Handed
    • Finishes
      • Finish

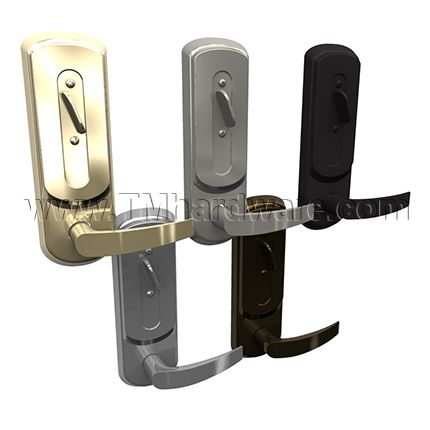

        Polished Brass (US3), Satin Nickel (US15), Flat Black (US19), Satin Chrome (US26D), Aged Bronze (US11E)

    All Finishes Comply with the Following ANSI/BHMA Codes:

    • Bright Brass - US3/605
    • Satin Nickel - US15/619
    • Matte Black - US19/622
    • Satin Chrome - US26D/626
    • Aged Bronze - US11/643e

    Function Complies with the following ANSI Codes:

    • Entry Single Locking / F94

    *UL Listed 1-1/2 Hour B Label.

    *Lever-style trim complies with Title 19, California State Fire Marshal and all ADA and barrier-free codes.
