Falcon RU Series Grade 1 Retrofit Lever
Falcon RU Series Grade 1 Lock is designed to retrofit existing unit locks manufactured by Falcon, Corbin Russwin and Yale. The RU Series incorporates Falcon’s vandal resistant PressureRelease™ trim to prevent damage to internal mechanism. Default product is supplied with 6-Pin, Solid brass, Keyed 5-Pin, Keyed different (KD) Falcon G Conventional Keyway. Available in choice of lever styles, finishes, and functions.
PRICED PER SET-See full product details in the tabs below
Click here to view the Falcon RU Series from the Falcon Full Line Catalog
Extra Heavy Duty, Commercial, Grade 1
Handing: Right or left handed. Chose from options above. Field reversible trim and latch bolt for easy stocking and lower inventory cost.
Lever:
- PressureRelease™ outside lever disengages when locked to protect internal mechanisms
- “Power Spring™” in rose trim prevents lever sag

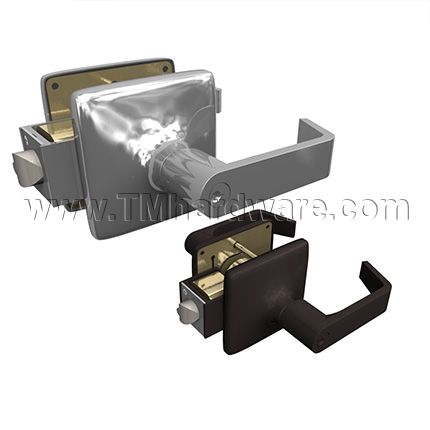

Lever Style:
- 2 styles available, choose from options above.

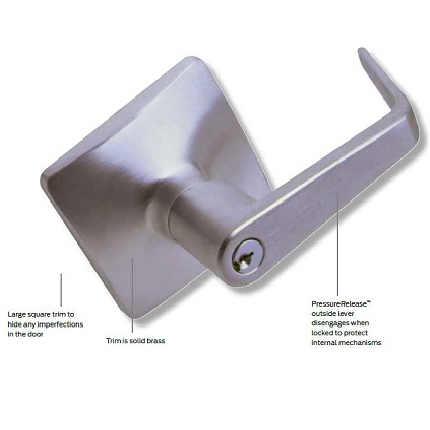

- Large square trim to hide any imperfections in the door
- No Exposed Mounting Screws

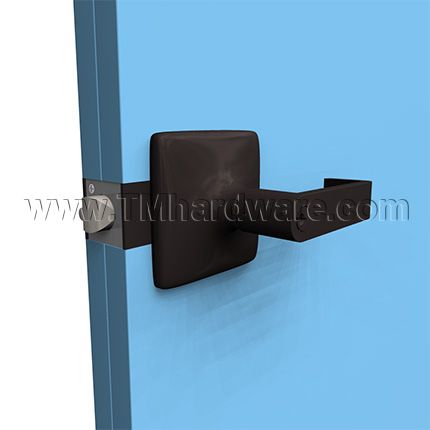

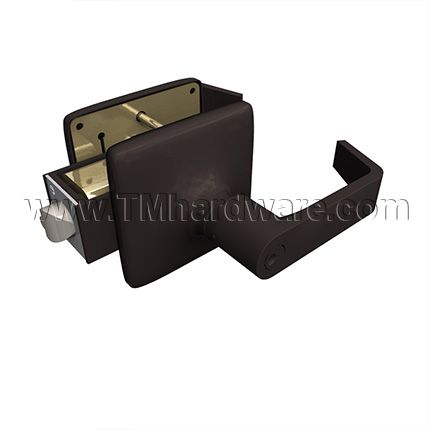

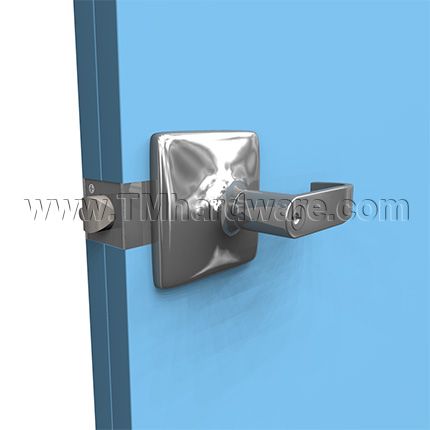

Finishes: Available in Oil Rubbed Bronze (613) and Satin Chrome (626)
Split Finishes: Lock can be purchased with one finish for the outside section of the lock and another for the inside. (Available through our office.)
Trim: Trim is solid brass
Rose: Features a 4" square rose which covers existing mounting holes, most paint lines and required door rework. Made from wrought brass or bronze.
Keys: Two, Nickel silver cut keys per lock
Keyway: Falcon G keyway
Additional Keying Options: Additional keying options and keyways available through our office.
Cylinder / Core: 6-Pin, Solid brass, Keyed 5-Pin, Keyed different (KD)
Interchangeable Cores: The Falcon RU Series accepts the following manufacturers’ interchangeable cores: Falcon, Peaks (Kaba), Schlage, Arrow, Corbin Russwin, Primus (Schlage), Yale - 32 Series, Assa , Sargent, Medeco. (Available through our office.)
Additional Cylinder Options: (Can be purchased through our office.)
- Keyed 6-Pin or 7-Pin
- Construction Cores
- Small Format Interchangeable Core (SFIC), Uncombinated or Combinated
- Large Format Interchangeable Core (LFIC)
Door Thickness: Standard lock is for 1-3/4" thick doors. (Also available for 2" and 2-1/4" thick doors through our office.)
Backset: 2-3/4" only
Latch:
- Latches for RU Series locks are for 1 3⁄4" thick door
- 1/2" throw-standard. (option of 3/4" projection through our office)
- 1-1/8" x 2-1/4" square corner faceplate.
- 1" housing diameter
- Deadlocking latchbolt-prevents manipulation when door is closed; keyed functions only.
Strike: 1-1/4" x 4-7/8", ANSI, Square corner, with dust box
Functions:
- Non-Keyed Functions: RU101-Passage, RU301-Privacy
- Keyed Functions: RU381-Apartment Exit, RU411-Asylum, RU501-Entry, RU511-Entry/Office, RU521-Office, RU561-Classroom, RU571-Dormitory/Corridor, RU581-Storeroom, RU851-Storeroom (Electrified-Fail Safe), RU881-Storeroom (Electrified-Fail Secure)
All Keyed Functions Include a clutching feature that allows the lever to freely rotate up or down while remaining locked. - See RU Series Lever Functions for more information
Options available through our office only:
- Lock can be purchased with one finish for the outside section of the lock and another for the inside.
- Leadlined levers
- Additional latchbolts and strikes
- Dust Boxes
- Keyed Alike

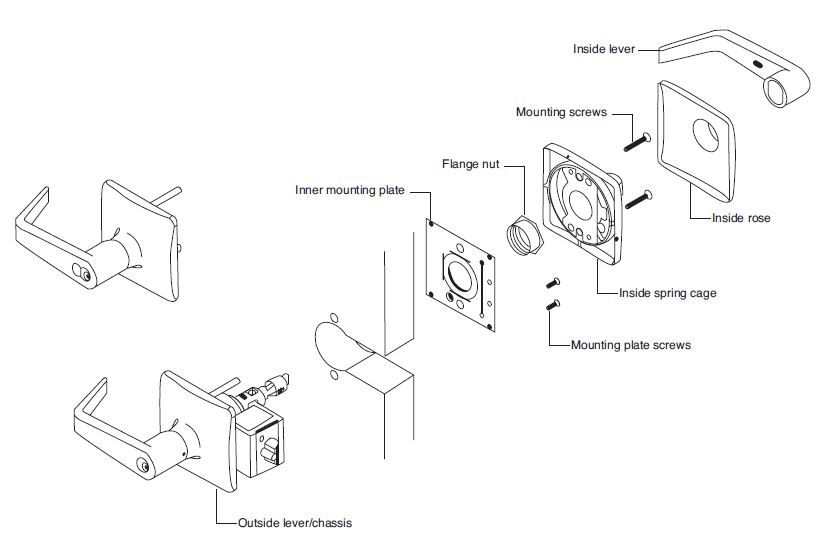

Installation:
- Installs with 10-32 through-bolt screws with thread sealant for extra security and resistance to vibrating loose
- Easy installation with minimal door modifications
Compliance Details:
- Exceeds 1,000,000 cycle ANSI Grade 1 requirement
- Meets or exceeds all other ANSI A156.2 rigorous Grade 1 specifications for key-in-lever products
- UL/ULC listed for 3 Hour A Label doors
- See Compliance Details Tab for corresponding ANSI numbers
Priced Per Set.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.
Product has a 1 year warranty against defects in material and workmanship
Click to view our Full Warranty Policy.
Click here to see Hager 3400 Series Grade 1 Cylindrical Lever
-
QuickShipNo
-
ManufacturerFalcon
-
MPNRU Series
-

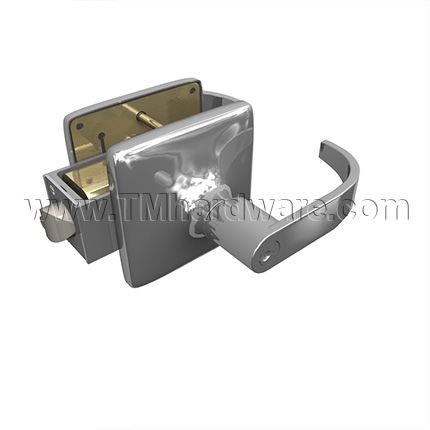

LeverDane, Quantum
-
FunctionPassage, Privacy, Classroom Security, Asylum, Entry, Entry / Office, Office, Classroom, Dormitory, Storeroom
-
HandingRight Handed, Left Handed
- Finishes
-
FinishOil Rubbed Bronze (US10B), Satin Chrome (US26D)
-
Finishes comply with the following ANSI/BHMA codes:
- Oil Rubbed Bronze-US10B/613
- Satin Chrome-US26D/626
Functions comply with the following ANSI codes:
- Passage (Non-Keyed) / F36
- Privacy (Non-Keyed) / F37
- Classroom Security Lock / F45
- Entry Lock / F41
- Entry Office Lock / F40/F41
- Office Lock / F40
- Classroom Lock / F42
- Dormitory/Corridor Lock / F48
- Storeroom Lock / F44
*Complies with ADA easy access requirements
*UL/ULC listed for 3 Hour A Label doors
*ANSI A156.2, Series 2000, Grade 1
