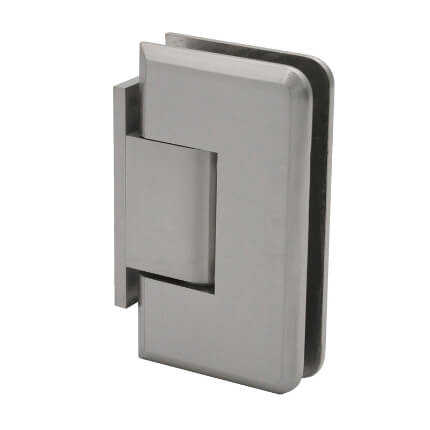

FHC Carolina Beveled Wall Mount Hinge for Shower Doors - Offset Short Back Plate
FHC Carolina Beveled Wall Mount Hinge for Shower Doors Offset Short Back Plate is bathroom glass shower door hinges accessories designed for 3/8 - 1/2" Tempered Glass. They are very helpful for constructing a frameless shower or bathtub closet in a home or business bathroom. Available in different finishes.
PRICED PER UNIT
FHC Carolina Beveled Wall Mount Hinge for Shower Doors Offset Short Back Plate is bathroom glass shower door hinges accessories designed for 3/8 - 1/2" Tempered Glass. The Carolina Series Hinge has a dual degree pivot pin. It comes factory configured at 90 degrees for standard door closing applications. A supplementary jobs that call for a firmer positive position against a hinge pivot pin setting that can be field changed to allow an additional 5 degrees of closing seal or jamb.
FHC Carolina Beveled Wall Mount Hinge for Shower Doors Features:
- Glass Sizes: 3/8" to 1/2" (10 to 12 mm) Tempered Glass Only
- Construction: Solid Brass
- Closing Type: Self-Centering When Within 15 Degrees of Closed Position
- Cutout Required: Cutout No. SD3B
- Includes: Hinge, glazing gaskets, wall mounting screws, Allen head/Philips head cover plate screws, and fabrication template.
- Use: Residential Bath and Commercial Hotel Applications
- Offset Short Back Plate Allows for More Field Adjustment
- Slip Fit Design Allows for Fast Hinge Installation
- Allows for "Tighter" Glass Gap at Hinge Side if Required
- Heavy Duty Design For Wider and Heavier Doors
- Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
- Many Popular Finishes to Select From
PRICED PER UNIT
This product has a period of three (3) years warranty against defects in material and workmanship. All other Shower Door Hardware is warranted for one (1) year following the date of invoice. Click to view our Full Warranty Policy.
For additional designs, see our FHC Carolina Beveled Wall Mount Adjustable Hinge for Shower Doors - Full Back Plate
-
QuickShipNo
-
ManufacturerFHC - Frameless Hardware Co.
- Product Design
-
HandingNon-Handed
-
Hinge CornerBeveled
-
Number of Holes4 Holes
-

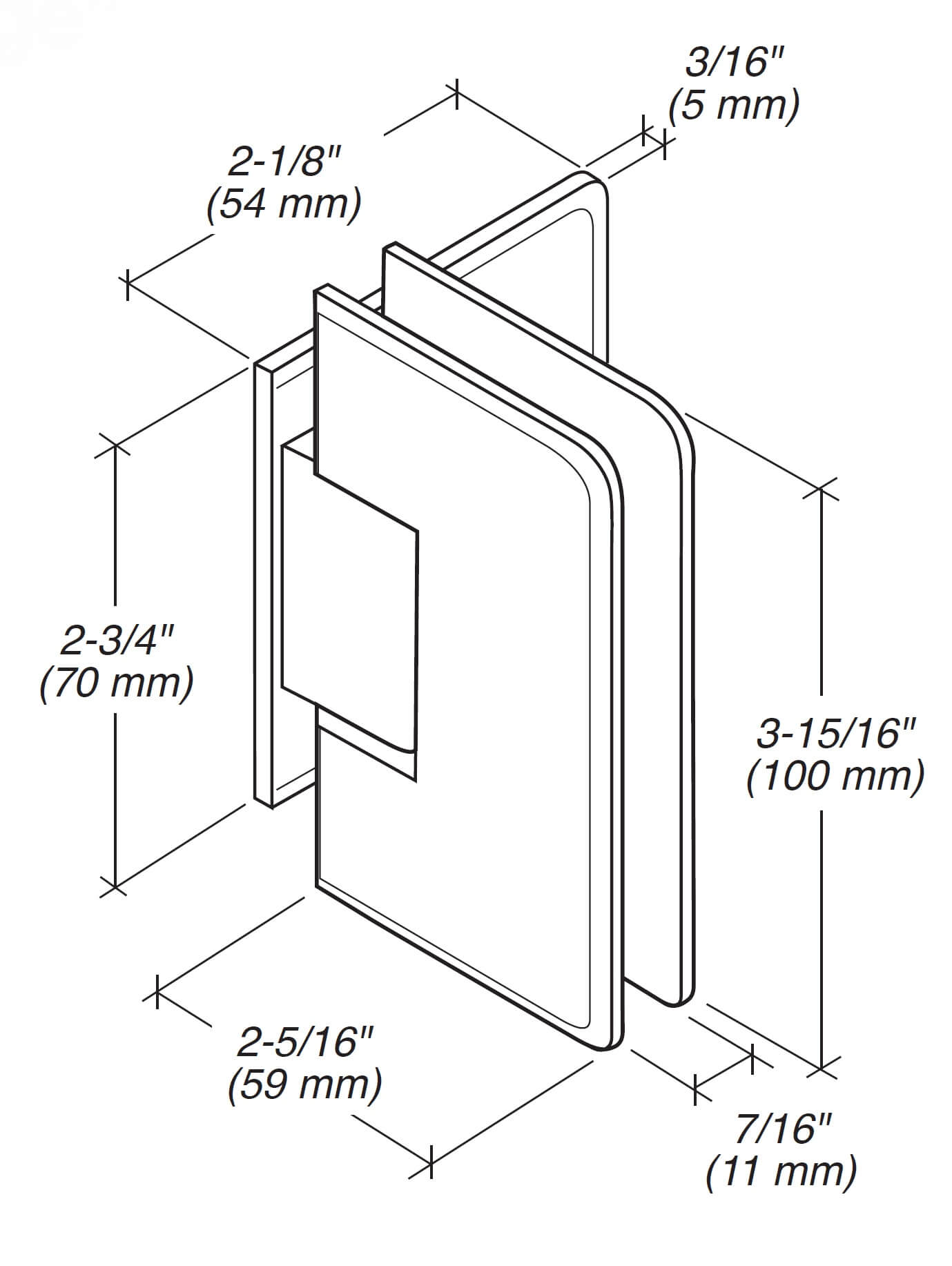

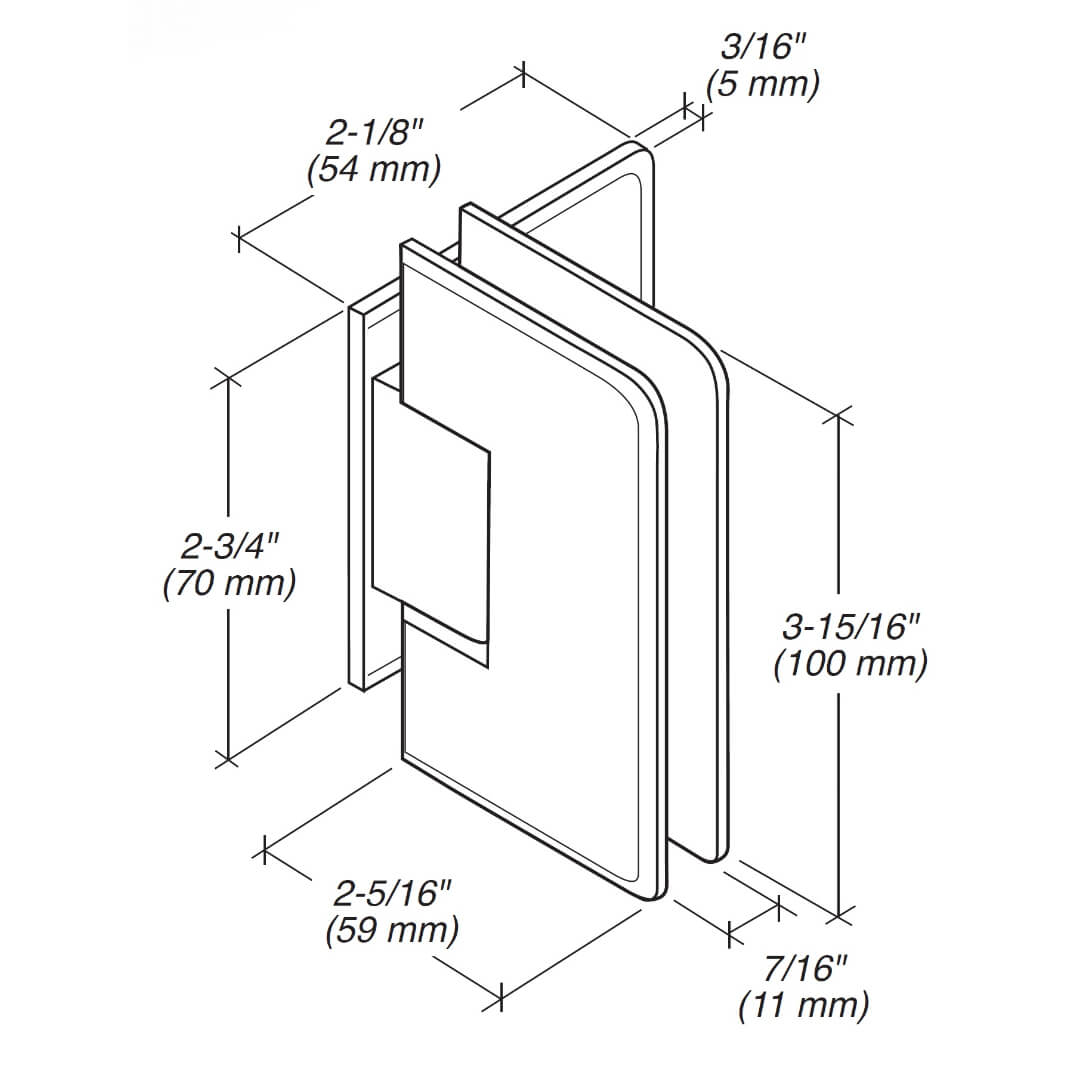

- Dimensions
-
Hinge Size2-5/16"
-
Hinge Thickness2-1/8"
-
Hinge Height3-15/16"
-
- Installation
-
Door TypeGlass Door
-
- Finishes
-

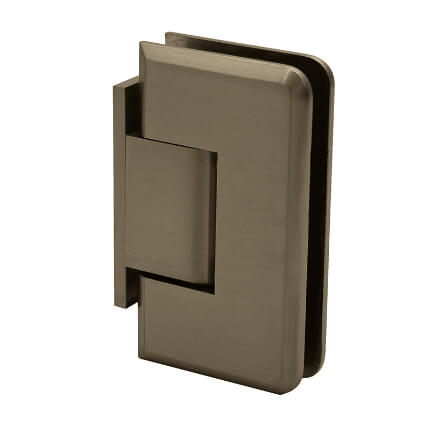

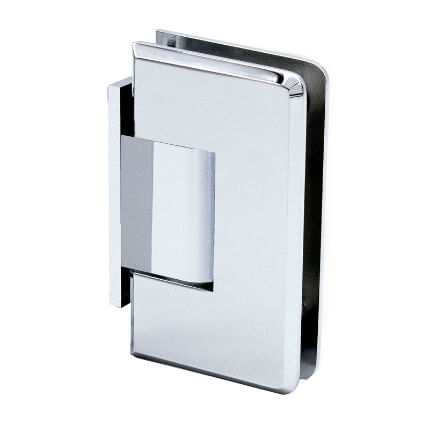

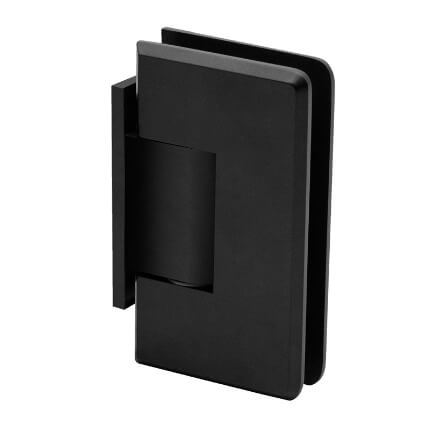

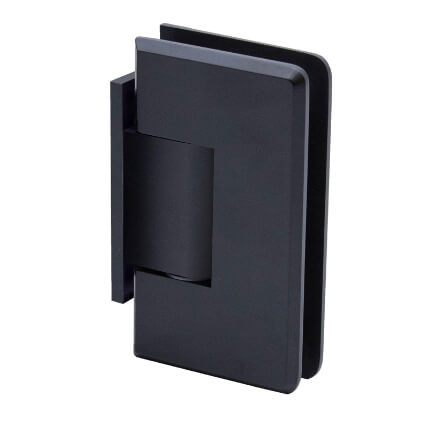

FinishSatin Nickel (US15), Polished Chrome (US26), Matte Black (BLK), Oil Rubbed Bronze (US10B), Satin Brass (US4), Polished Nickel (US14), Satin Bronze (US10)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
