Grass Tiomos Concealed Hinge, 94° Opening Angle, Half Overlay, Impresso, Soft-close

Grass Tiomos Concealed Hinge, 94° Opening Angle, Half Overlay, Impresso, Soft-close
Hafele

For small or light door cabinet hardware, 348.34.732, 94° Concealed Hinge from Grass Tiomos is the best choice. This kitchen cabinet hardware has improved kinematics reduces opening force and minimizes reveals. Because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9.

SOLD PER PIECE

See tabs below for additional information
    • SKU
      HF-348.34.732
    • Market price:$16.30
      • save 20%
    • Starting price: Price: $13.04 per item


    For small or light door cabinet hardware, 348.34.732, 94° Concealed Hinge from Grass Tiomos is the best choice. This kitchen cabinet hardware has improved kinematics reduces opening force and minimizes reveals. Because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9.

    SOLD PER PIECE

    Features :

    • For thick doors
    • Accommodates overlays up to 22 mm (7/8")
    • Optimal reveal up to 36 mm (1 7/16") door thickness
    • With soft closing mechanism integrated in hinge arm, with 3 settings
    • Optimum gap dimensions up to 28 mm door thickness
    • Side adjustment: ± 2 mm (1/16") with overturn stop
    • Depth adjustment: 2-3 mm
    • Height adjustment: ± 2.5 mm depending on the mounting plate
    • Crank Type: Cranked
    • Material: Steel

    Dimension:

    • Opening Angle: 94°

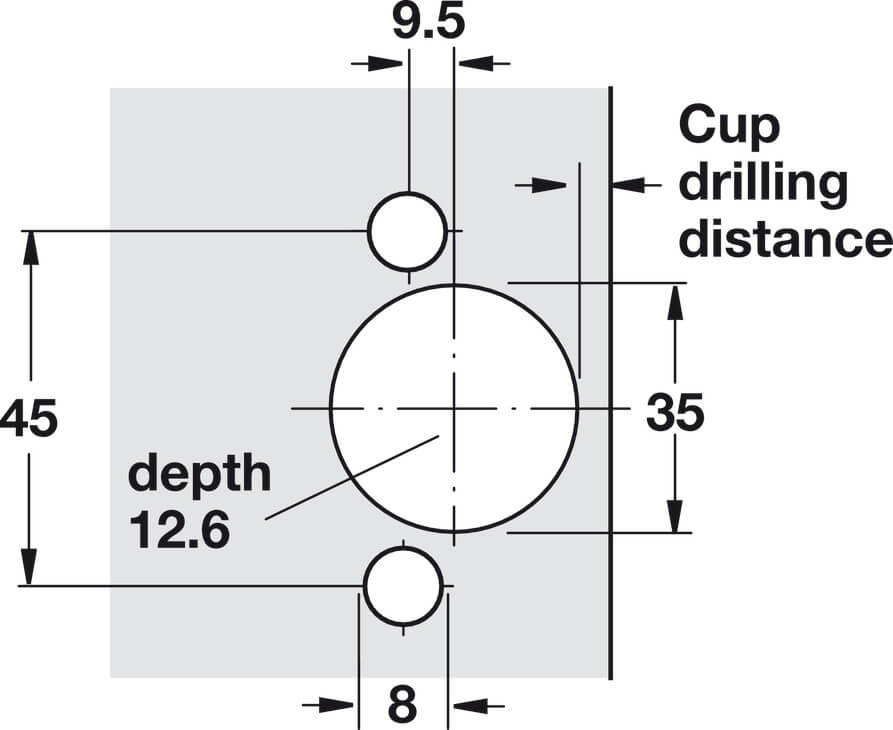

    • Cup Drilling Depth: 12.6 mm
    • Cup Drilling Diameter: 35 mm

    Note: Door overlay over 24 mm (15/16") possible, with side adjustment by ±2 mm (±1/16")

    SOLD PER PIECE

    This product has a lifetime limited warranty against defects in material and workmanship
    Click to view our     Full Warranty Policy.

    Click here to view Grass Tiomos Concealed Hinge, 94° Opening Angle, Half Overlay, Dowel, Soft-close

      • SKU
        HF-348.34.732
    • Mounting Method
      Impresso
    • Degree of Opening
      94°
    • Overlay Type
      Half Overlay
    • Cup Diameter
      35mm
    • Cup Depth:
      12.6mm
    • Closing Method
      Soft-close
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      348.34.732
    • Finishes
      • Finish
        Nickel Plated
    • Compliance Details
      • ANSI Designation
        ANSI/BHMA 156.9
      • Warranty
        Lifetime Limited Warranty

    Dowel_Impresso_2.jpgdril-04083509_2.jpgdril-04085511_2.jpgdimd-04114367.jpgmont-04376375.jpgdd_2.jpg
