Hettich Sensys Mounting Plate, Direct Height Adj, Expanding Sockets, 0mm Distance - QUICK SHIP

Hettich 9071655 Mounting Plate with Expanding Sockets
Hettich

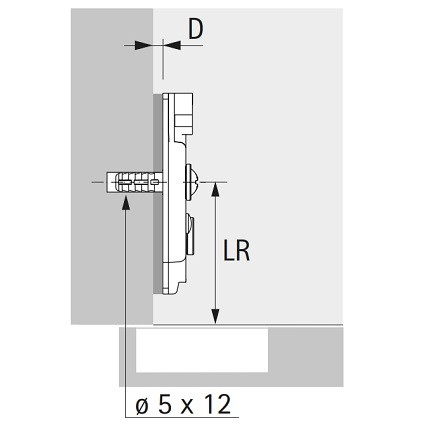

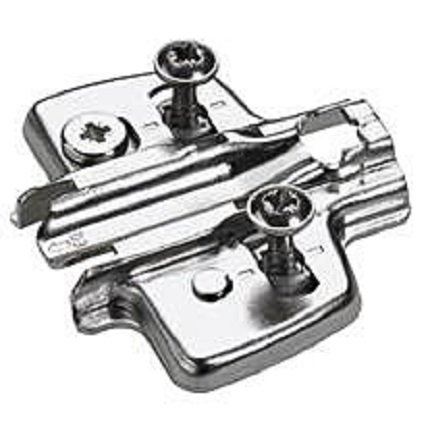

Hettich 9071655 Sensys wing type mounting plate for Hettich Sensys hinges has direct height adjustment integrated onto the mounting plate. 0mm offset is designed for full overlay applications. Easy installation with premounted expanding sockets, 5mm, for hole line 37 x 32mm.

PRICED PER PIECE

Compatible with Hettich Sensys 8645i Soft Close Hinge.

Buy more for less:
1-49 items $1.30 / each
50 or more items $1.17 / each save 10%
See tabs below for additional information
    • SKU
      HT9071655
    • Starting price: Price: $1.30 per item
    In stock (65 items available)


    Hettich 9071655 Sensys wing type mounting plate for Hettich Sensys hinges has direct height adjustment integrated onto the mounting plate.

    Click to view the full Hettich Sensys Catalog.

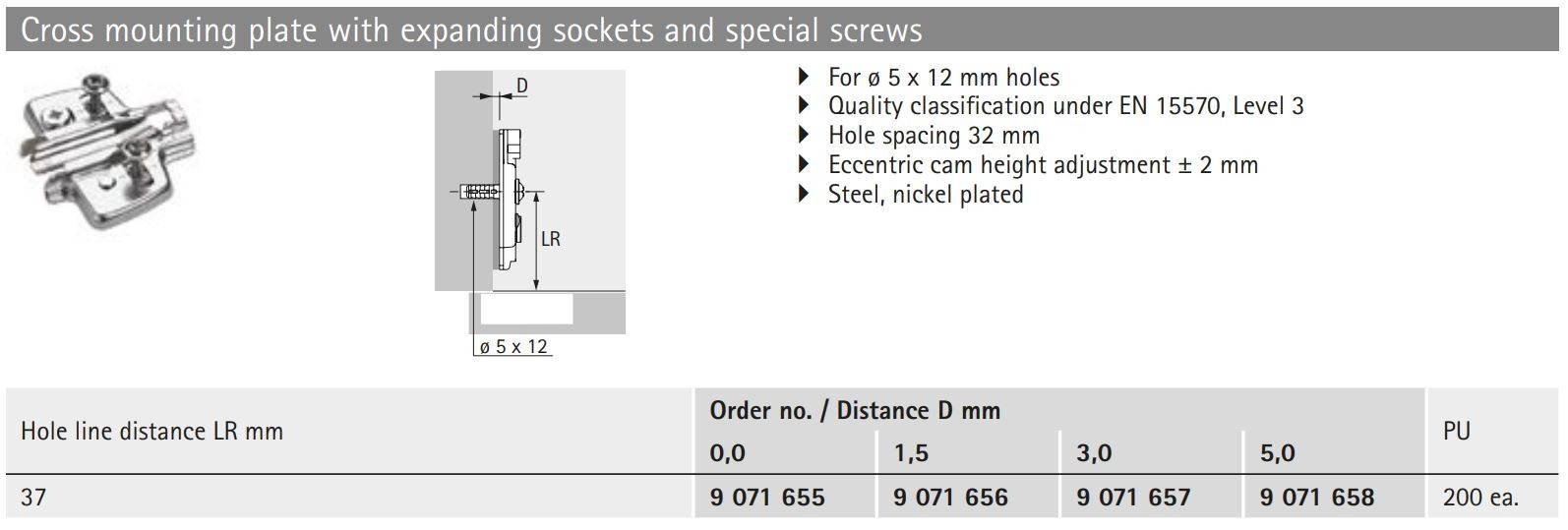

    Features and Benefits:

    • Cross mounting plate with direct height adjustment
    • For all Sensys and Intermat hinges
    • Quality classification under EN 15570, Level 3

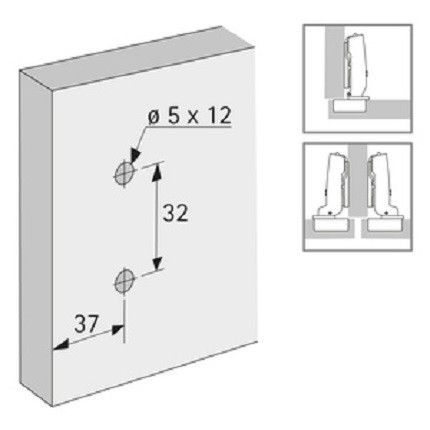

    • For Hole line 37 x 32 mm
    • Installation with expanding sockets (for drilling ø 5 x 12 mm)
    • Distance 0.0 mm, Full Overlay Application
    • Adjustment range + 2 mm / - 2 mm
    • Steel Nickel plated

    About Height Adjustment: Cam adjustment is fully integrated into the mounting plate, and does not require the plate to be loosened during adjustments.

    About Expanding Sockets: The expanding dowels prevent damage and stripping of the 5mm hole and reduces the chance of damaging melamine faces if removal of the plate is necessary. The expanding dowel also makes for more ergonomic installation as the dowel holds the plate in place, freeing up a hand, to align the screwdriver bit to the screw head.

    PRICED PER PEICE

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

      • SKU
        HT9071655
    • QuickShip
      Yes
    • Manufacturer
      Hettich

    Hettich 9071655 Mounting Plate Product Specs
