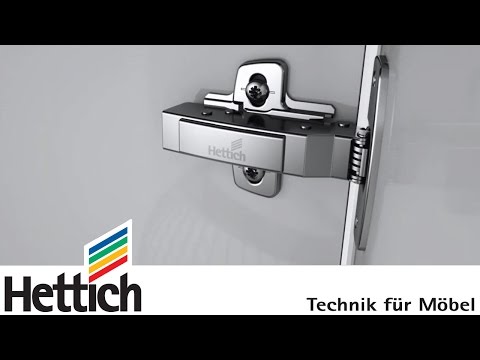

Hettich Sensys 8645i Series, Soft Closing Hinge, Full Overlay, 110° Opening, Screw In TB52 - QUICK SHIP

Hettich #9071223 is part of the Sensys 8645i Series. It is a Soft Close Integrated Hinge for Full Overlay Application, 110° Opening Angle. Compatible with TB 52 Drilling Pattern, with screw on application. See below for additional details.

PRICED PER PIECE

Mounting Plate is required, not included. For compatible mounting plate, see our Hettich #9071655  Mounting Plate.

Buy more for less:
1-49 items $5.64 / each
50 or more items $5.08 / each save 10%
See tabs below for additional information
    • SKU
      HT9071223
    • Starting price: Price: $5.64 per item
    In stock (49 items available)


    Click to view the full Hettich Sensys Catalog.

    Hettich Sensys 8645i Soft Closing Hinge Key Features:

    • Opening Angle: Opens up to 110° angle.
    • Integrated Silent System, with self closing feature
    • Quality Classification: EN 15570, Level 3
    • Steel nickel plated
    • Cover Plate NOT Included

    Installation:

    • Door Thickness: 15 - 24 mm
    • Mounting Type: Full Overlay
    • Drilling pattern TB 52: 45 x 9,5 mm, see specs
    • Cup depth 12.8 mm
    • Screw on installation, screws not included

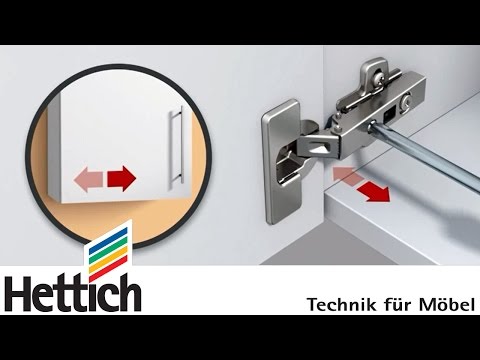

    • Integrated overlay adjustment +2 mm / -2 mm
    • Integrated depth adjustment +3 mm / -2 mm
    • Height adjustment at mounting plate

    Mounting Plate:

    Benefits:

    • The Silent System is designed for perfect operation across an exceptionally wide temperature range from +5°C to +40°C.
    • On large cabinet doors, the best in class performance you get with Sensys pays particular dividends: compared to other hinges, you often need one or two Sensys hinges less to obtain constant Silent System excellence.
    • The Sensys hinge's Silent System always closes any door gently and reliably. Whether small or light, large or heavy. The exceptionally wide automatic closing angle of 35° effortlessly slows down heavy
       doors even when closed with a hard push.
    • The fast release button is elegantly concealed by the hinge arm. This reliably prevents the door from being released unintentionally.
    • Tool-less clip on assembly means hinge and mounting plate can be put together in almost record breaking time. Direct adjustment of gap alignment also saves a lot of time.

    PRICED PER PIECE

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

      • SKU
        HT9071223
    • QuickShip
      Yes
    • Manufacturer
      Hettich
    • MPN
      9071223; 9071224; 9071225; 9071226; 9071227; 9071228; 9071238; 9071239; 9071240
