Hafele EKU Combino 60H Mixslide, Bottom Running Overlay By-Pass Doors, Top Guide Inset, 132 LB Doors
Hafele EKU Combino 60H Mixslide hardware is bottom running, by-pass double door installed in overlay position with top guide channel mortised in an inset position. Can accomodate doors up to 132LB, with a height up to 94-1/2".
Note: Additional tracks are required to complete the set, see below.
See full product details and specs in tabs below
PRICED PER SET
EKU Combino Series is a Swiss made sliding solutions, ensuring top-of-the-line, quality hardware. Click here to view the EKU Combino 60, Mixslide Catalog.

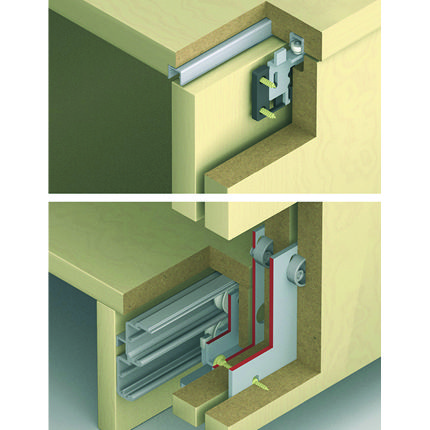

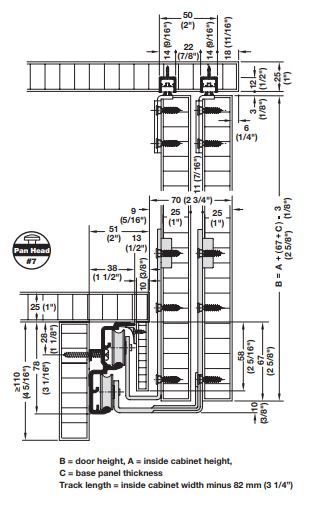

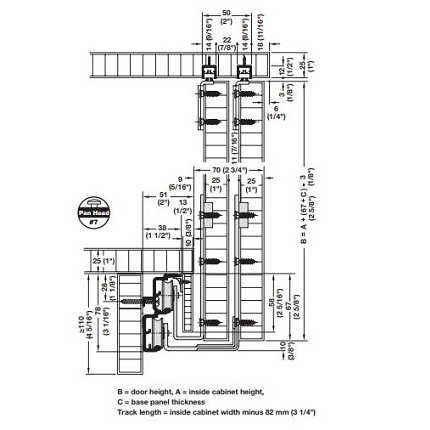

Application: Hardware is bottom running, by-pass double door installed in overlay position with top guide channel mortised in an inset position.
Door Dimension:
- Max Door Weight: Up to 132 lbs (60 kg)
- Maximum Door Height: 7' 10 1/2" (2400 mm)
- Maximum Door Width: 4' 7-1/8" (1400 mm)
- Door Thickness: 1” (25 mm)

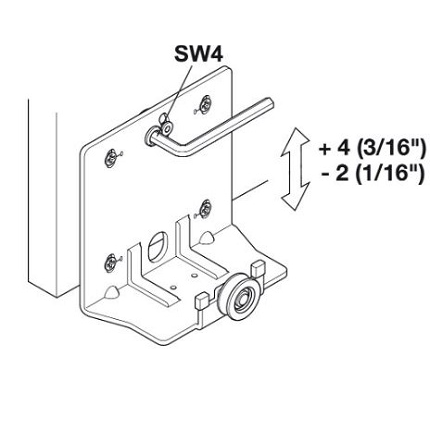

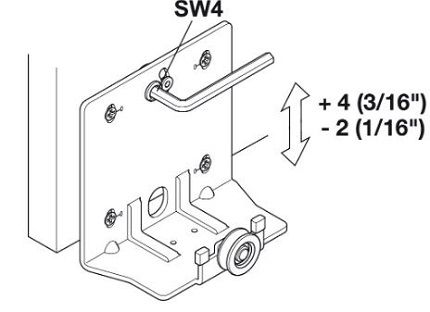

Height Adjustment: +3/16" / -1/6" (+4/-2 mm)
Supplied with:

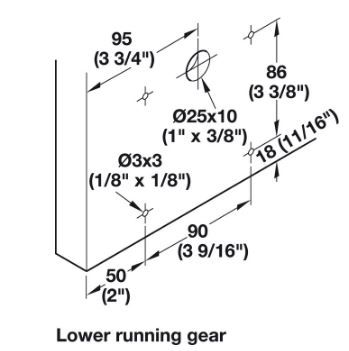

- 4 Running Gears (2 outer/2 inner)

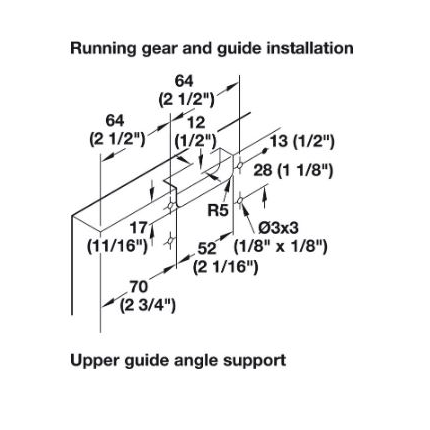

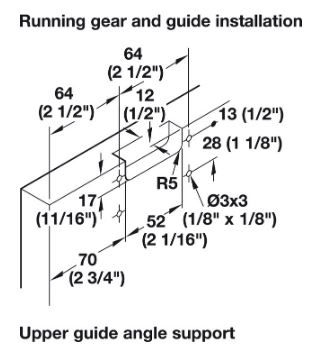

- 4 Upper Guide Angle Support
- 4 Upper Housings for Guide Angle Support
- 4 Track Stops
- 2 Retention for Stop Track
- 4 Anti-derailment Button
- 4 Locking Devices
- 1 Door Follower
- 6 Clips for Fascias
- 3 Track End Pieces
- Installation Screws
Additional Required Products: The following products are required. Please order separately.

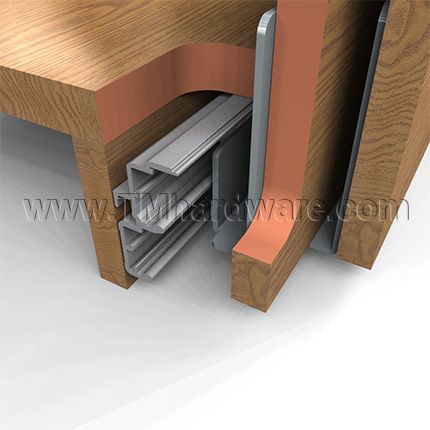

- Hafele #401.58.926 - Double Running Lower Track
- Hafele #405.30.026 - Single Upper Guide Track
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
Click here to view the Hafele EKU Combino 60 H Foreslide Set.
