Hafele EKU Combino L 40 System, For By-Pass Angled Wood Doors, 88 LB Doors
Hafele EKU Combino L 40 By-Pass Sliding System is designed for one angled wood sliding doors, weighing up to 88 Lbs. Hardware is bottom running. Great for home entertainment applications, can be used to hide large flat screen TVs.
Note: Additional tracks and optional hardware are required to complete the set, see below.
PRICED PER SET
EKU Combino Series is a Swiss made sliding solutions, ensuring top-of-the-line, quality hardware. Click here to view the EKU Combino L 40 Catalog.

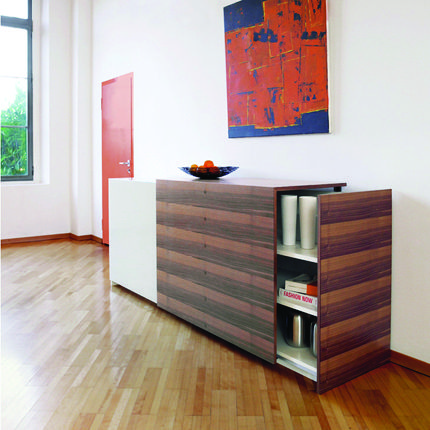

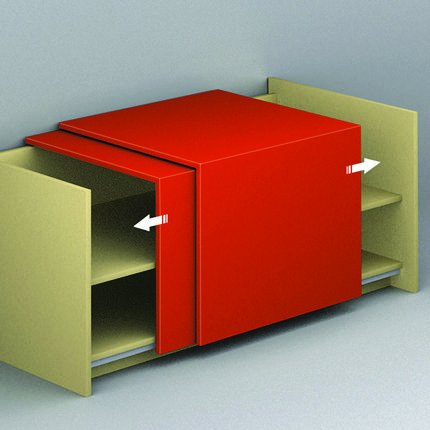

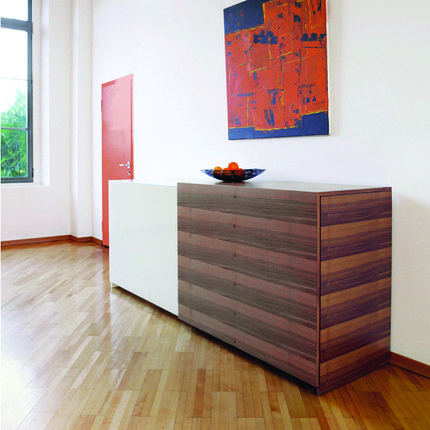

Application: For one angled wood sliding doors with bottom running hardware. Great for home entertainment applications, such as hiding large flat screen TVs.
Order Reference: The following products are required. Please order separately.

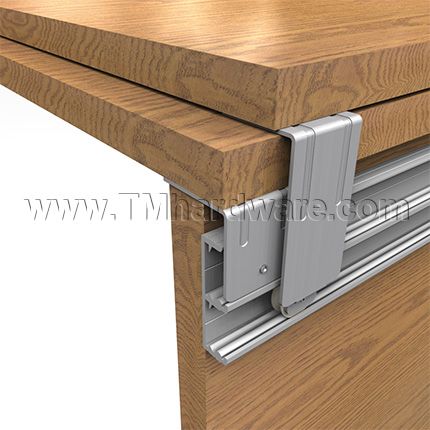

- Hafele #403.32.926: Double Bottom Running Track

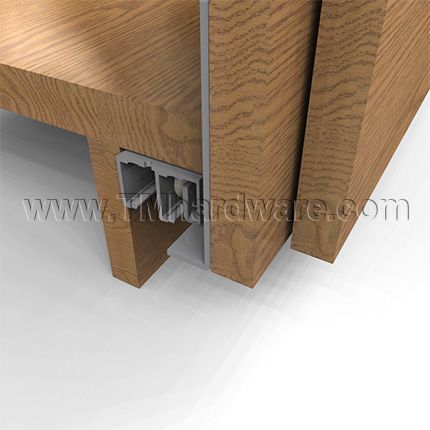

- Hafele #403.33.926: Double Guide Track
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
Click here to view the Hafele EKU Combino 60 H Inslide Set.
-
QuickShipNo
-
ManufacturerHawa / EKU Sliding Solutions
-
MPN403.31.000
- About This Product
-
Door TypeSingle Door
-
Door MaterialWood Doors
-
System TypeBypass
-
Included PartsRunning Gears (2 ea.)
Guides (2 ea.)
Door Stoppers (4 ea. – 2 with clip-in door stopper, 2 stoppers)
-
- Dimensions
-
Height Adjustment+3/16” / -1/6” (+4 / -2 mm) on Running Gear (Eccentric Height Adjustment)
-
Door Depth2’ 3-9/16” (700 mm) maximum
-
Depth Adjustment1/8” (+3 mm) on Running Gear (Eccentric Depth Adjustment)
-
Door Panel WeightUp to 88 lbs (40 kg)
-
Door Width4’ 11-1/16” (1500 mm) maximum
-
Door Thickness¾” (19 mm) thick
-
Door Height4’ 11-1/16” (1500 mm) maximum
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
